P 21850Q (2691612-00) - Snapper 21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs Deck & Engine Group Parts Diagram

21" Walk-Behind Mower, 3-N-1 Self-Propelled, 850 Series Briggs

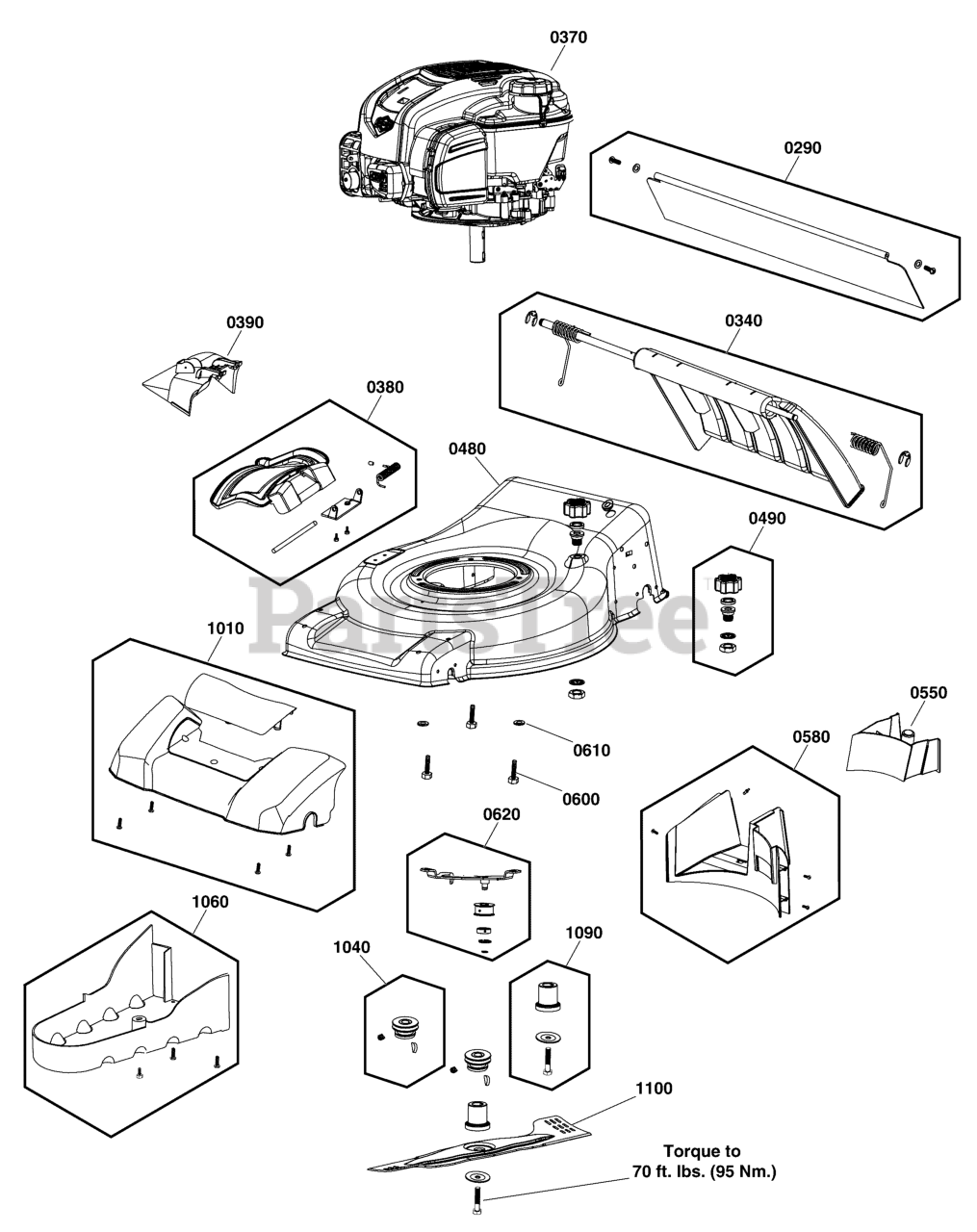

Deck & Engine Group Parts Diagram

  • Title

0290

Snapper 84002842

COVER, Dust

$30.99

$

Usually ships in 2-12 days

0

0340

Snapper 84002851

KIT, Deflector, Rear

$57.99

$

Usually ships in 2-12 days

0

0370

Snapper 123P02-0080-F1

*ENGINE

Note: (Refer to Note: *)

$

$

Currently unavailable

0380

Snapper 84002852

KIT, Deflector

$34.99

$

In Stock, only 3 left!

0

0390

Snapper 707312

CHUTE, Side Discharge

$37.99

$

Usually ships in 2-12 days

0

0480

DECK

Note: (Not a serviceable part.)

$

$

Not available

0490

Snapper 84002854

KIT, Washout Port

$8.49

$

Usually ships in 2-12 days

0

0550

Snapper 84002859

PLUG, Mulch

$31.99

$

Usually ships in 2-12 days

0

0580

Snapper 84002882

KIT, Baffle Assembly

$48.99

$

Usually ships in 2-12 days

0

0600

SCREW, Engine Mount

$

$

Not available

0610

WASHER

$

$

Not available

0620

Snapper 84002899

KIT, Idler Traction Drive

$28.99

$

Usually ships in 2-12 days

0

1010

Snapper 84002855

KIT, Cover, Axle

$65.99

$

Usually ships in 2-12 days

0

1040

Snapper 84002899

KIT, Idler Traction Drive

$28.99

$

Usually ships in 2-12 days

0

1060

Snapper 84003511

KIT, Belt Cover

$

$

Currently unavailable

1090

Snapper 84002863

KIT, Blade Adapter

$29.99

$

In Stock, only 3 left!

0

1100

Snapper 84002861

BLADE, Mower

$45.99

$

In Stock, only 1 left!

0
