PB-265 L - Echo Backpack Blower (SN: 09001001 - 09999999) Fuel System Parts Diagram

Backpack Blower

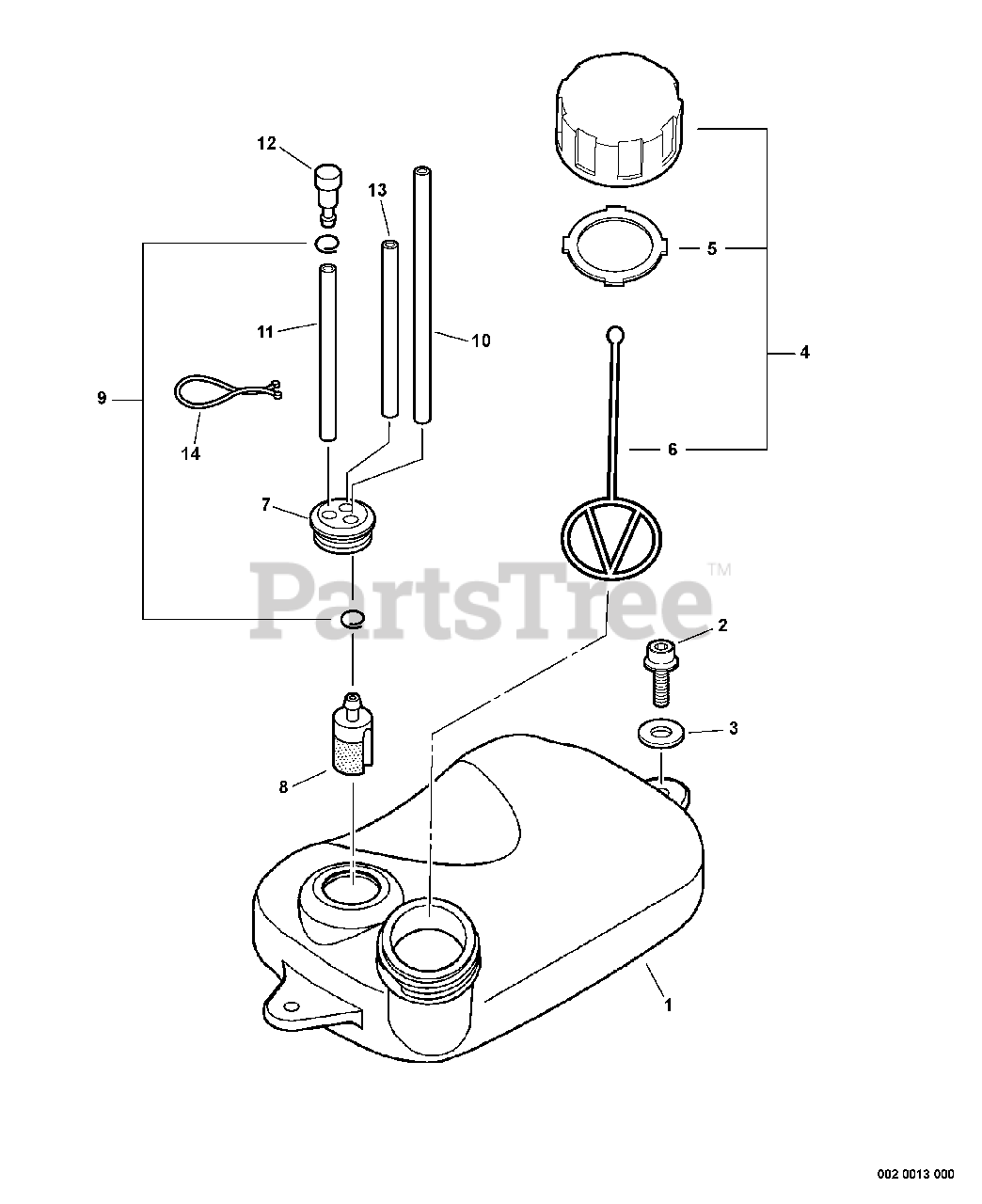

Fuel System Parts Diagram

  • Title

1

Echo A350000470

TANK, FUEL
(Superseded to A350000560)

$14.99

$

In Stock, only 2 left!

0

2

Echo 9114705020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

3

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 10

0

4

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

$6.49

$

In Stock, Qty 20+

0

5

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

6

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

7

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

11

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

13

Echo V471003000

PIPE, RETURN - 3X6X120

Note: RePower BULK OPTION: 90017

$1.49

$

In Stock, Qty 20+

0

14

Echo 13201305060

CLIP

$

$

Not available
