PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Flywheel, Ignition, Starter Parts Diagram

Backpack Blower

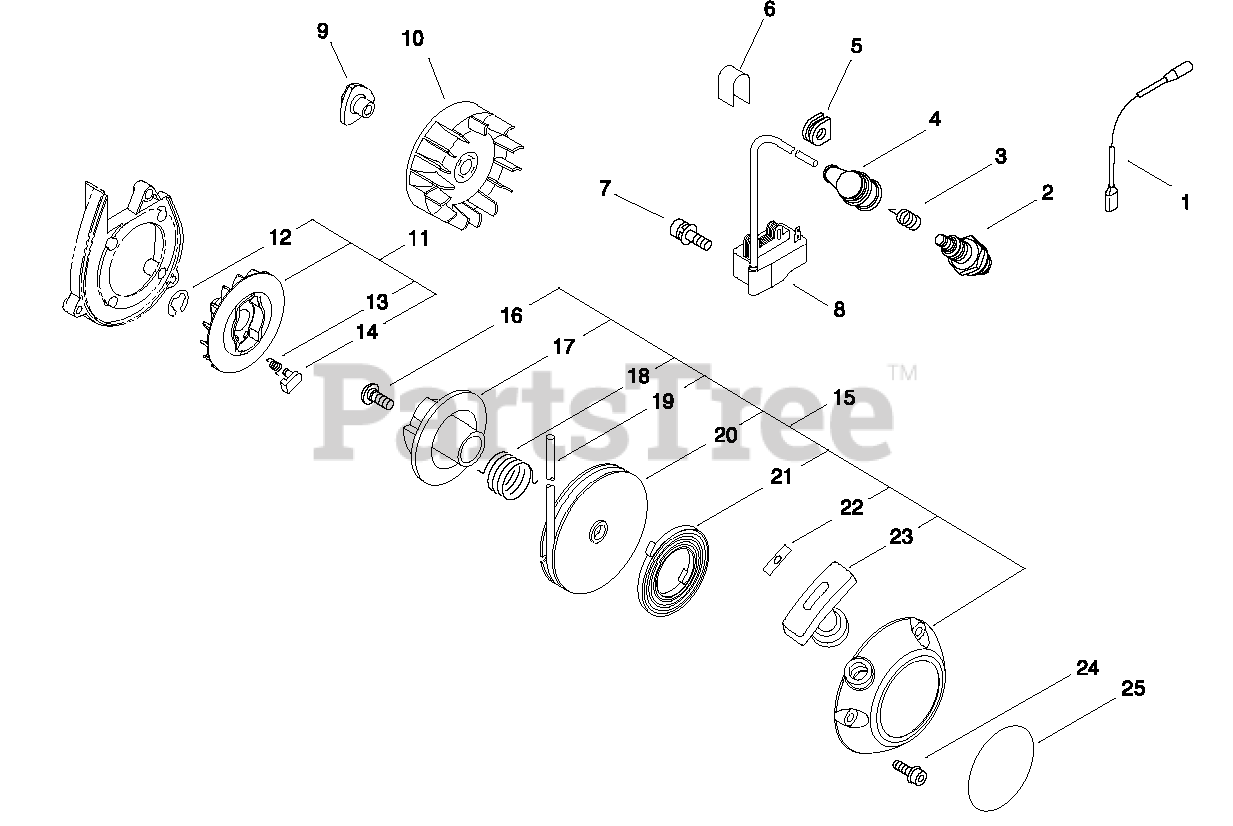

Flywheel, Ignition, Starter Parts Diagram

  • Title

1

Echo V485000740

LEAD - IGNITION

$2.49

$

Usually ships in 2-4 days

0

2

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

3

Echo A426000010

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo A427000013

CAP, SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

5

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

6

Echo X532000671

LABEL - SPARK PLUG -- BPM-8Y

$0.99

$

In Stock, Qty 20+

0

7

Echo 9111304020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

8

Echo A411000290

COIL, IGNITION
(Superseded to A411000291)

$98.99

$

In Stock, Qty 20+

0

9

Echo E101000122

HUB, FAN

$7.99

$

In Stock, only 2 left!

0

10

Echo A409000210

FLYWHEEL

$54.99

$

In Stock, Qty 17

0

11

Echo A052000250

STARTER PAWL ASSY

$14.99

$

In Stock, only 1 left!

0

12

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo V452000280

SPRING
(Superseded to P022006510)

$3.99

$

In Stock, Qty 20+

0

14

Echo A514000070

PAWL, STARTER
(Superseded to P022006850)

$3.49

$

In Stock, only 3 left!

0

15

Echo A051002720

STARTER ASSY

$62.99

$

In Stock, Qty 5

0

16

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 19

0

17

Echo P022028000

PLATE, CAM

$3.99

$

In Stock, Qty 20+

0

18

Echo P022008270

SPRING,DAMPER

$8.99

$

In Stock, Qty 20+

0

19

Echo P022008260

ROPE

$

$

Not available

20

Echo P022027980

REEL, ROPE

$6.49

$

In Stock, Qty 14

0

21

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

22

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 8

0

23

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

24

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 11

0

25

Echo X502000330

LABEL - ECHO

$0.99

$

In Stock, Qty 20+

0
