PB-265 LN - Echo Backpack Blower (SN: P38426001001 - P38426999999) Handle, Switch Parts Diagram

Backpack Blower

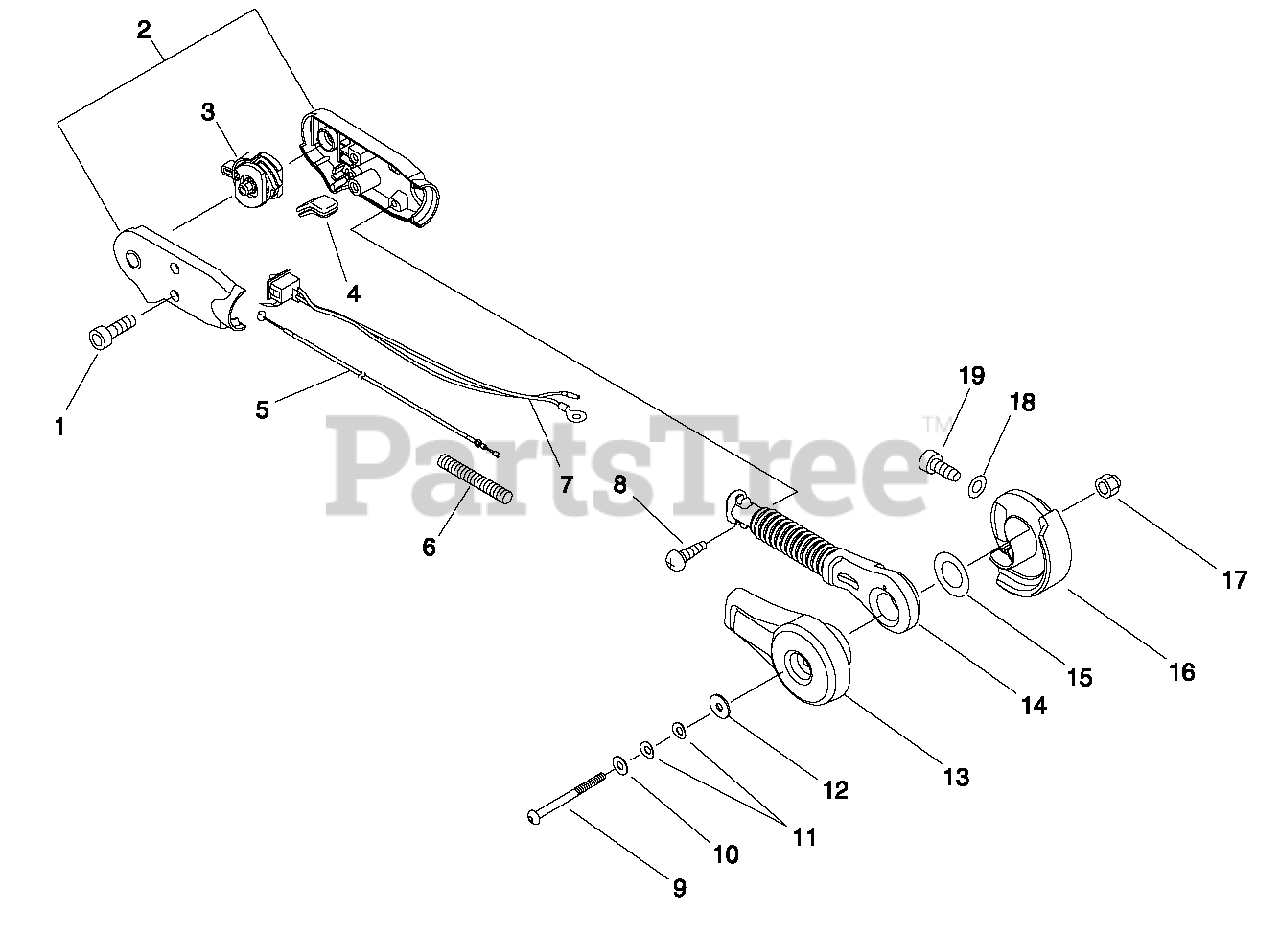

Handle, Switch Parts Diagram

  • Title

1

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

2

Echo P021014672

CONTROL HANDLE KIT
(Superseded to P021014673)

$5.49

$

In Stock, Qty 6

0

3

Echo C470000161

THROTTLE CONTROL ASSY
(Superseded to C470000162)

$7.99

$

In Stock, Qty 10

0

4

Echo V144000181

PLUG

$2.49

$

In Stock, Qty 10

0

5

Echo V430001760

CABLE, THROTTLE

$10.99

$

In Stock, only 3 left!

0

6

Echo V475003820

TUBE, PROTECTIVE - CORRUGATED

$4.99

$

Usually ships in 2-4 days

0

7

Echo A045000141

SWITCH, IGNITION

$

$

Not available

8

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

9

Echo V204000150

BOLT - 6

$1.99

$

Usually ships in 2-4 days

0

10

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

11

Echo 17816021060

WASHER - SPRING

$0.99

$

In Stock, Qty 10

0

12

Echo V304000040

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo C472000050

BRACKET, ARM - OUTER
(Superseded to C472000051)

$2.99

$

In Stock, only 2 left!

0

14

Echo C456000050

ARM, THROTTLE CONTROL

$8.49

$

In Stock, Qty 20+

0

15

Echo V336000000

WASHER

$1.99

$

In Stock, Qty 6

0

16

Echo C472000041

BRACKET, ARM - INNER

$2.99

$

Usually ships in 2-4 days

0

17

Echo 90056250006

LOCKNUT - 6

$1.49

$

Usually ships in 2-4 days

0

18

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 10

0

19

Echo 9114505025

SCREW - 5X25 -- TAPPING

$0.99

$

In Stock, Qty 6

0
