PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Engine, Engine Cover Parts Diagram

Backpack Blower (Type 1E)

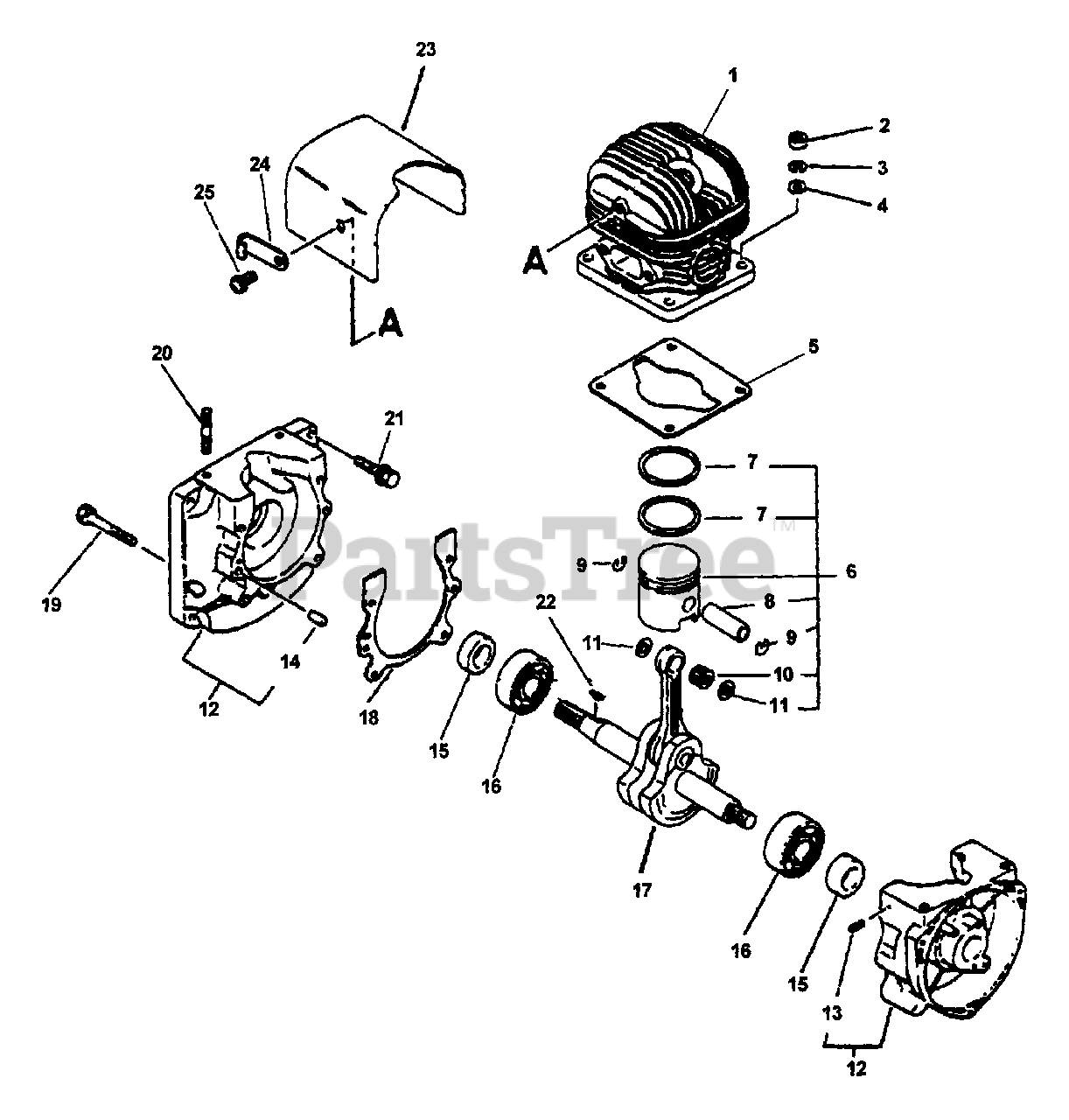

Engine, Engine Cover Parts Diagram

  • Title

1

Echo 10100000763

CYLINDER
(Superseded to 10100101110)

$175.99

$

Usually ships in 2-4 days

0

2

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 17

0

4

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

5

Echo 10101000760

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

6

Echo 10000002411

PISTON KIT
(Superseded to 10000002412)

Note: INCLUDES ITEMS 7-11

$

$

Not available

7

Echo 10001101110

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

8

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

10

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 11

0

11

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0

12

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes ITEMS 13-14

$

$

Not available

13

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

14

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

16

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

17

Echo 10010001111

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

18

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT 88900002263

$

$

Not available

19

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0

20

Echo 10025400130

STUD

$1.49

$

Usually ships in 2-4 days

0

21

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 8

0

22

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

23

Echo 10151401110

SHIELD, CYLINDER

$8.99

$

Usually ships in 2-4 days

0

24

Echo 15911001110

CLAMP

$1.49

$

Usually ships in 2-4 days

0

25

Echo 90014006010

BOLT - 6X10

$0.99

$

Usually ships in 2-4 days

0

Echo SB1038

SHORT BLOCK -- SB1038

$324.99

$

Usually ships in 2-4 days

0

Echo 88900002263

GASKET KIT
(Superseded to 88900002264)

Note: ENGINE REPOWER

$

$

Not available

------------------

GASKET, CRANKCASE

Note: ENGINE REPOWER

$

$

Not available

Echo 10101000760

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

Echo 10061501110

GASKET, STARTER

Note: ENGINE REPOWER

$1.49

$

In Stock, only 2 left!

0

Echo 13001000762

GASKET, INTAKE
(Superseded to 13001000763)

Note: ENGINE REPOWER

$1.49

$

In Stock, Qty 20+

0

Echo 13001606232

GASKET, INTAKE

Note: ENGINE REPOWER

$0.99

$

In Stock, Qty 20+

0

Echo 14551002261

GASKET, EXHAUST

Note: ENGINE REPOWER

$13.99

$

Usually ships in 2-4 days

0

Echo 14586602261

GASKET, EXHAUST

Note: ENGINE REPOWER

$2.99

$

In Stock, only 1 left!

0

Echo 13001600760

GASKET, INTAKE
(Superseded to Discontinued)

Note: ENGINE REPOWER

$

$

Not available
