PB-755 - Echo Backpack Blower (SN: P38526001001 - P38526999999) Intake Parts Diagram

Backpack Blower

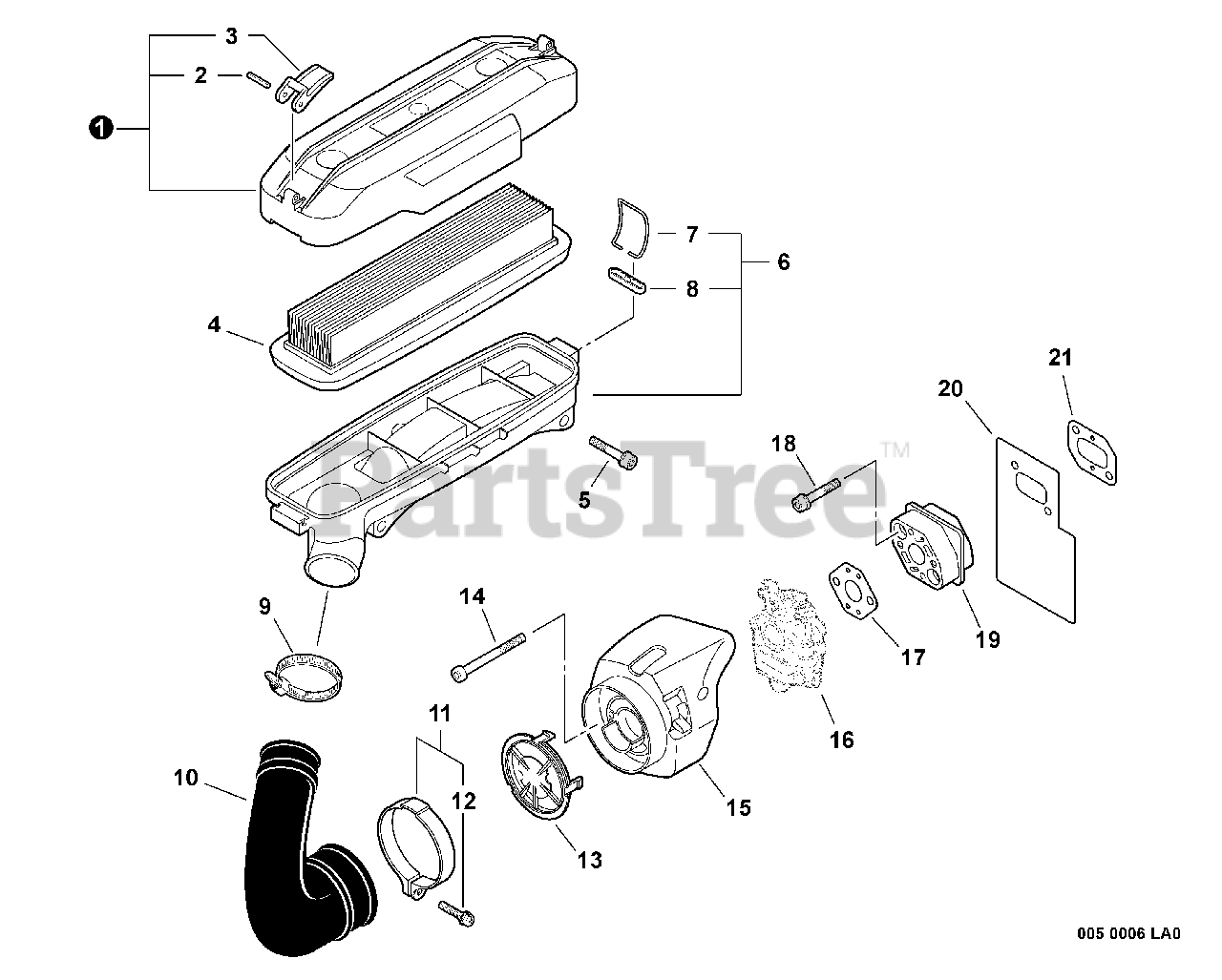

Intake Parts Diagram

  • Title

1

Echo A232000170

COVER, AIR FILTER

Note: Includes ITEMS 2-3

$13.99

$

In Stock, only 1 left!

0

2

Echo 90034530025

PIN - SPRING -- 3X25

$1.99

$

In Stock, only 2 left!

0

3

Echo 13034108260

LATCH

$4.49

$

In Stock, only 2 left!

0

4

Echo 13030508361

FILTER, AIR

$13.99

$

In Stock, Qty 20+

0

5

Echo 90010605035

SCREW - 5X35

$1.49

$

In Stock, Qty 20+

0

6

Echo P021014460

AIR FILTER CASE ASSY

Note: Includes ITEMS 7-8

$13.99

$

In Stock, only 1 left!

0

7

Echo 13103208360

RING, RETAINING

$2.99

$

In Stock, Qty 13

0

8

Echo V491000220

RETAINER

$0.99

$

In Stock, Qty 20+

0

9

Echo V495000590

CLAMP, HOSE

$2.49

$

In Stock, only 3 left!

0

10

Echo A239000010

PIPE - INTAKE

$16.99

$

In Stock, only 4 left!

0

11

Echo P021043140

CLAMP KIT

Note: Includes ITEM 12

$7.49

$

In Stock, Qty 12

0

12

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo A244000060

PLATE, PREVENT

$2.49

$

In Stock, Qty 9

0

14

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

15

Echo P021005690

AIR FILTER CASE ASSY

$13.99

$

Usually ships in 2-4 days

0

16

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

17

Echo V103000080

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

18

Echo 90010605025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

19

Echo A200000070

INSULATOR, INTAKE
(Superseded to A200000071)

$13.99

$

In Stock, Qty 12

0

20

Echo V103000130

SHIELD, INTAKE

$3.49

$

In Stock, Qty 20+

0

21

Echo V103000140

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0
