PB GT 26H54 (960420111-01) - Poulan Pro Garden Tractor (2010-04) Chassis Parts Diagram

Lawn Tractor

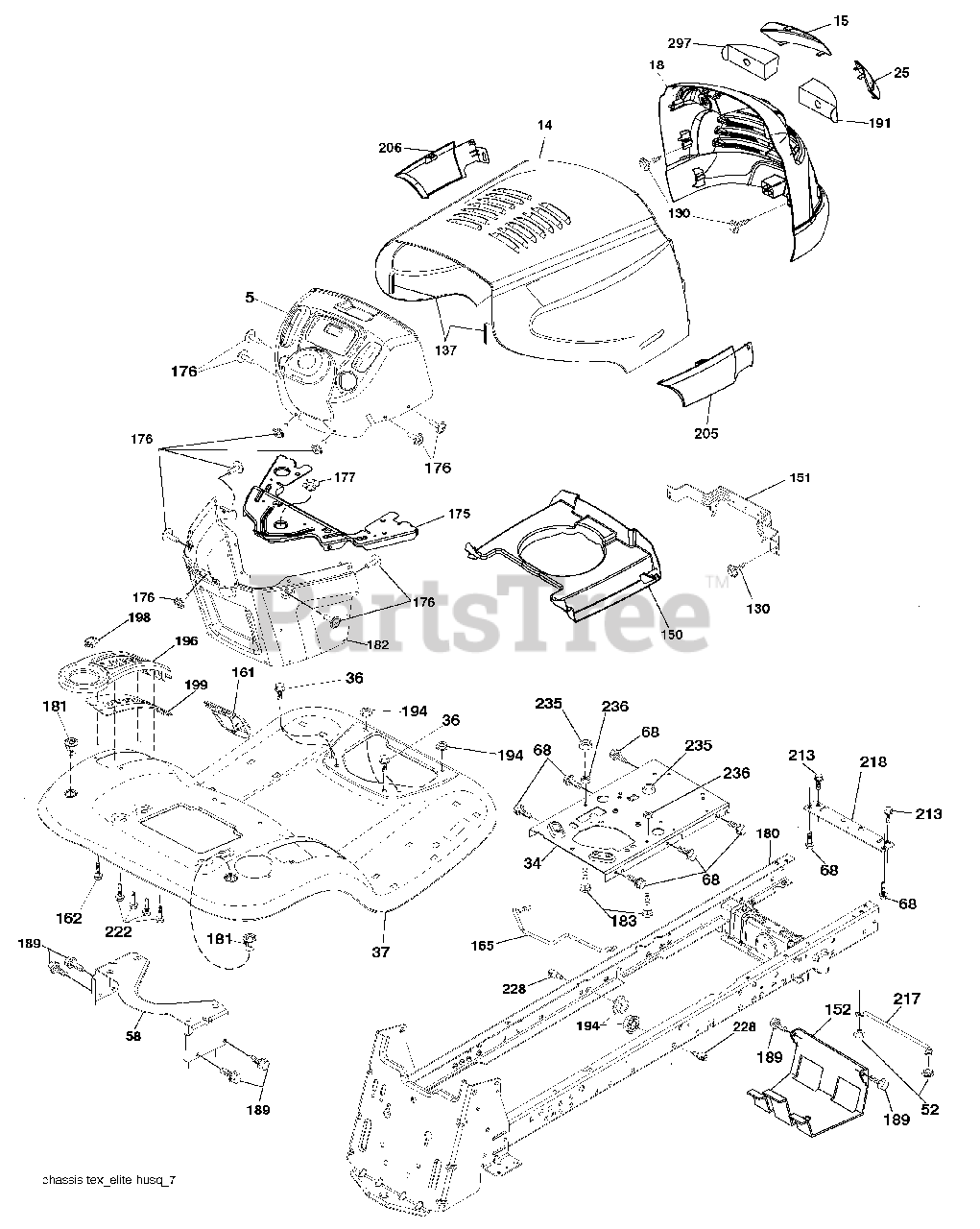

Chassis Parts Diagram

  • Title

5

Electrolux/AYP 199648X428

Dash
(Superseded to 583728001)

$47.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 425404X421

Hood
(Superseded to 532436382)

$133.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 188264X599

Lens Grille LH
(Superseded to 532188264)

$18.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 430395X428

Grille
(Superseded to 532432779)

$72.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 188263X599

Lens Grille RH
(Superseded to 532188263)

$18.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 196125

Plate Engine
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 400009X421

Fender

$118.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 194314

Fender Support Bracket
(Superseded to 532194314)

$27.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw THDROL 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 416358

Screw #10 x 0.750 BOS Thread
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

137

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 10

0

150

Electrolux/AYP 431632

Duct Heat Hood
(Superseded to 532431632)

$42.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 407807

Bracket Pivot
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 199535

Shield Browning/Debris

$

$

Not available

161

Electrolux/AYP 193097X428

Window Fuel
(Superseded to 532411879)

$8.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 196826

Support Tank Rear
(Superseded to 532196826)

$24.99

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$11.99

$

In Stock, Qty 5

0

177

Electrolux/AYP 195227

Bushing Steering
(Superseded to 532195227)

$6.49

$

In Stock, Qty 20+

0

180

Electrolux/AYP 195477

Chassis
(Superseded to 582033001)

$265.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 193057

Dash Lower
(Superseded to 532193057)

$91.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74520520

Bolt Full Thd. 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Electrolux/AYP 416500

Insert Lens Reflective RH

$

$

Not available

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Electrolux/AYP 196379X428

Console Asm. Deck Lift

$

$

Not available

198

Electrolux/AYP 197300X505

Indicator Deck Lift
(Superseded to 532411881)

$15.99

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 196377

Plate Deck Lift
(Superseded to 532196377)

$24.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 188265X428

Skirt Side RH

$

$

Not available

206

Electrolux/AYP 188266X428

Skirt Side LH

$7.99

$

Usually ships in 3-10 days

0

213

Electrolux/AYP 74760512

Bolt Hex HD 5/16-18 unc x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

218

Electrolux/AYP 196395

X-Piece Hood
(Superseded to 532196395)

$4.99

$

Usually ships in 3-10 days

0

217

Electrolux/AYP 409167

Rod Pivot
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

222

Electrolux/AYP 137729

Screw Thd. Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

228

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

235

Electrolux/AYP 406129

Spacer Fender
(Superseded to 532406129)

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 73930500

Nut Center Lock 5/16-18 unc
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

297

Electrolux/AYP 188267

Insert Lens Reflective LH
(Superseded to 532188267)

$10.99

$

Usually ships in 3-10 days

0

297

Electrolux/AYP 400796X428

Plug Cruise Hook Phone
(Superseded to 532432781)

$4.99

$

Usually ships in 3-10 days

0
