PBC 4000 (UT-15069-A) - Homelite String Trimmer Handles And Guard Assmbl. Parts Diagram

String Trimmer

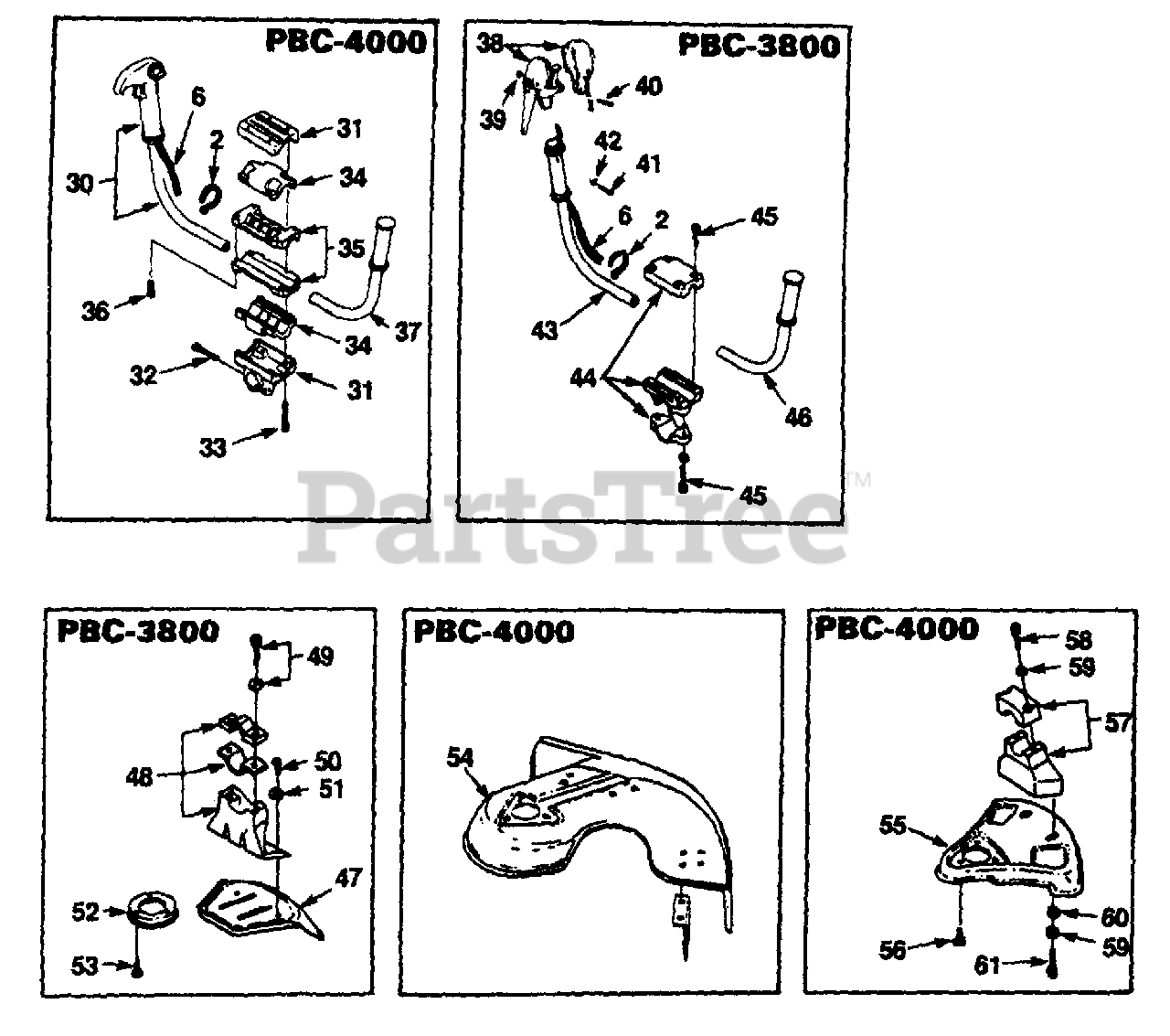

Handles And Guard Assmbl. Parts Diagram

  • Title

2

UNKNOWN

$

$

Not available

6

UNKNOWN

$

$

Not available

30

Homelite A-03168

HANDLE BAR & THROTTLE (R.H.)

$

$

Currently unavailable

31

Homelite A-03947

HOUSING ASSEMBLY

Note: Includes Items 32 and 33.

$32.99

$

Usually ships in 3-7 days

0

32

Homelite 03943

SCREW-Socket (M5 X 30)

$

$

Not available

33

Homelite 03944

SCREW-Machine (M5 X 40)

$

$

Not available

34

Homelite A-03945

JOINT-Rubber

$

$

Not available

35

Homelite A-03946

CAST JOINT ASSEMBLY

Note: Includes Item 36.

$

$

Currently unavailable

36

Homelite 03942

SCREW-Socket (M5 X 25)

$

$

Not available

37

Homelite A-03268

HANDLE BAR-Left

Note: Not used on 4000.

$

$

Not available

38

Homelite A-00593

THROTTLE & SWITCH

Note: Not used on 4000.

$

$

Not available

39

Homelite 81417

NUT-Hex

Note: Not used on 4000.

$

$

Not available

40

Homelite 88183

SCREW-Pan Hd. (M4 X 25)

Note: Not used on 4000.

$4.49

$

Usually ships in 3-7 days

0

41

Homelite 82528

SCREW-Thread Form. (6 X 3/8")

Note: Not used on 4000.

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 83086

WASHER-Lock

Note: Not used on 4000.

$

$

Not available

43

Homelite A-00590

HANDLE BAR-Right

Note: Not used on 4000.

$

$

Currently unavailable

44

Homelite A-04049

BRACKET-Handle Bar

Note: Not used on 4000.

$

$

Currently unavailable

45

Homelite 04011

SCREW & WASHER

Note: Not used on 4000.

$

$

Not available

46

Homelite A-00591

HANDLE BAR-Left

Note: Not used on 4000.

$

$

Currently unavailable

47

Homelite 03155

GRASS SHIELD

Note: Not used on 4000.

$

$

Not available

48

Homelite A03152A

DEFLECTOR-Bracket Kit
(Superseded to A03404)

Note: Includes Items 49 - 51. Not used on 4000.

$

$

Not available

49

Homelite 03998

SCREW & WASHER (Socket Hd.)
(Superseded to UP03998)

Note: Not used on 4000.

$

$

Not available

50

Homelite 04003

SCREW-Machine (6MM)

Note: Not used on 4000.

$

$

Not available

51

Homelite 04004

WASHER-Flat

Note: Not used on 4000.

$

$

Not available

52

Homelite 03393

RING-Grass Shield

Note: Not used on 4000.

$

$

Not available

53

Homelite 88182

SCREW-Machine Hex (M5 X 10)

Note: Not used on 4000.

$

$

Not available

54

Homelite A-04519

GRASS DEFLECTOR KIT

$

$

Not available

55

Homelite 043821

GUARD-Blade (10")

$

$

Currently unavailable

56

Homelite 88182

SCREW-Machine Hex Sems (M5 X 10)

$

$

Not available

57

Homelite A-04050

GUARD-Stand

Note: Includes Items 58 - 61.

$167.99

$

Usually ships in 3-7 days

0

58

Homelite 88180

SCREW-Socket Hd. (M5 X 25)

$

$

Not available

59

Homelite 88313

WASHER-Lock (M6)

$

$

Not available

60

Homelite 88405

WASHER-Flat (M6)

$

$

Not available

61

Homelite 88181

SCREW-Socket Hd. (M6 X 12)

$4.49

$

Usually ships in 3-7 days

0
