PCM 4818K - Ferris ProCut 48" Front Mount Mower, Hydro Drive, 18hp Kohler (SN: H1140 - H1359) Electrical Schematic Group Parts Diagram

ProCut 48" Front Mount Mower, Hydro Drive, 18hp Kohler

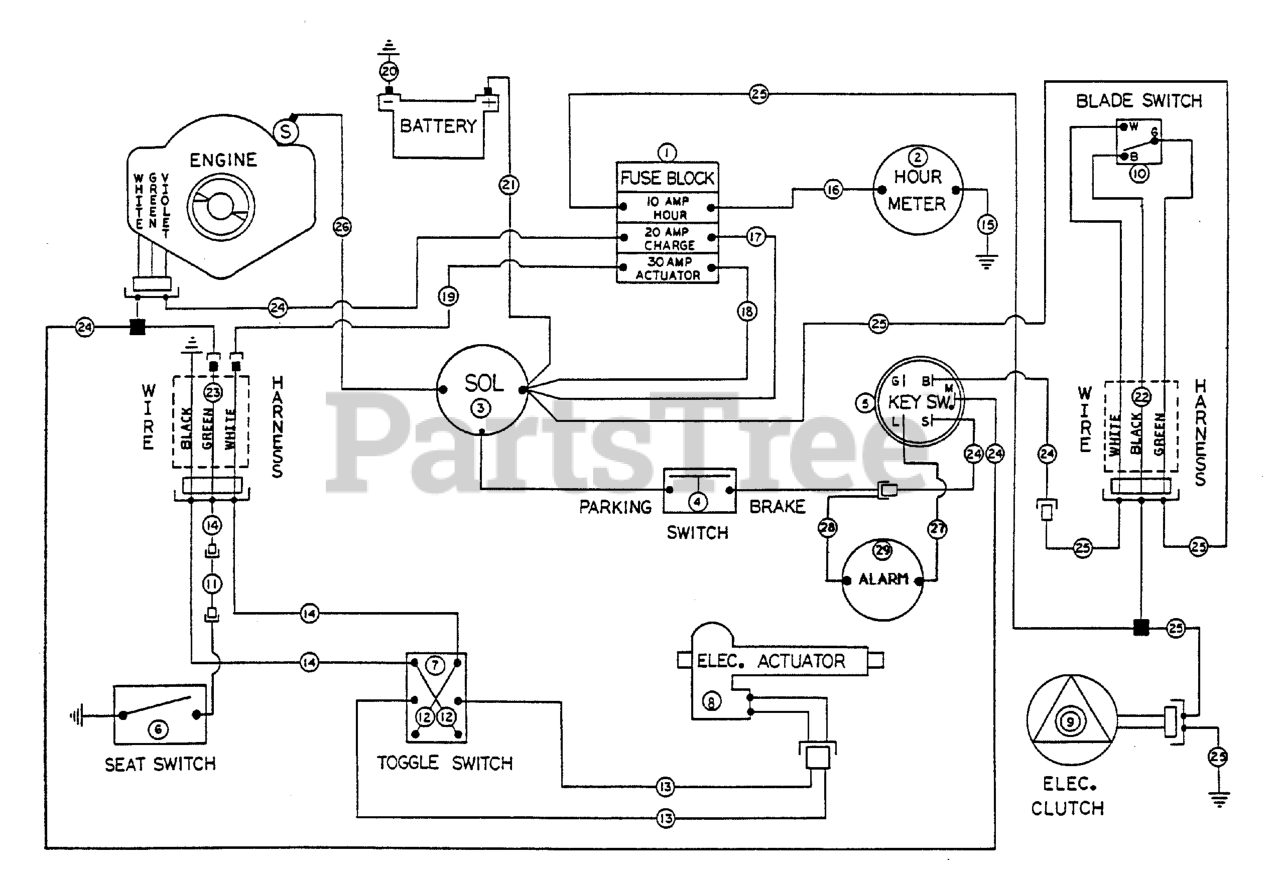

Electrical Schematic Group Parts Diagram

  • Title

1

Ferris 5020918

Fuse Block

$

$

Currently unavailable

1

Ferris 5020435

10 Amp Fuse

$

$

Currently unavailable

1

Ferris 5020934

20 Amp Fuse

$

$

Currently unavailable

1

Ferris 5020330

30 Amp Fuse

$

$

Currently unavailable

2

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

3

Ferris 5020801

SOLENOID, Starter
(Superseded to 5020801SM)

$133.99

$

Usually ships in 2-12 days

0

4

Ferris 5042186

Parking Brake Switch Assembly

$66.99

$

Usually ships in 2-12 days

0

5

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

6

Ferris 5042100

Seat Switch Assembly

$74.99

$

Usually ships in 2-12 days

0

7

Ferris 5020830

Toggle Switch

$59.99

$

Usually ships in 2-12 days

0

8

Ferris 5020844

Electric Actuator

$980.99

$

Usually ships in 2-12 days

0

9

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

10

Ferris 5021090

Toggle Switch

$36.99

$

Usually ships in 2-12 days

0

11

Ferris 5042099

Green Alpha Cable to Seat Switch

$

$

Currently unavailable

12

Ferris 5041795

Red Corner to Corner Toggle Switch

$

$

Currently unavailable

13

Ferris 5041794

Toggle Switch to Actuator Harness

$

$

Currently unavailable

14

Ferris 5041793

Actuator Switch to Alpha Cable Harness

$

$

Currently unavailable

15

Ferris 5041788

Blue (-) Hour Meter to Ground

$

$

Currently unavailable

16

Ferris 5041787

Blue Fuse Block to Hour Meter (+)

$

$

Currently unavailable

17

Ferris 5041786

Red Fuse Block to Solenoid

$

$

Currently unavailable

18

Ferris 5041789

White Fuse Block to Solenoid

$

$

Currently unavailable

19

Ferris 5042187

White Alpha Cable to Fuse Block

$

$

Currently unavailable

20

Ferris 42188

Negative Battery Cable

$

$

Currently unavailable

21

Ferris 42189

Positive Battery Cable

$

$

Currently unavailable

22

Ferris 5042190

Alpha Cable - Electric Clutch

$

$

Currently unavailable

23

Ferris 5042191

Alpha Cable - Electric Actuator

$

$

Currently unavailable

24

Ferris 5042192

Key Switch / Charge Harness

$23.99

$

Usually ships in 2-12 days

0

25

Ferris 5042193

Electric Clutch / Alpha Cable Harness

$24.99

$

Usually ships in 2-12 days

0

26

Ferris 41779

Solenoid to Starter
(Superseded to 7041779YP)

$53.99

$

Usually ships in 2-12 days

0

27

Key Switch to Alarm (Supplied w/ Alarm)

$

$

Not available

28

Alarm to Parking Brake (Supplied w/ Alarm)

$

$

Not available

29

Ferris 21138

Alarm

$

$

Currently unavailable
