PCT 6118B - Ferris ProCut 61" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0211 & Below) Transaxle Drive Group Parts Diagram

ProCut 61" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

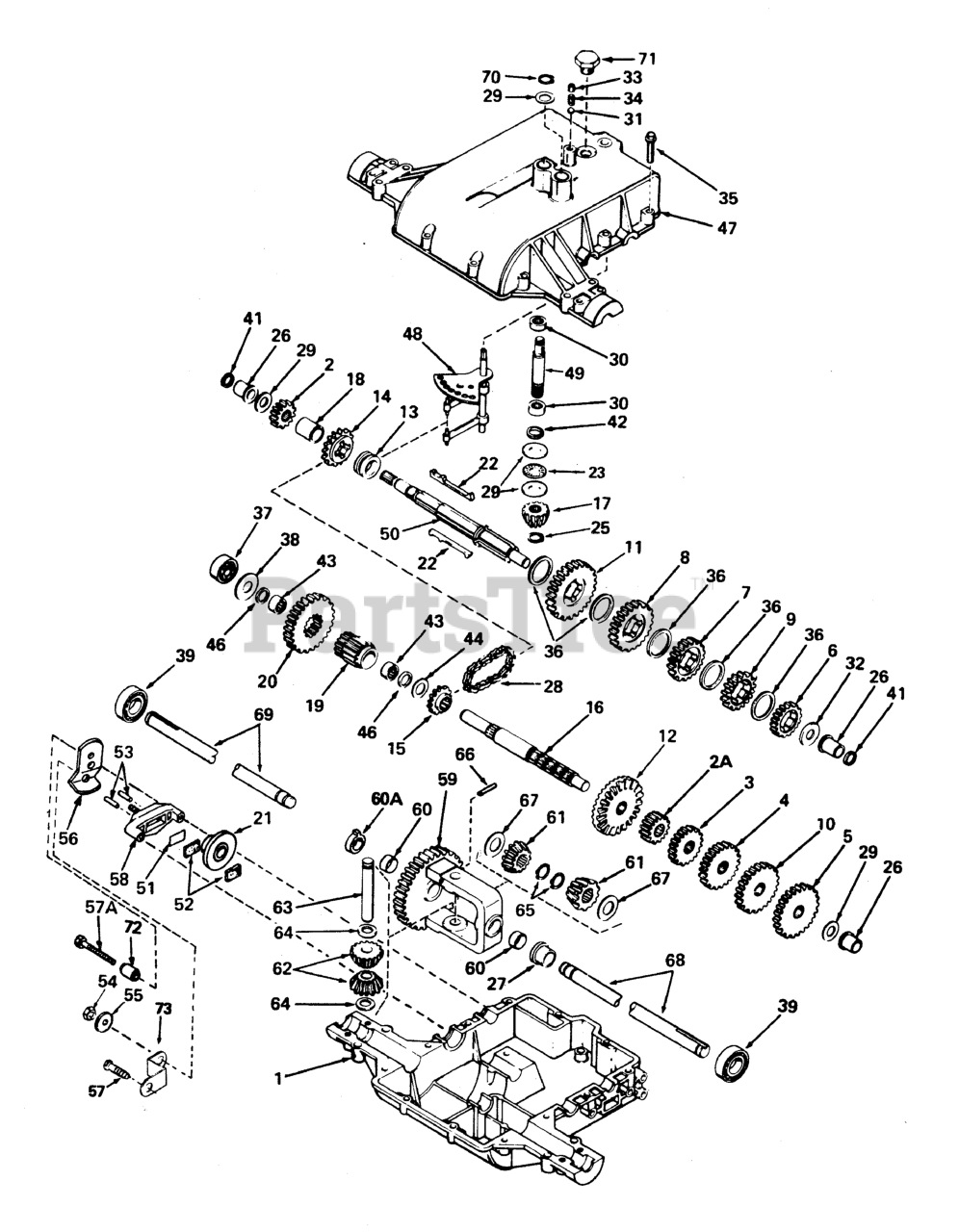

Transaxle Drive Group Parts Diagram

  • Title

1

Case, Transaxle

$

$

Not available

2

Gear, Spur (15 Tooth)

$

$

Not available

2A

Gear, Spur (12 Tooth)

$

$

Not available

3

Gear, Spur (15 Tooth)

$

$

Not available

4

Gear, Spur (20 Tooth)

$

$

Not available

5

Gear, Spur (28 Tooth)

$

$

Not available

6

Gear, Spur (22 Tooth)

$

$

Not available

7

Gear, Spur (30 Tooth)

$

$

Not available

8

Gear, Spur (35 Tooth)

$

$

Not available

9

Gear, Spur (25 Tooth)

$

$

Not available

10

Gear, Spur (25 Tooth)

$

$

Not available

11

Gear, Spur (37 Tooth)

$

$

Not available

12

Gear, Bevel (42 Tooth)

$

$

Not available

13

Collar, Shirt

$

$

Not available

14

Sprocket (18 Tooth)

$

$

Not available

15

Sprocket (9 Tooth)

$

$

Not available

16

Shaft, Counter

$

$

Not available

17

Bevel Pinion, Input

$

$

Not available

18

Spacer

$

$

Not available

19

Pinion, Output

$

$

Not available

20

Gear, Output

$

$

Not available

21

Disk, Brake

$

$

Not available

22

Key

$

$

Not available

23

Bearing, Thrust

$

$

Not available

25

Ring, Retaining

$

$

Not available

26

Bushing, Flanged

$

$

Not available

27

Bushing, Flanged

$

$

Not available

28

Chain, Roller (#41, 24 Links)

$

$

Not available

29

WASHER, Thrust

$

$

Not available

30

Bearing, Needle

$

$

Not available

31

Ball, Steel

$

$

Not available

32

WASHER, Thrust

$

$

Not available

33

Screw, Set 3/8-16 x 3/8

$

$

Not available

34

Spring

$

$

Not available

35

Screw, Flanged Hex Head Threadforming, 1/4-20 x 1-1/4

$

$

Not available

36

WASHER, Thrust

$

$

Not available

37

Bearing, Ball

$

$

Not available

38

WASHER, Flat

$

$

Not available

39

Bearing, Ball

$

$

Not available

41

Seal, Square Cut

$

$

Not available

42

Seal, Square Cut

$

$

Not available

43

Bearing, Needle

$

$

Not available

44

WASHER, Flat

$

$

Not available

46

Ring, Square Cut

$

$

Not available

47

Cover, Transaxle

$

$

Not available

48

Rod & Fork Assembly, Shift

$

$

Not available

49

Shaft, Input

$

$

Not available

50

Shaft, Brake

$

$

Not available

51

Plate, Brake Pad

$

$

Not available

52

Pad, Brake

$

$

Not available

53

Pin, Dowel

$

$

Not available

54

Locknut, 5/16-24

$

$

Not available

55

WASHER, Flat

$

$

Not available

56

Lever, Plate

$

$

Not available

57

Screw, Flanged Hex Head, Threadforming, 1/4-20 x 1-1/4

$

$

Not available

57A

Screw, Flanged Hex head, Threadforming, 1/4-20 x 2-1/4

$

$

Not available

58

Holder, Brake Pad

$

$

Not available

59

Gear Assembly, Differential

Note: (Includes 2 of No. 60)

$

$

Not available

60

Bushing

$

$

Not available

60A

Bushing

$

$

Not available

61

Gear, Bevel

$

$

Not available

62

Pinion, Bevel

$

$

Not available

63

Pin, Drive

$

$

Not available

64

WASHER, Thrust

$

$

Not available

65

Ring, Retaining

$

$

Not available

66

Pin, Roll

$

$

Not available

67

WASHER, Thrust

$

$

Not available

68

Axle (25 - 1/4" Long)

$

$

Not available

69

Axle (13 - 1/4" Long)

$

$

Not available

70

Ring, Retaining

$

$

Not available

71

Plug Hex Head, 9/16-18 Thread

$

$

Not available

72

Spacer

$

$

Not available

73

Bracket, Brake Lever

$

$

Not available
