PCZ61 (5901124) - Ferris 61" Mower Deck 61" Mower Deck - Complete Parts Diagram

61" Mower Deck

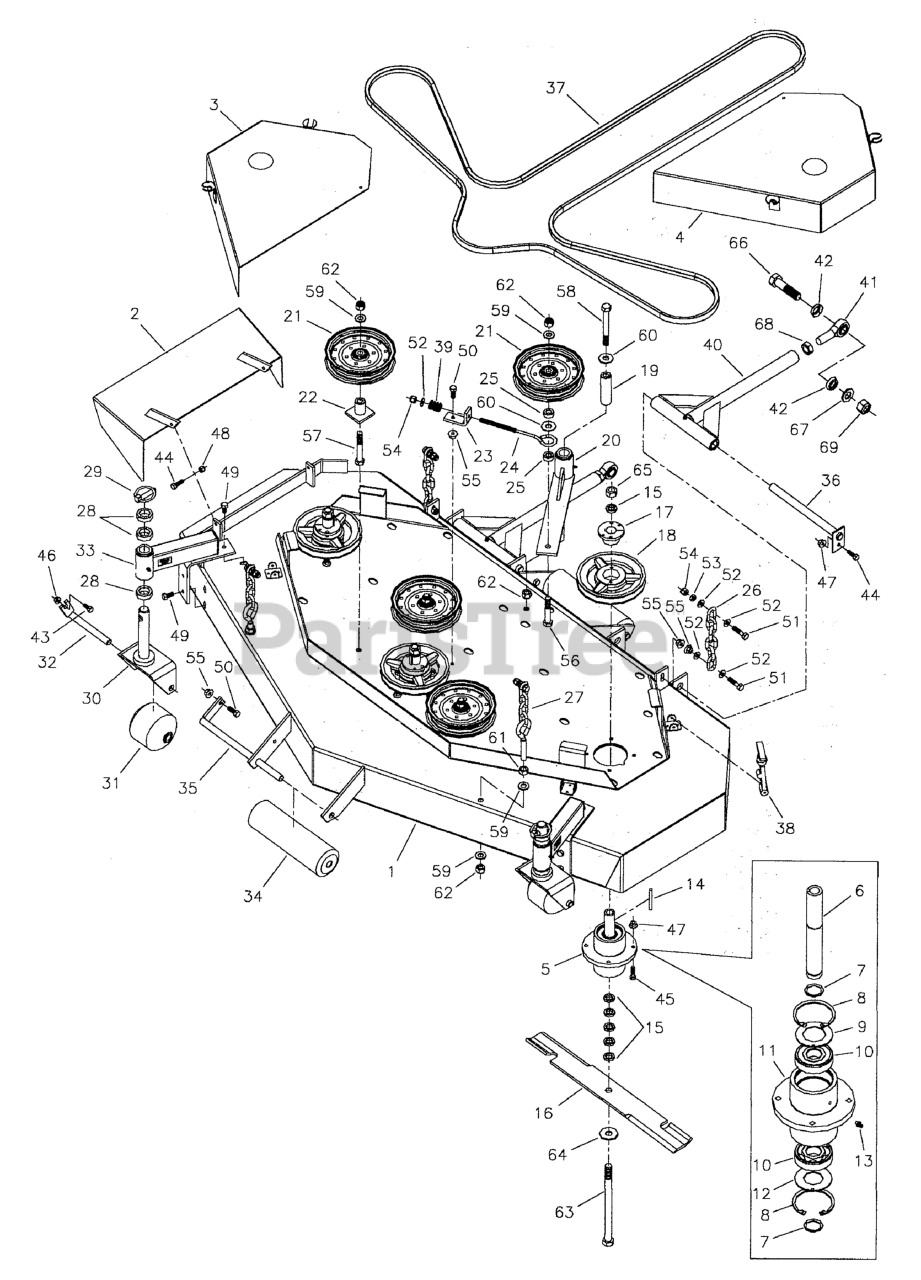

61" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5600242

DECK SHELL W/DECALS, 61, Z61

$1994.99

$

Usually ships in 2-12 days

0

2

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

3

Ferris 5045040B

GUARD, Deck, Right

$

$

Currently unavailable

4

Ferris 5045042B

GUARD, Deck, Left

$

$

Currently unavailable

5

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

6

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

7

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

11

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

12

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

16

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 11

0

17

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

18

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

19

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

20

Ferris 5060001

IDLER ARM ASSEMBLY

$85.99

$

Usually ships in 2-12 days

0

-

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

-

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

-

Ferris 5045019B

IDLER ARM
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

21

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

22

Ferris 5045024B

IDLER PULLEY MOUNT
(Superseded to 5045024BFS)

$43.99

$

Usually ships in 2-12 days

0

23

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

24

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

Usually ships in 2-12 days

0

25

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

In Stock, Qty 10

0

26

Ferris 5050878X6

CHAIN, 6 LINKS

$9.49

$

Usually ships in 2-12 days

0

27

Ferris 5104303

HANGER, FRONT DECK - 4 LINK, 5.5" EB
(Superseded to 5104303YP)

$53.99

$

In Stock, only 2 left!

0

28

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

29

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 3 left!

0

30

Ferris 5045188B

CASTER YOKE
(Superseded to 5045188BFS)

$107.99

$

In Stock, only 2 left!

0

31

Ferris 5022060

ROLLER, Caster
(Superseded to 5022060SM)

$44.99

$

In Stock, only 2 left!

0

32

Ferris 5045034B

CASTER ROLLER PIN
(Superseded to 5045034BFS)

$31.99

$

In Stock, only 1 left!

0

33

Ferris 5060054

ARM, DECK CASTER ASSEMBLY

$94.99

$

Usually ships in 2-12 days

0

-

Ferris 5021036

DECAL, Grease Daily
(Superseded to 5021036SM)

$8.99

$

Usually ships in 2-12 days

0

-

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

-

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

-

Ferris 5022098

CAP, Plastic
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

34

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 10

0

35

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 1 left!

0

36

Ferris 5045037A

NLA - WELD, DECK MOUNT SHAFT - BLK
(Superseded to 5045037AA)

$39.99

$

In Stock, only 2 left!

0

37

Ferris 5103871

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC
(Superseded to 5103671)

$148.99

$

Usually ships in 2-12 days

0

38

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

39

Ferris 5021680

SPRING, Compression
(Superseded to 5021680SM)

$33.99

$

Usually ships in 2-12 days

0

40

Ferris 5045009B

ASSM, DECK PUSHER BAR

$133.99

$

In Stock, only 2 left!

0

41

Ferris 5022039

BALL JOINT, 3/4-16 Male
(Superseded to 5022039SM)

$37.99

$

In Stock, only 2 left!

0

42

Ferris 5022111

ROD END SEAL
(Superseded to 5022111SM)

$15.99

$

In Stock, only 4 left!

0

43

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

44

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

46

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

47

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

48

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

49

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

50

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

51

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 1 left!

0

52

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

53

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

54

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

55

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

56

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 12

0

57

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

58

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

59

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

60

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 4 left!

0

61

Ferris 5025038

NUT, 1/2-13 Hex
(Superseded to 703340)

$7.99

$

In Stock, only 2 left!

0

62

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

63

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

64

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

65

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

66

Ferris 5025265X24

BOLT, 3/4-16 x 3
(Superseded to 5025265X24SM)

$13.99

$

Usually ships in 2-12 days

0

67

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

68

Ferris 5025093

NUT, 3/4-16 Hex Jam
(Superseded to 5025093SM)

$4.49

$

Usually ships in 2-12 days

0

69

Ferris 5025284

NUT, 3/4-16 Hex Nylon Lock
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0
