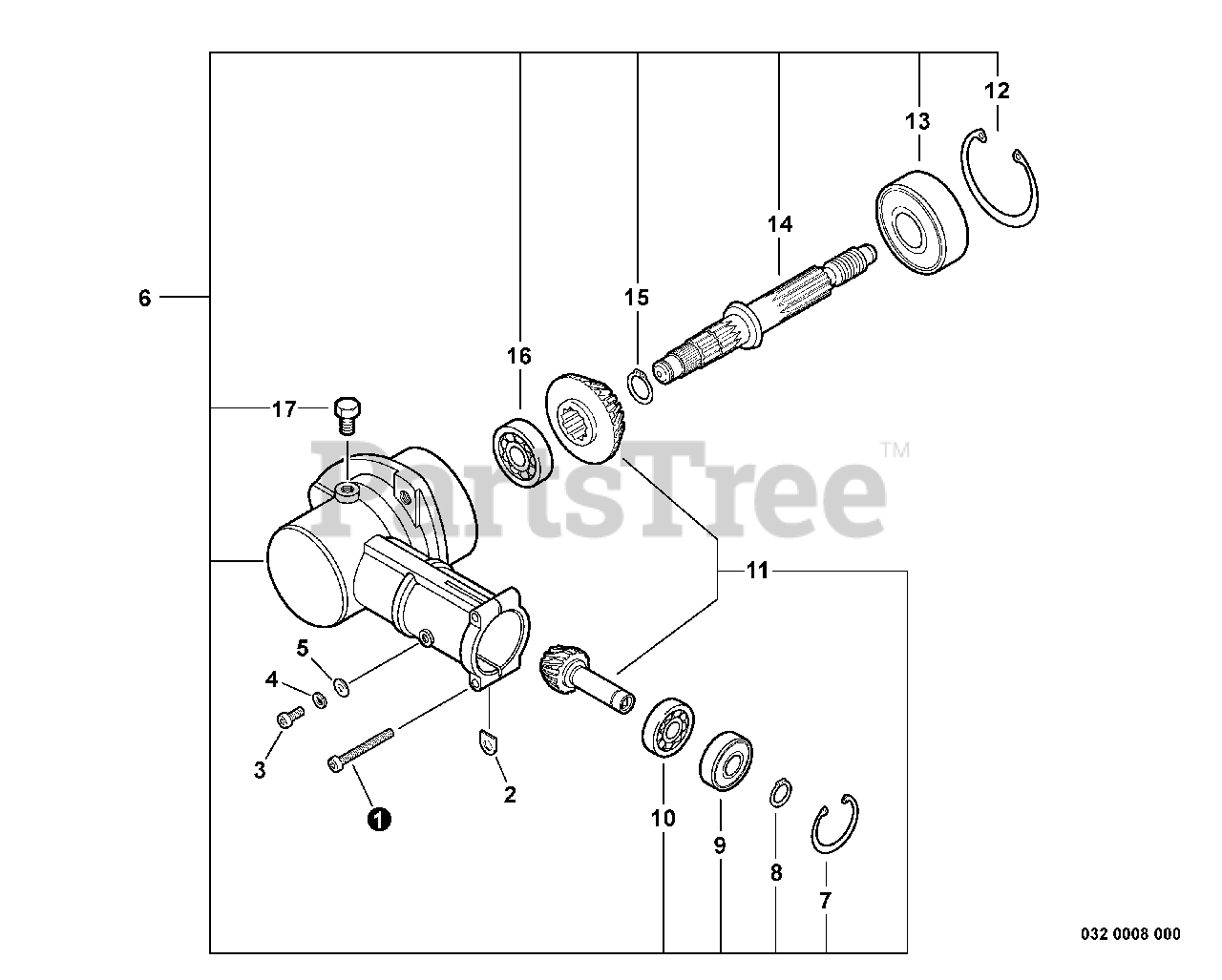

PE-265 S - Echo Edger (SN: S71412001001 - S71412999999) Gear Case Parts Diagram

Edger

Gear Case Parts Diagram

  • Title

1

Echo V805000170

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

2

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

3

Echo V805000140

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

5

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo C051000331

GEAR CASE ASSY
(Superseded to C051001230)

Note: Includes ITEMS 7-17

$131.99

$

In Stock, only 2 left!

0

7

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, only 2 left!

0

8

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 8

0

10

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 7

0

11

Echo P021015970

GEAR SET
(Superseded to C051001230)

$131.99

$

In Stock, only 2 left!

0

12

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 5

0

13

Echo 90081206302

BEARING, BALL - 609

$16.99

$

In Stock, Qty 8

0

14

Echo C534000500

GEAR - SHAFT
(Superseded to C051001230)

$131.99

$

In Stock, only 2 left!

0

15

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

16

Echo 90081000629

BEARING, BALL - 629

$15.99

$

In Stock, only 2 left!

0

17

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 7

0
