PL 7H141KV (80485) - Snapper Walk-Behind Mower, 14hp Caster Wheel & Tire Assembly Parts Diagram

Walk-Behind Mower, 14hp

Caster Wheel & Tire Assembly Parts Diagram

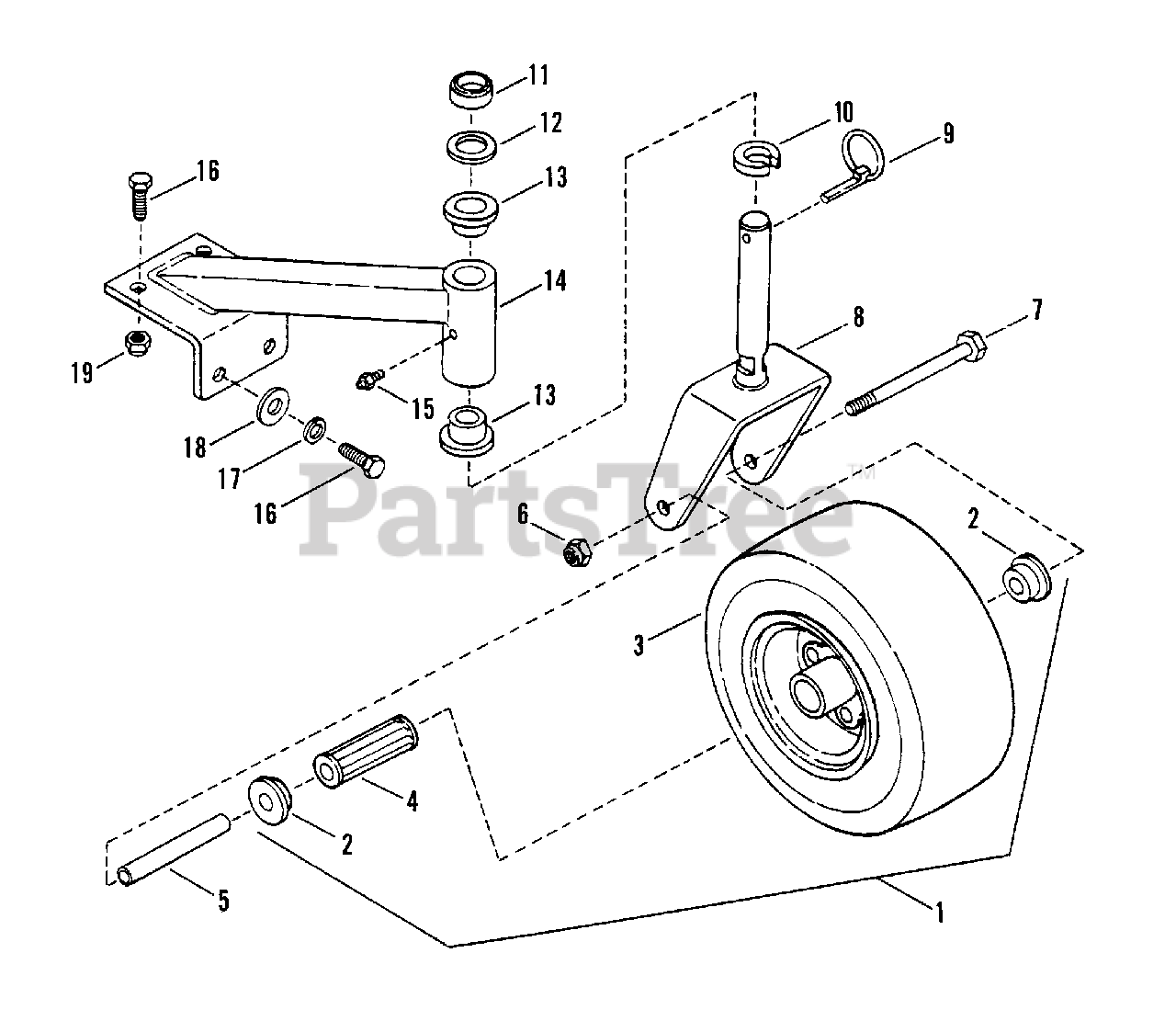

  • Title

1

Snapper 7058167

ASSEMBLY, Wheel and Tire
(Superseded to 7058167YP)

Note: Was 27122 or 29869

$120.99

$

In Stock, only 1 left!

0

2

Snapper 7022394

RETAINER, Flanged
(Superseded to 7022394YP)

$8.99

$

In Stock, Qty 11

0

3

Snapper 27193

ASSEMBLY, Tire and Rim, 9 x 3.5 Foam-Filled

$

$

Currently unavailable

4

Snapper 7022395

ROLLER BEARING
(Superseded to 7022395YP)

$18.99

$

In Stock, only 2 left!

0

5

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 4 left!

0

6

Snapper 7091121

NUT, 1/2 - 13 Nyloc

$

$

Not available

7

Snapper 7091326

BOLT, 1/2 - 13 x 5 1/2" HHC
(Superseded to 7091326YP)

Note: Was 91123

$8.99

$

In Stock, Qty 5

0

8

Snapper 7040726

YOKE, Caster Weldment
(Superseded to 7040726YP)

$90.99

$

Usually ships in 2-12 days

0

9

Snapper 7017711

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

10

Snapper 7019152

SPACER
(Superseded to 7019152YP)

$7.49

$

In Stock, Qty 12

0

11

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

12

Snapper 7023747

SPACER
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

13

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

14

Snapper 7026943

ASSEMBLY, Caster Support
(Superseded to 7026943YP)

Note: (Includes 14 & 15)

$104.99

$

Usually ships in 2-12 days

0

15

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 7091304

SCREW, 3/8 - 16 x 1" HHC
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

17

Snapper 7090118

WASHER, 3/8 Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

18

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

19

Snapper 7091299

NUT, 3/8 - 16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0
