PL 7H141KV (80485) - Snapper Walk-Behind Mower, 14hp Fuel Tank Assembly Parts Diagram

Walk-Behind Mower, 14hp

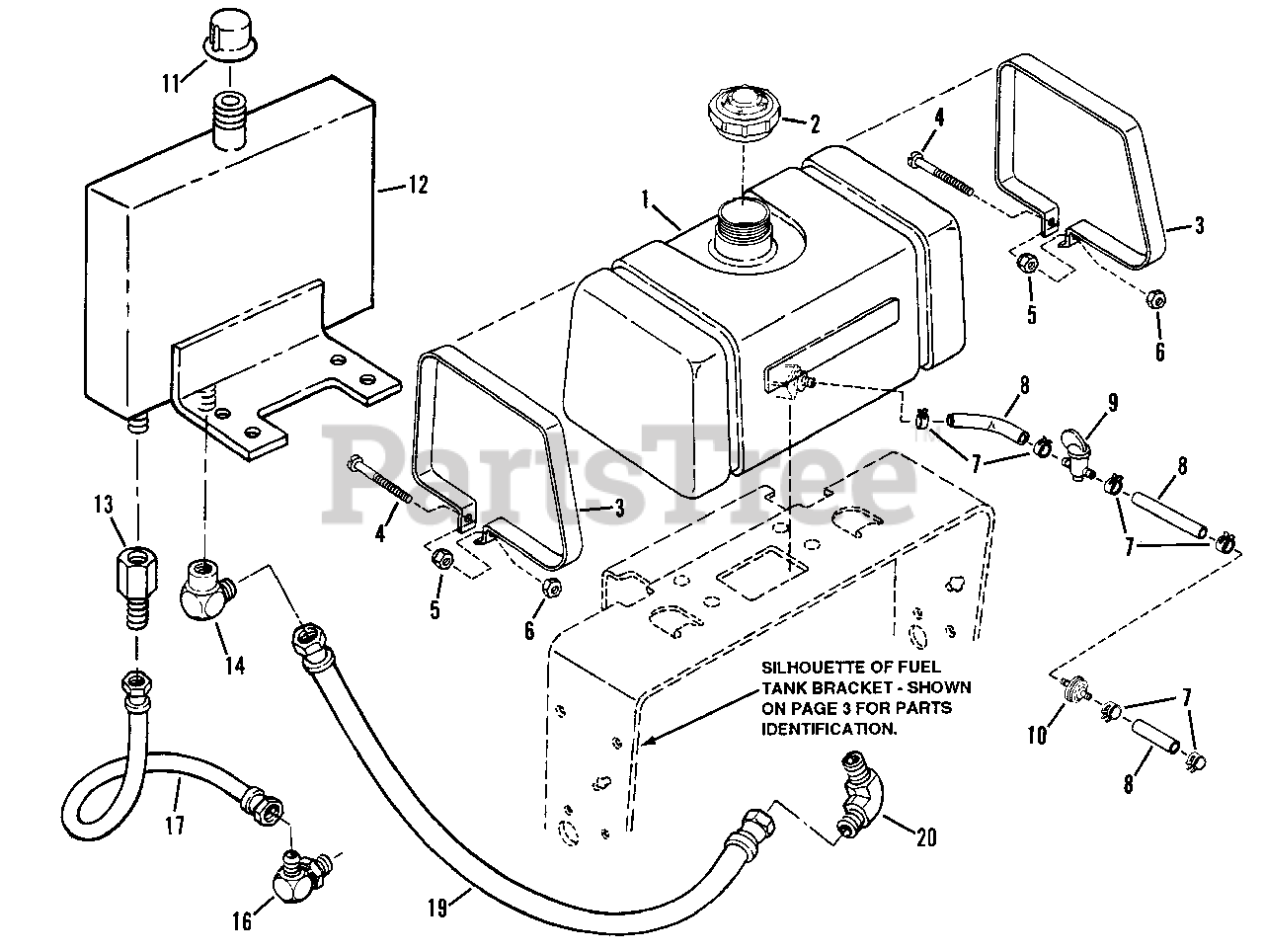

Fuel Tank Assembly Parts Diagram

  • Title

1

Snapper 7019186

TANK, Fuel
(Superseded to 7019186YP)

Note: (Includes Item 2)

$117.99

$

Usually ships in 2-12 days

0

2

Snapper 7012515

CAP, Fuel
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, Qty 14

0

3

Snapper 7032875

STRAP, Fuel Tank
(Superseded to 7032875YP)

$63.99

$

Usually ships in 2-12 days

0

4

Snapper 7091052

SCREW, #10 - 24x 2" Machine Head
(Superseded to 7091052YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7091053

NUT, #10 - 24 KEPS
(Superseded to 7091053YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7090594

NUT, #10 - 24 Nyloc
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: Was 12222 (6 ea., Kawasaki) (4 ea., Kohler)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7032015

HOSE, Fuel 7"
(Superseded to 791766)

Note: Was 27195 (3 ea., Kawasaki) (2 ea., Kohler)

$7.99

$

In Stock, Qty 20+

0

Snapper 7032956

HOSE, Fuel 10"
(Superseded to 7032956YP)

Note: (1 ea., Kohler)

$

$

Not available

9

Snapper 7016325

VALVE, Fuel Shut-off
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 12

0

10

Snapper 7014359

FILTER, Fuel In-Line
(Superseded to 394358S)

Note: (Kawasaki Only)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 7026945

CAP, Hydraulic
(Superseded to 7026945YP)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 7026916

TANK, Reservoir

$

$

Currently unavailable

13

Snapper 7027107

FITTING, Straight

$

$

Not available

14

Snapper 7027115

FITTING, 90 Degree
(Superseded to 7027115YP)

$19.99

$

Usually ships in 2-12 days

0

?15

Snapper 27196

PLUG, Reservoir

$

$

Currently unavailable

16

Snapper 7027114

FITTING, 90 Degree
(Superseded to 7027114YP)

$16.99

$

Usually ships in 2-12 days

0

17

Snapper 7027116

HOSE, 9" Hydraulic
(Superseded to 7027116YP)

$25.99

$

In Stock, only 2 left!

0

?18

Snapper 7027111

FITTING,90 Degree, "O" Ring

$

$

Not available

19

Snapper 7027117

HOSE, 12" Hydraulic
(Superseded to 7027117YP)

$27.99

$

Usually ships in 2-12 days

0

20

Snapper 7027109

FITTING, 90 Degree

$

$

Not available
