PP 19A42 (960420187-01) - Poulan Pro Lawn Tractor (2017-06) STEERING Parts Diagram

Lawn Tractor

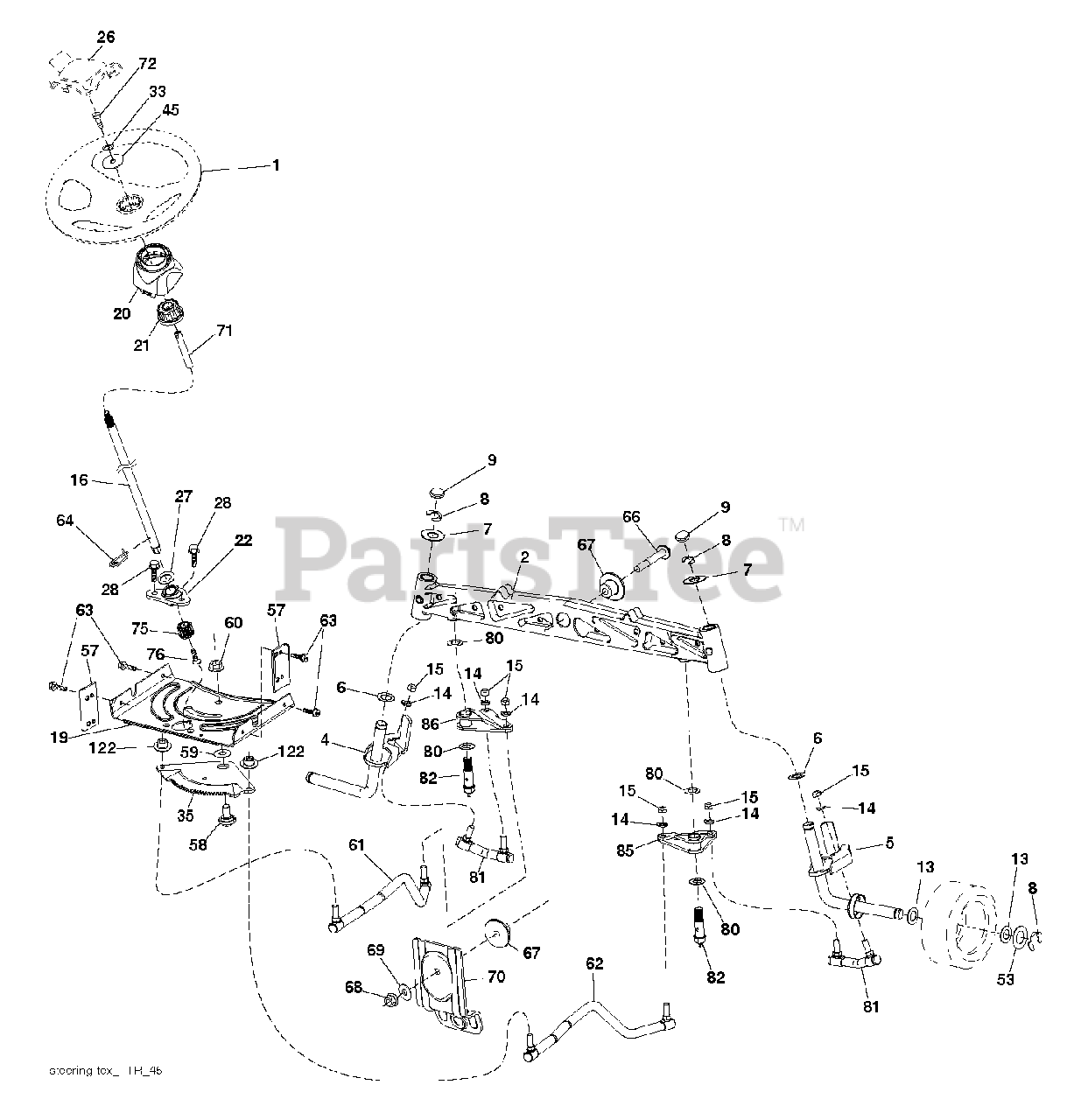

STEERING Parts Diagram

  • Title

1

Poulan 532424543

WHEEL.STEERING.HARD.RIM.BLAC

$40.99

$

In Stock, Qty 13

0

2

Poulan 532436870

RP SUBASM.AXLE.CAST.N
(Superseded to 583512701)

$206.99

$

Usually ships in 3-10 days

0

4

Poulan 532436873

SPINDLE WELDMENT.SPIN
(Superseded to 583512801)

Note: RIGHT

$50.99

$

In Stock, only 3 left!

0

5

Poulan 532436874

SPINDLE WELDMENT.SPIN
(Superseded to 583512901)

$50.99

$

In Stock, only 3 left!

0

6

Poulan 532124931

(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Poulan 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

9

Poulan 532121232

CAP.SPINDLE.BLACK

$3.99

$

In Stock, Qty 20+

0

13

Poulan 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

15

Poulan 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

16

Poulan 585869202

(Superseded to 587738903)

$28.99

$

In Stock, Qty 5

0

19

Poulan 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Poulan 532409763

BOOT.STEERING.PREDATOR.LT.BLAC

$7.49

$

In Stock, only 1 left!

0

21

Poulan 532437747

STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

22

Poulan 585029901

(Superseded to 587738901)

$17.99

$

In Stock, Qty 20+

0

26

Poulan 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, Qty 5

0

27

Poulan 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

33

Poulan 539990187

WASHER 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 532440770

GEAR GEAR.SECTOR.TEX.
(Superseded to 583551401)

$37.99

$

In Stock, only 1 left!

0

45

Poulan 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 19

0

57

Poulan 532407465

BRACKET.UPSTOP.TEX

$4.99

$

In Stock, only 1 left!

0

58

Poulan 532194747

BOLT.SHOULDER.SECTOR.P

$8.99

$

In Stock, Qty 15

0

59

Poulan 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, Qty 20+

0

60

Poulan 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, Qty 20+

0

61

Poulan 532436884

LINK SUBASM.LINK.DRAG
(Superseded to 583513301)

$24.99

$

In Stock, Qty 18

0

62

Poulan 532436885

TUBE TUBE
(Superseded to 583513401)

$

$

Not available

63

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

64

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

66

Poulan 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, Qty 7

0

67

Poulan 532194737

BUSHING.PM.FRONT AXLE

$4.99

$

Usually ships in 3-10 days

0

68

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

69

Poulan 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, Qty 8

0

70

Poulan 585338801

Deck Suspension Bracket, Front RR

$9.99

$

Usually ships in 3-10 days

0

71

Poulan 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

Usually ships in 3-10 days

0

72

Poulan 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

75

Poulan 580683701

(Superseded to 587738906)

$5.99

$

In Stock, Qty 7

0

76

Poulan 580683601

Screw Head Socket Lrvb

$4.99

$

Usually ships in 3-10 days

0

80

Poulan 532001370

THRUST WASHER

$6.49

$

In Stock, Qty 17

0

81

Poulan 532436887

LINK SUBASM.LINK.CROS
(Superseded to 583513501)

$

$

Not available

82

Poulan 532442147

SUBASM;PIVOT;BOLT;NZTR

$7.49

$

In Stock, Qty 5

0

85

Poulan 532441873

PIVOT SUBASM.PIVOT.RH
(Superseded to 583561101)

$

$

Not available

86

Poulan 532441872

PIVOT SUBASM.PIVOT.LH
(Superseded to 583561001)

$40.99

$

In Stock, only 1 left!

0

122

Poulan 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, Qty 20+

0
