PP 4000 (PP4000-A1) - Kawasaki Generator GENERATOR Parts Diagram

Generator

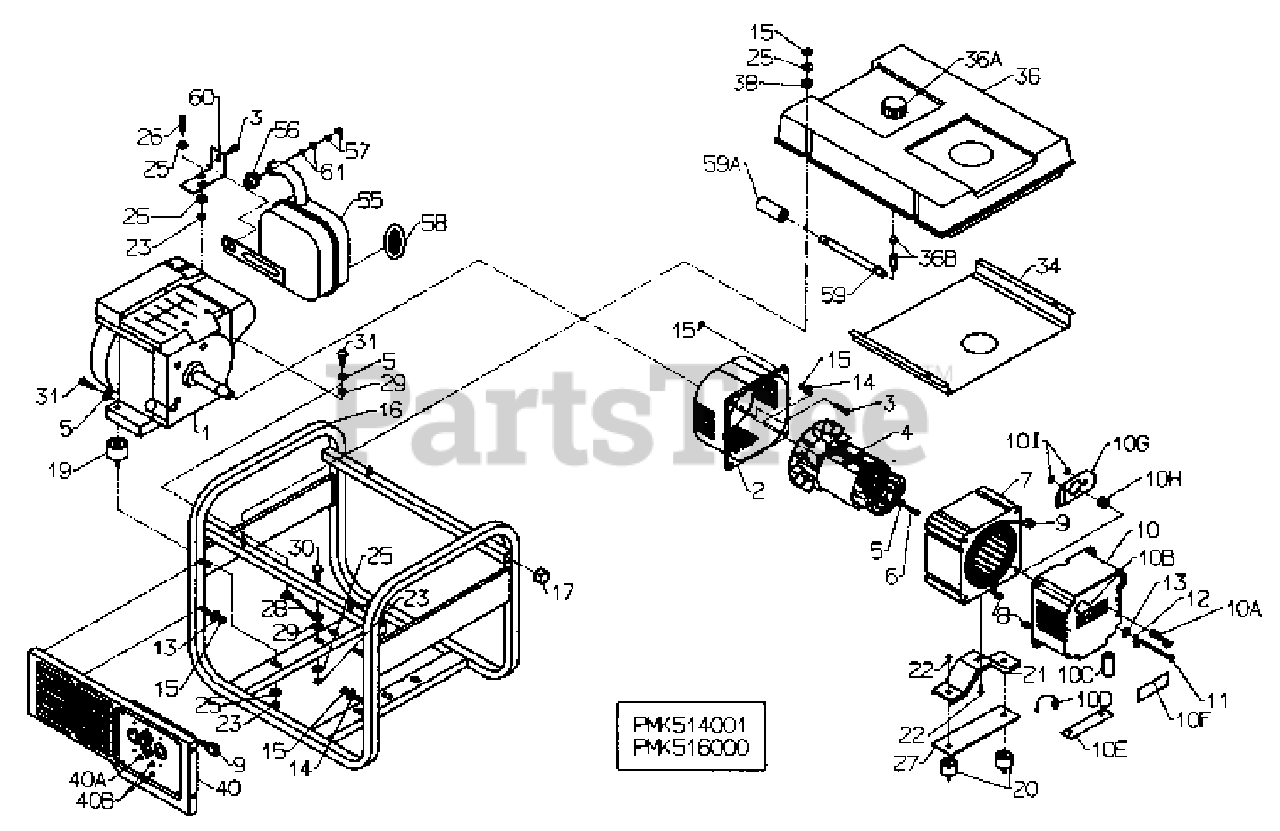

GENERATOR Parts Diagram

  • Title

1

Kawasaki FE250D-AS06

ENGINE

$

$

Currently unavailable

2

Kawasaki 0050236-01

ADAPTER,ENGINE

$

$

Currently unavailable

3

Kawasaki 0000919-01

BOLT,3/8-16X3/4

$

$

Currently unavailable

4

Kawasaki 0049620

ROTOR

$

$

Not available

5

Kawasaki 0000943

WASHER,LOCK 5/16

$

$

Not available

6

Kawasaki 0035055

BOLT,HEX 5/16-24X6-5/8

$

$

Not available

7

Kawasaki 0051528

STATOR

$

$

Not available

8

Kawasaki 0049835

CONNECTOR,ENDBELL

$

$

Not available

9

Kawasaki 0049200

CONNECTOR,PANNEL

$

$

Not available

10

Kawasaki 0051720

ENDBELL,WIRED

$

$

Not available

10A

Kawasaki 0050439

BRUSH

$

$

Not available

10B

Kawasaki 0035188

BEARING,NEEDLE
(Superseded to 0051720)

$

$

Not available

10C

Kawasaki 0034819-01

CAPACITOR

$

$

Currently unavailable

10D

Kawasaki 0034843

DIODE

$

$

Not available

10E

Kawasaki 0038976

HEAT SINK,DIODE

$

$

Not available

10F

Kawasaki 0048844

COVER,BRUSH

$

$

Not available

10G

Kawasaki 0051080

SHIELD,ENDBELL

$

$

Not available

10H

Kawasaki 0051093

TOLERANCE RING

$

$

Not available

10I

Kawasaki 0050397

RETAINING CLIP

$

$

Not available

11

Kawasaki 0040816

BOLT,HEX1/4-20X6

$

$

Not available

12

Kawasaki 0008854

LUG,GROUND

$

$

Not available

13

Kawasaki 0003723

WASHER,FLAT

$

$

Not available

14

Kawasaki 0049073

WASHER,STAR

$

$

Not available

15

Kawasaki 0040832

NUT,NYLOC

$

$

Not available

16

Kawasaki 0052850

FRAME

$

$

Not available

17

Kawasaki 0048837

CAP,PLASTIC

$

$

Not available

19

Kawasaki 0051094

MOUNT,ENGINE

$

$

Not available

20

Kawasaki 0051094

MOUNT,ENGINE

$

$

Not available

21

Kawasaki 0049693

BRACKET,STATOR

$

$

Not available

22

Kawasaki 0049279

BOLT,5/16-18/1/2

$

$

Not available

23

Kawasaki 0048736

NUT,NYLOC 5/16

$

$

Not available

25

Kawasaki 0000992

WASHER,FLAT 5/16

$

$

Not available

26

Kawasaki 0003947

BOLT,5/16-18X11/2

$

$

Not available

27

Kawasaki 0050334

BRACKET,STATOR

$

$

Not available

28

Kawasaki 0049224

WIRE,GROUND

$

$

Not available

29

Kawasaki 0049234

WASHER,STAR 5/16

$

$

Not available

30

Kawasaki 0049744

BOLT,5/16-18X3/4

$

$

Not available

31

Kawasaki 0049223

BOLT,5/16-18X11/4

$

$

Not available

34

Kawasaki 0053478

SHEILD,HEAT

$

$

Not available

36

Kawasaki 0052890

TANK ASSY,FUEL
(Superseded to 0049472)

$

$

Not available

36A

Kawasaki 0050322

CAP,FUEL

$

$

Not available

36B

Kawasaki 0049842

FUEL VALVE/BUSHING

$

$

Not available

38

Kawasaki 0048243

BUSHING,STEP

$

$

Not available

40

Kawasaki 0052896

CONTROL PANAL,COMPLETE

$

$

Not available

40A

Kawasaki 0049071

CIRCUT BREAKER,20AMP

$8.49

$

In Stock, only 1 left!

0

40B

Kawasaki 0048337

CIRCUT BREAKER,35AMP

$

$

Not available

55

Kawasaki 0052872

MUFFLER

$

$

Not available

56

Kawasaki 0052913

GASKET,MUFFLER

$

$

Not available

57

Kawasaki 0052914

NUT,8MM

$

$

Not available

58

Kawasaki 0039206

SCREEN,SPARK ARRESTOR

$

$

Not available

59

Kawasaki 0035857

CLAMP,FUEL LINE

$

$

Not available

59A

Kawasaki 0053477

FOAM,INSULATION

$

$

Currently unavailable

60

Kawasaki 0050941

BRACKET,MUFFLER

$

$

Currently unavailable

61

Kawasaki 0054065

WASHER,LOCK 8MM

$

$

Currently unavailable
