PP 5001 (88830) - Snapper 17" Power Plug, 5hp Handle Assembly Parts Diagram

17" Power Plug, 5hp

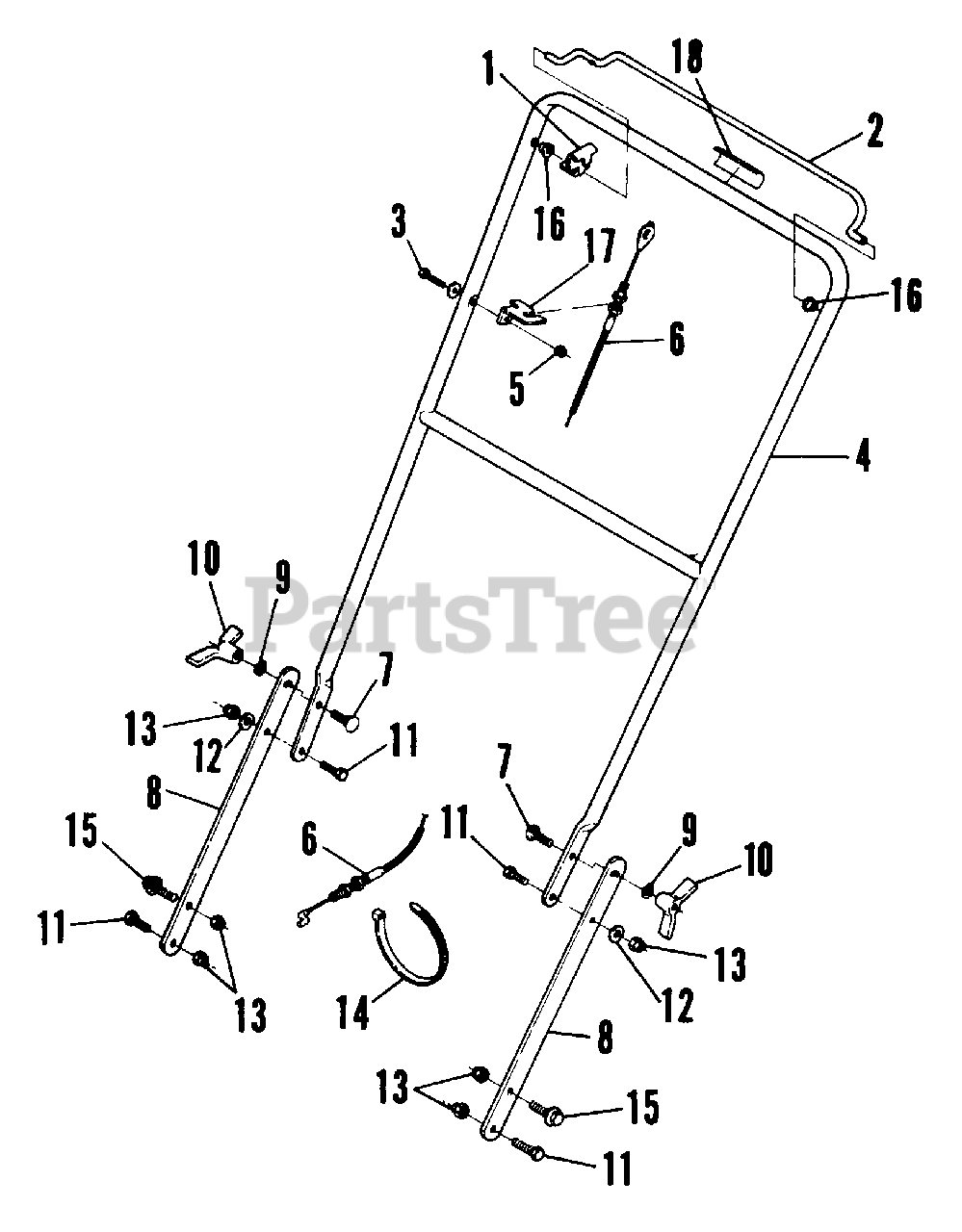

Handle Assembly Parts Diagram

  • Title

1

Snapper 7032593

BAIL CATCH

$

$

Not available

2

Snapper 7019211

BAIL
(Superseded to 7019211YP)

$10.99

$

In Stock, only 1 left!

0

3

Snapper 7090639

CAPSCREW, 1/4" - 20 x 1 1/2"
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

4

Snapper 7040602

UPPER HANDLE
(Superseded to 7040602YP)

$182.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NYLOC HEX. NUT, 1/4" - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7023702

CLUTCH CABLE
(Superseded to 7023702YP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 76962

CARRIAGE BOLT, 5/16" - 18 x 1"

$

$

Currently unavailable

8

Snapper 7076759

LOWER HANDLE

$

$

Currently unavailable

9

Snapper 7090187

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7076132

KNOB

$

$

Not available

11

Snapper 7091304

CAPSCREW GR. 5, 3/8" - 16 x 1" Hex. Hd.
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, only 3 left!

0

12

Snapper 7090517

FLAT WASHER, 3/8" Std.
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

13

Snapper 7091299

NYLOC HEX. NUT, 3/8" - 16
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7012080

PLASTIC TIE, 1/8" - 6"
(Superseded to 7012080SM)

Note: Was 76856

$4.99

$

Usually ships in 2-12 days

0

15

Snapper 7091328

CAPSCREW GR. 5, 3/8" - 16 x 1 1/4" Hex. Hd.
(Superseded to 703871)

Note: Was 76941

$4.99

$

In Stock, only 1 left!

0

16

Snapper 7015601

BUSHING

$1.99

$

In Stock, only 3 left!

0

17

Snapper 7032816

CABLE MOUNT
(Superseded to 7032816YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper 7023705

DECAL

$

$

Currently unavailable
