PP RT5 KA - Poulan Tiller (1995) TRANSMISSION Parts Diagram

Tiller

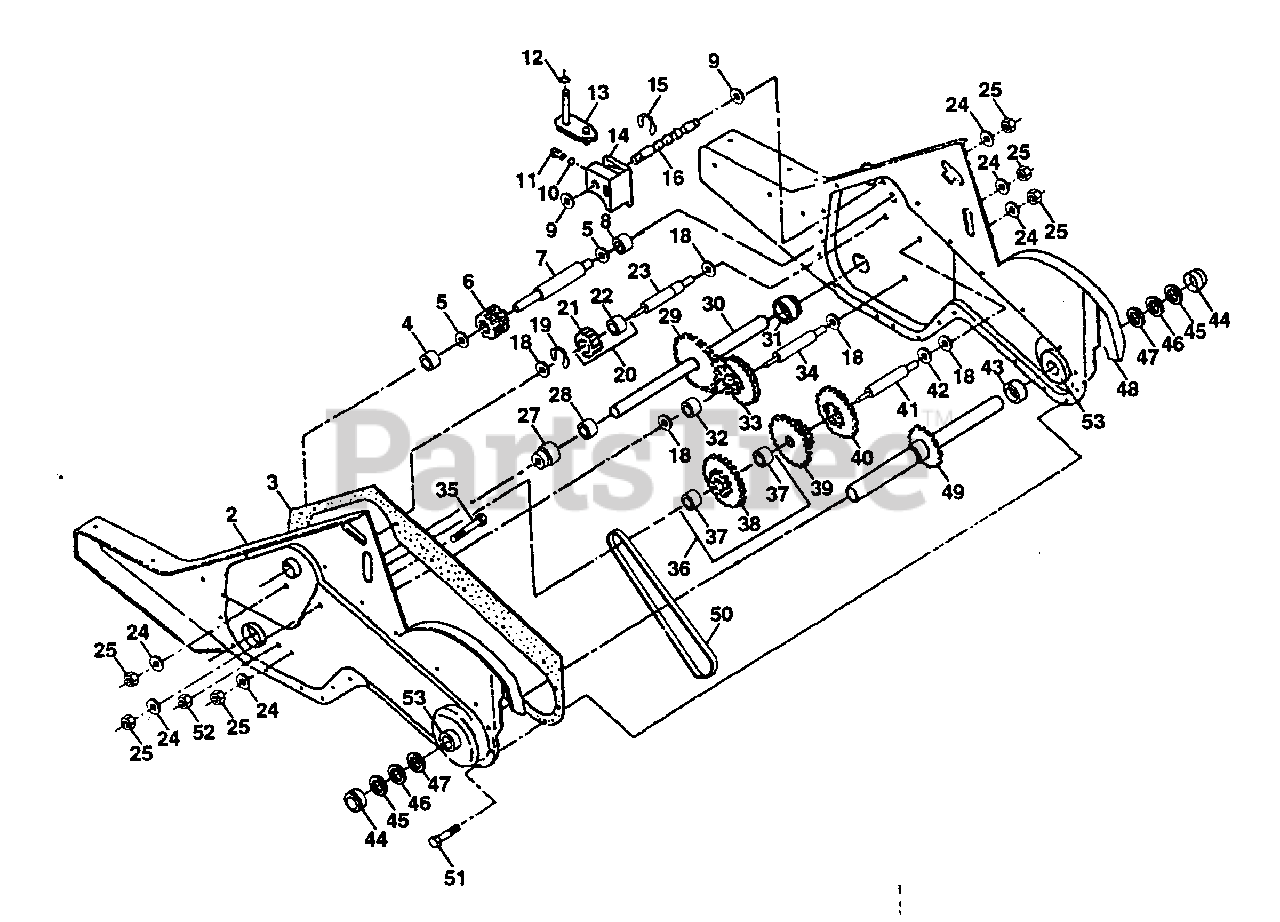

TRANSMISSION Parts Diagram

  • Title

1

Electrolux/AYP 532140537

Transmission Assembly (Includes Key Nos. 2-52)
(Superseded to 532137353)

$849.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532139544

Gearcase, L.H. w/Bearing (Includes Key No. 4)
(Superseded to 532121147)

$849.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532106211

Gasket, Gearcase
(Superseded to 532161963)

$25.99

$

In Stock, Qty 13

0

4

Electrolux/AYP 532005020

Bearing, Needle

$17.99

$

In Stock, Qty 16

0

5

Electrolux/AYP 532001370

Washer, Thrust 5/8 x 1.10 x 1/32

$6.49

$

In Stock, Qty 17

0

6

Electrolux/AYP 532137335

Pinion, Input
(Superseded to 586196301)

$

$

Not available

7

Electrolux/AYP 532102110

Shaft, Input

$

$

Not available

8

Electrolux/AYP 532124792

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 532102136

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 532124697

Ball, Steel
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 532100371

Spring, Shift, Fork

$7.49

$

In Stock, Qty 13

0

12

Electrolux/AYP 532106160

O-Ring

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532142145

Arm, Shift

$

$

Not available

14

Electrolux/AYP 532008353

Fork, Shift

$34.99

$

In Stock, Qty 10

0

15

Electrolux/AYP 812000039

Ring, Klip

$6.49

$

In Stock, Qty 12

0

16

Electrolux/AYP 532140525

Shaft, Shift
(Superseded to 532154466)

$5.99

$

In Stock, Qty 6

0

18

Electrolux/AYP 532004358

Washer

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 812000040

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532102114

Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22)

$

$

Not available

21

Electrolux/AYP 532102115

Gear, Reverse Idler

$17.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532006803

Bearing, Needle

$10.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 532102111

Shaft, Reverse Idler

$18.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 873610700

Nut, Hex 7/16-20

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532143009

Bearing, Shaft, Ground Drive L.H.
(Superseded to 532431219)

$

$

Not available

28

Electrolux/AYP 532106390

Spacer 0.765 x 1.125 x 1.23

$4.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532102134

Chain #35-50 Pitch

$31.99

$

In Stock, Qty 19

0

30

Electrolux/AYP 532124458

Ground Shaft Assembly
(Superseded to 532150737)

$

$

Not available

31

Electrolux/AYP 532143008

Bearing, Shaft, Ground Drive R.H.

$

$

Not available

32

Electrolux/AYP 532106388

Spacer 0.70 x 1.00 x 1.150

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532102121

Sprocket and Gear Assembly

$

$

Not available

34

Electrolux/AYP 532102112

Shaft, Reduction (2nd)

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532102101

Screw, Whiz, Lock 5/16-18 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532137300

Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38)

$

$

Not available

37

Electrolux/AYP 532124791

Bearing, Needle
(Superseded to 532004422)

$6.49

$

In Stock, Qty 11

0

38

Electrolux/AYP 532137301

Sprocket, Tine
(Superseded to 532137300)

$

$

Not available

39

Electrolux/AYP 532105345

Gear, Cluster, Red 1st & 2nd
(Superseded to 532131527)

$

$

Not available

40

Electrolux/AYP 532105346

Gear, Reverse

$27.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532008358

Shaft, Reduction (1st)

$14.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532004220

Washer, Thrust

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532106146

Spacer 1.01 x 1.75 x 0.760

$34.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 532009672

Cup, Formed
(Superseded to 532155236)

$7.49

$

In Stock, Qty 10

0

45

Electrolux/AYP 532102144

Ring, Spiral

$7.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532140576

Seal, Ring, Rubber

$

$

Not available

47

Electrolux/AYP 532124698

Seal, Oil
(Superseded to 532007393)

$6.49

$

In Stock, Qty 7

0

48

Electrolux/AYP 532139546

Gearcase, R.H. w/Bearing (Includes Key No. 8)
(Superseded to 532150700)

$

$

Not available

49

Electrolux/AYP 532132688

Shaft, Tine
(Superseded to 532432058)

$

$

Not available

50

Electrolux/AYP 532106147

Chain, Roller #50-50 Pitch

$66.99

$

In Stock, Qty 5

0

51

Electrolux/AYP 817580408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532122204

Kit, Bearing
(Superseded to 532165140)

$93.99

$

In Stock, Qty 6

0

Electrolux/AYP 532006066

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
