PP RT8 K - Poulan Tiller (1995) TINE SHIELD Parts Diagram

Tiller

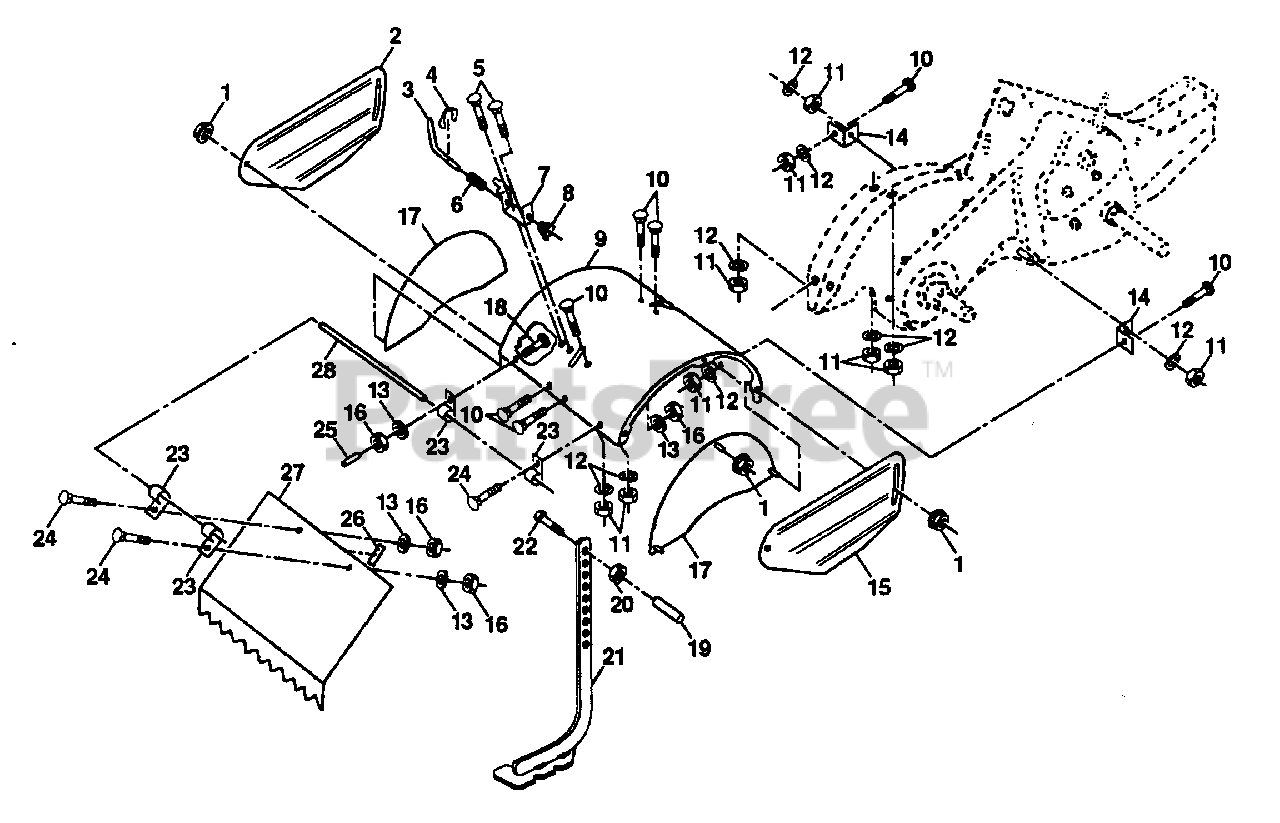

TINE SHIELD Parts Diagram

  • Title

1

Electrolux/AYP 898000129

Nut, Flange 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 532108711

Shield, Side, Outer, L.H.

$

$

Not available

3

Electrolux/AYP 532008393

Pin, Depth Stake

$31.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000036

Ring, Klip

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 872140508

Bolt, Carriage 5/16-18 x 1
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

6

Electrolux/AYP 532008394

Spring

$7.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532008392

Bracket, Latch

$

$

Not available

8

Electrolux/AYP 532109230

Spring, Depth Stake

$6.49

$

In Stock, Qty 12

0

9

Electrolux/AYP 532144566

Shield, Tine

$

$

Not available

10

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 810040500

Washer, Lock 5/16

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 532008386

Bracket, Shield Tine

$

$

Not available

15

Electrolux/AYP 532108710

Shield, Side, Outer R.H.

$

$

Not available

16

Electrolux/AYP 873220400

Nut, Fin, Hex, 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 532144568

Shield, Side

$

$

Not available

18

Electrolux/AYP 872040410

Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532102701

Grip

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 532138420

Stake, Depth
(Superseded to 138420)

$68.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 874930632

Bolt, Hex 3/8-16 x 2

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532004440

Hinge

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 872140408

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532124717

Cap, Vinyl
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532109227

Pad, Idler

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532144567

Shield, Leveling

$

$

Not available

28

Electrolux/AYP 532138609

Pin, Hinge

$6.49

$

Usually ships in 3-10 days

0
