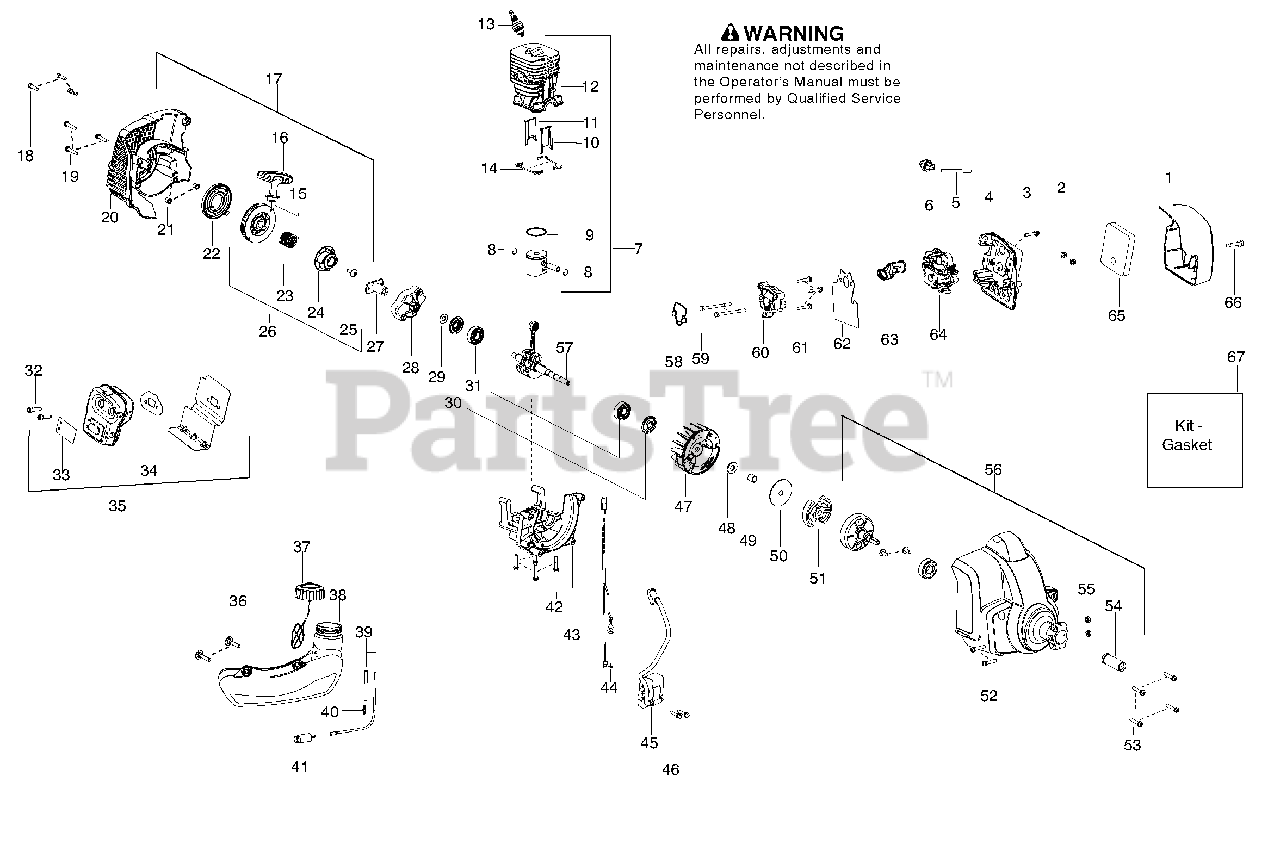

PPB 335 - Poulan String Trimmer (2009-01) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 545189001

Cover - Airbox

$8.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530016101

Nut - Carb. Screw

$6.49

$

In Stock, Qty 8

0

3

Electrolux/AYP 530016301

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 545188901

Base - Airbox

$

$

Not available

5

Fuel line - Purge Bulb (Ref. 39)

$

$

Not available

6

Electrolux/AYP 530047721

Assy - Purge Bulb

$6.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 545008046

Kit - Piston/Cylinder

Note: (Incl. 8,9,10,11,12)

$

$

Not available

8

Electrolux/AYP 545194801

Retainer - Piston pin

$3.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 545194601

Ring - Piston

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 545194901

Insert - Front Transfer Port

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 545195001

Insert - Rear Transfer Port

$

$

Not available

12

Electrolux/AYP 545181801

Cylinder - Machined

$

$

Not available

13

Electrolux/AYP 952030249

Spark Plug (RCJ- 6Y)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 545008044

Seal - Cylinder (Kit)

$10.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 545029901

Kit - Rope

$14.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 545208401

Handle - Starter

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 545212701

Assy - Starter/Shroud

Note: (Incl. 15,16,20,21,22,26)

$31.99

$

In Stock, Qty 8

0

18

Electrolux/AYP 530016449

Screw M4 x 1.75

$6.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 530015897

Screw m5x25mm

$6.49

$

In Stock, Qty 19

0

20

Electrolux/AYP 545216101

Assy - Starter Hsg. w/eyelet

$

$

Not available

21

Electrolux/AYP 545185301

Spacer

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 545008013

Kit - Starter Spring

$6.49

$

In Stock, Qty 5

0

23

Electrolux/AYP 545188301

Spring - Starter Hub

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 545188001

Hub - Starter

$6.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 545112801

Screw m6

$4.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 545008049

Kit - Starter Pulley

$31.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 545188201

Coupling - Starter

Note: (Incl. 23,24,25)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545188701

Assy - Starter Cup

$7.49

$

In Stock, Qty 5

0

29

Electrolux/AYP 530015828

Washer - Flat

$4.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 545008044

Seal - Crankshaft (kit)

$10.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 545013401

Bearing - Crankshaft

$10.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 12

0

33

Electrolux/AYP 545008070

Kit - Spark Arrestor
(Superseded to 545224001)

$4.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 545008044

Gasket - Muffler (kit)

$10.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 545180701

Assy - Muffler

Note: (Incl. 32,33,34)

$18.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530016445

Screw - Tank Retainer

$6.49

$

In Stock, Qty 6

0

37

Electrolux/AYP 545215901

Assy - Fuel Cap w/ret.
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 545182101

Assy - Tank
(Superseded to 578942701)

Note: Incl. 37, 39,40,41)

$

$

Not available

39

Electrolux/AYP 530069599

Kit - Fuel line

Note: (Incl. 40)

$7.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530023877

Fitting - Fuel Line

$4.99

$

In Stock, Qty 14

0

41

Electrolux/AYP 530095646

Assy - Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 530015897

Screw - m5x25mm

$6.49

$

In Stock, Qty 19

0

43

Electrolux/AYP 545181901

Crankcase

$21.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 545191601

Assy - Leadwire

$4.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 545189701

Module - Ignition

$37.99

$

In Stock, only 4 left!

0

46

Electrolux/AYP 530016357

Screw 8-32

$6.49

$

In Stock, Qty 5

0

47

Electrolux/AYP 545120401

Flywheel

$14.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530016463

Washer

$4.99

$

In Stock, only 4 left!

0

49

Electrolux/AYP 530057852

Spacer - Flywheel

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530094189

Washer - Clutch

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 545008038

Kit - Clutch Assy.
(Superseded to 530055122)

$13.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 530015774

Screw 10-24 x 1"

$6.49

$

In Stock, only 3 left!

0

53

Electrolux/AYP 530015897

Screw M5 x 25mm

$6.49

$

In Stock, Qty 19

0

54

Electrolux/AYP 545186401

Guide - Clutch Drum

$

$

Not available

55

Electrolux/AYP 530015768

Locknut 10-24

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 545212401

Assy - Fan Housing

Note: (Incl. 52,54,55)

$

$

Not available

57

Electrolux/AYP 545008047

Kit - Crankshaft Assy.
(Superseded to 545194001)

$39.22

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 545008044

Seal - Cyl./Adapter (kit)

$10.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 530016418

Bolt M5 x .80

$4.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 545194501

Adaptor - Carburetor
(Superseded to 575391501)

$10.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 530016441

Screw .20 x 32

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 545008044

Gasket - Carb./Adapter (kit)

$10.99

$

In Stock, only 2 left!

0

63

Electrolux/AYP 545190501

Boot - Carb.

$4.99

$

In Stock, Qty 6

0

64

Electrolux/AYP 545008054

Kit - Carburetor
(Superseded to 525810501)

$

$

Not available

65

Electrolux/AYP 545195901

Filter - Air

$4.99

$

In Stock, only 4 left!

0

66

Electrolux/AYP 530016465

Bolt - Knob

$4.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 545008044

Kit - Gasket

Note: (Incl. 14,30,34,58,62)

$10.99

$

In Stock, only 2 left!

0
