PPF-280 - Echo Pole Saw (SN: E09511001001 - E09511999999) Gear Case Parts Diagram

Pole Saw

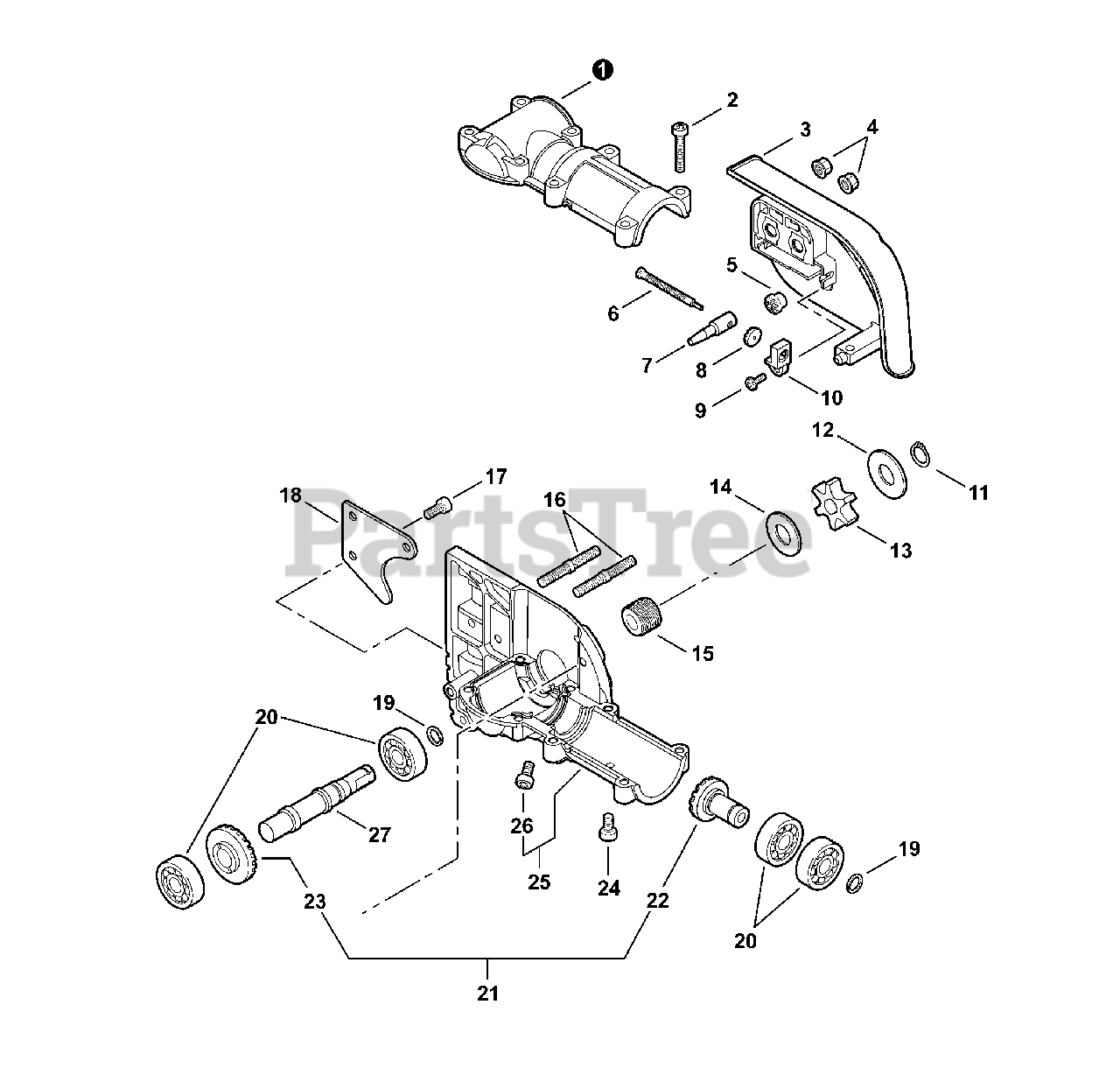

Gear Case Parts Diagram

  • Title

1

Echo C531000010

CASE, GEAR - UPPER

$87.99

$

In Stock, only 1 left!

0

2

Echo V805000170

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$7.49

$

In Stock, Qty 20+

0

4

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

5

Echo V651000320

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 20+

0

6

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

7

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

8

Echo V651000310

GEAR - 14 TOOTH

$1.49

$

In Stock, Qty 20+

0

9

Echo V252000040

SCREW - 4×8

$1.49

$

In Stock, Qty 20+

0

10

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

0

11

Echo V583000090

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

12

Echo V307000160

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

13

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 18

0

14

Echo 17501439131

WASHER

$2.49

$

In Stock, Qty 20+

0

15

Echo V652000021

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

16

Echo V224000040

STUD, GUIDE BAR

$1.49

$

In Stock, Qty 20+

0

17

Echo V253000200

SCREW - 5×10

$0.99

$

In Stock, Qty 9

0

18

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

0

19

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

20

Echo 9404206001

BEARING, BALL - 6001

$9.99

$

In Stock, only 2 left!

0

21

Echo P021009731

GEAR SET
(Superseded to P021009732)

Note: Includes Items 22-23

$74.99

$

In Stock, only 1 left!

0

22

Echo V651000230

GEAR, BEVEL - 15 TOOTH

$31.99

$

Usually ships in 2-4 days

0

23

Echo V651000201

GEAR, BEVEL - 23 TOOTH
(Superseded to P021009732)

$74.99

$

In Stock, only 1 left!

0

24

Echo V805000130

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

25

Echo C531000460

CASE, GEAR - LOWER

Note: Includes Item 26

$58.99

$

In Stock, only 1 left!

0

26

Echo V805000130

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

27

Echo C534000430

GEAR, SHAFT

$15.99

$

Usually ships in 2-4 days

0
