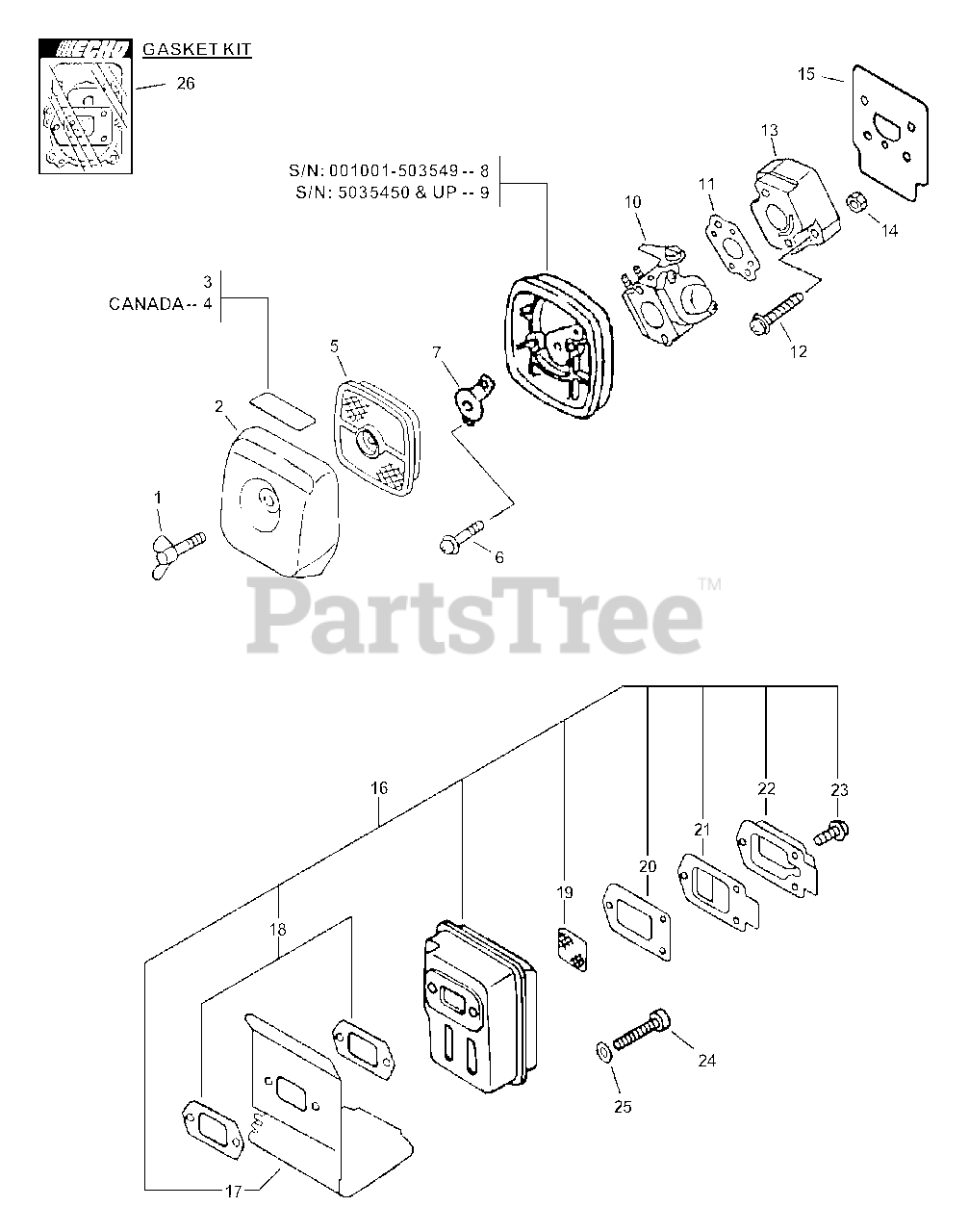

PPT-2100 - Echo Pole Saw (Type 1E) Intake, Exhaust Parts Diagram

Pole Saw (Type 1E)

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

3

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 20+

0

4

Echo 89012106360

LABEL - CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 15

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

Note: S/N: 001001-503549

$19.99

$

In Stock, Qty 6

0

9

Echo 13030744530

CASE, AIR FILTER
(Superseded to 13030706960)

Note: S/N: 5035450 & UP

$19.99

$

In Stock, Qty 6

0

10

Echo 12520013311

CARBURETOR C1U-K52
(Superseded to 12520013312)

$78.99

$

In Stock, Qty 20+

0

11

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

12

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 16

0

13

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 15

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

16

Echo 14580054130

MUFFLER ASSY
(Superseded to 14580054131)

Note: Includes ITEMS 17-23

$61.99

$

Usually ships in 2-4 days

0

17

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 20+

0

18

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

21

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

22

Echo 14586354130

GUIDE, EXHAUST - OUTER

$3.99

$

Usually ships in 2-4 days

0

23

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

24

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

$34.99

$

Usually ships in 2-4 days

0
