PPT-230 - Echo Pole Saw (SN: E08312001001 - E08312999999) Clutch, Fan Case Parts Diagram

Pole Saw

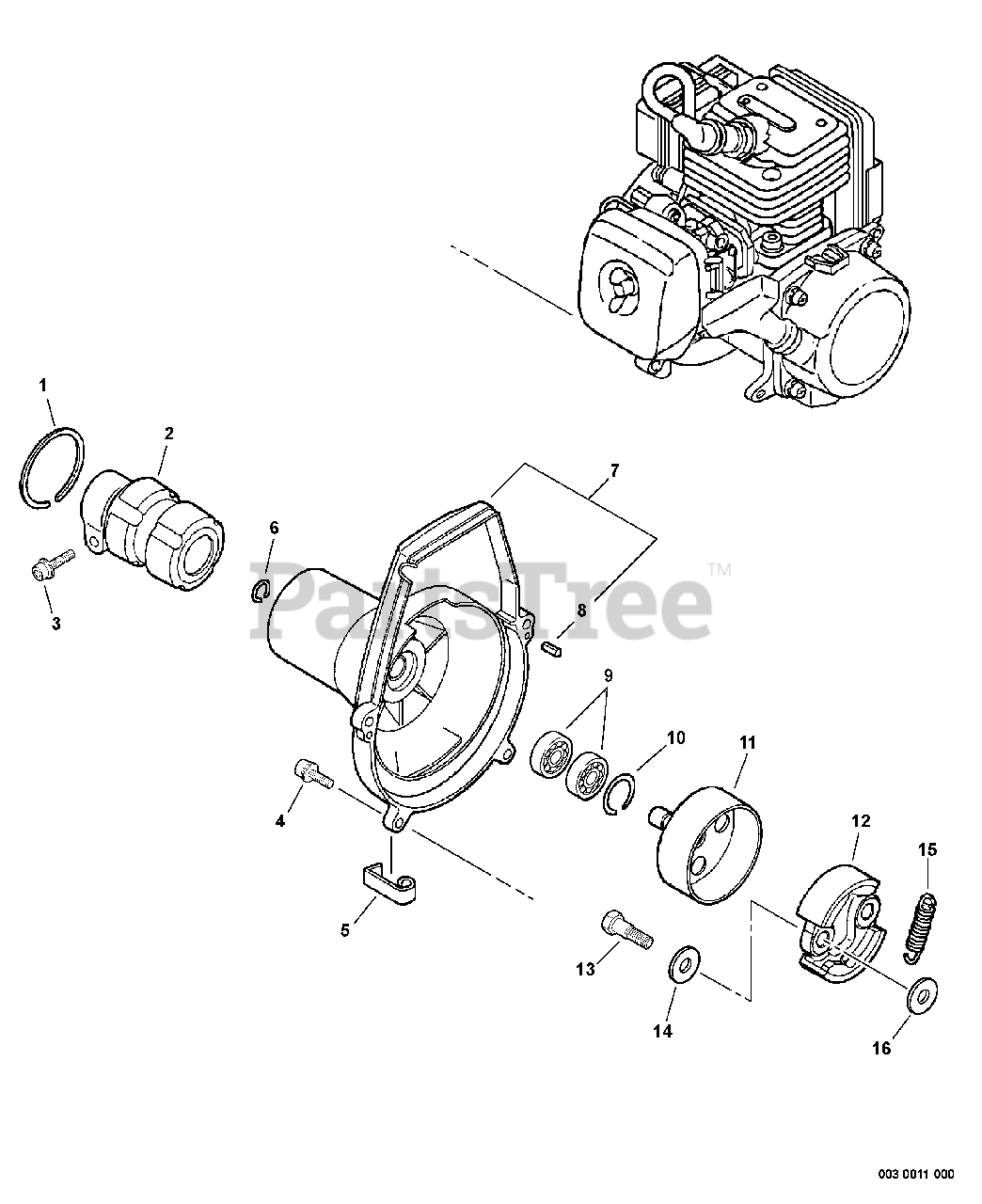

Clutch, Fan Case Parts Diagram

  • Title

1

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 5

0

2

Echo 61092255931

CLAMP, MAIN PIPE

$33.99

$

In Stock, only 3 left!

0

3

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

4

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 19

0

5

Echo 17811106230

CLIP

$2.49

$

Usually ships in 2-4 days

0

6

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

7

Echo A172000120

FAN CASE ASSY - ORANGE
(Superseded to A172000080)

Note: Includes ITEM 8

$57.99

$

Usually ships in 2-4 days

0

8

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

9

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 20+

0

10

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

11

Echo A556000280

DRUM, CLUTCH

$38.99

$

Usually ships in 2-4 days

0

12

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0

13

Echo 17504656030

BOLT, CLUTCH

$4.99

$

In Stock, Qty 13

0

14

Echo 17504956030

WASHER - SPRING

$1.49

$

In Stock, Qty 20+

0

15

Echo V451000090

SPRING, CLUTCH

$1.99

$

In Stock, Qty 11

0

16

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 20+

0
