PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Fuel System Parts Diagram

Pole Saw (Type 1E)

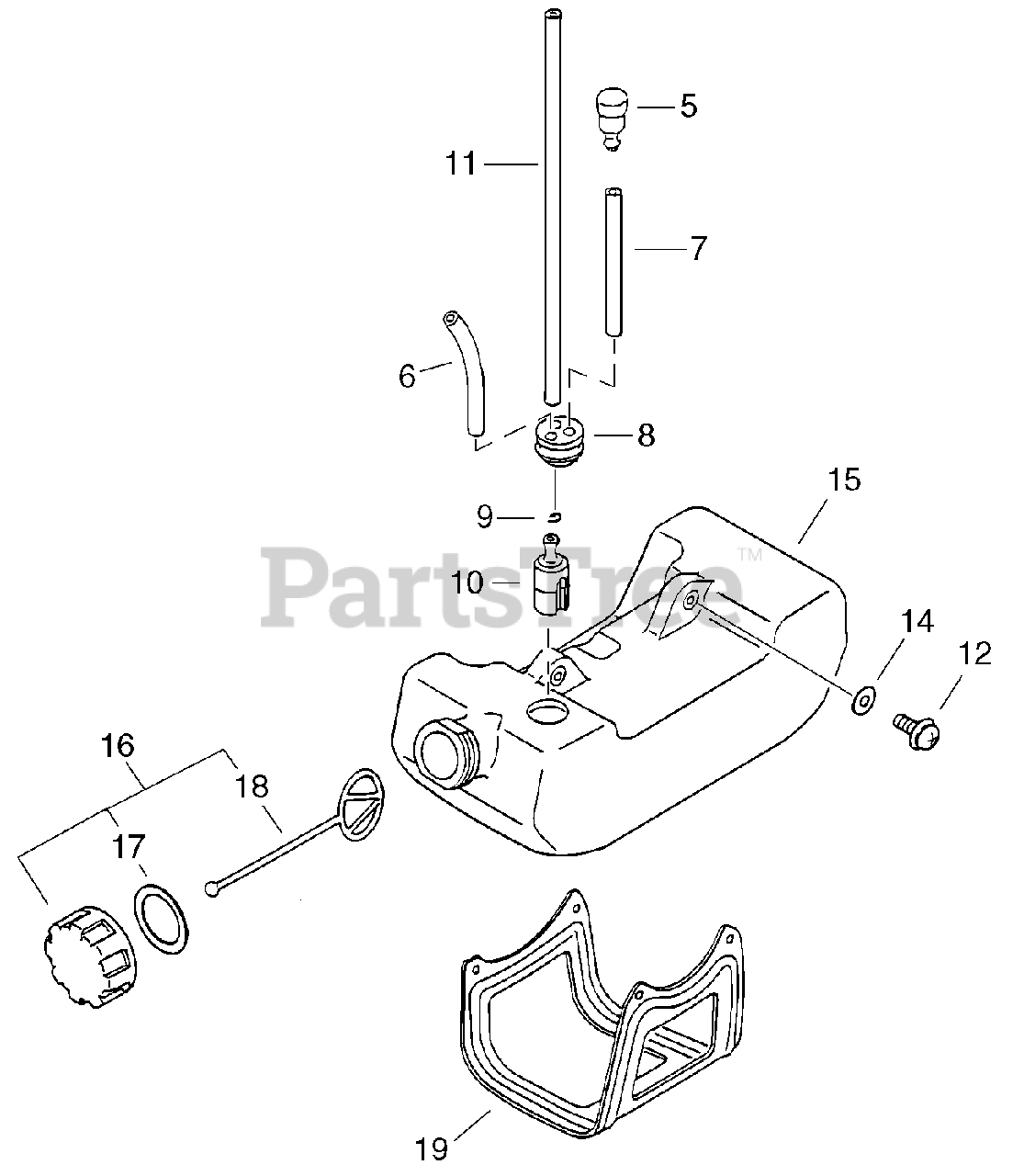

Fuel System Parts Diagram

  • Title

5

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

6

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

7

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

8

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

$1.49

$

In Stock, Qty 18

0

12

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

14

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 13100546831

FUEL TANK ASSY

$15.99

$

In Stock, Qty 18

0

16

Echo 13100408960

CAP ASSY
(Superseded to P100006620)

$7.49

$

In Stock, only 1 left!

0

17

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

18

Echo 13105152430

CONNECTOR, CAP

$1.49

$

In Stock, Qty 5

0

19

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
