PPT-2400 - Echo Pole Saw (Type 1E) (SN: E14536001001 - E14536999999) Main Pipe, Harness Parts Diagram

Pole Saw (Type 1E)

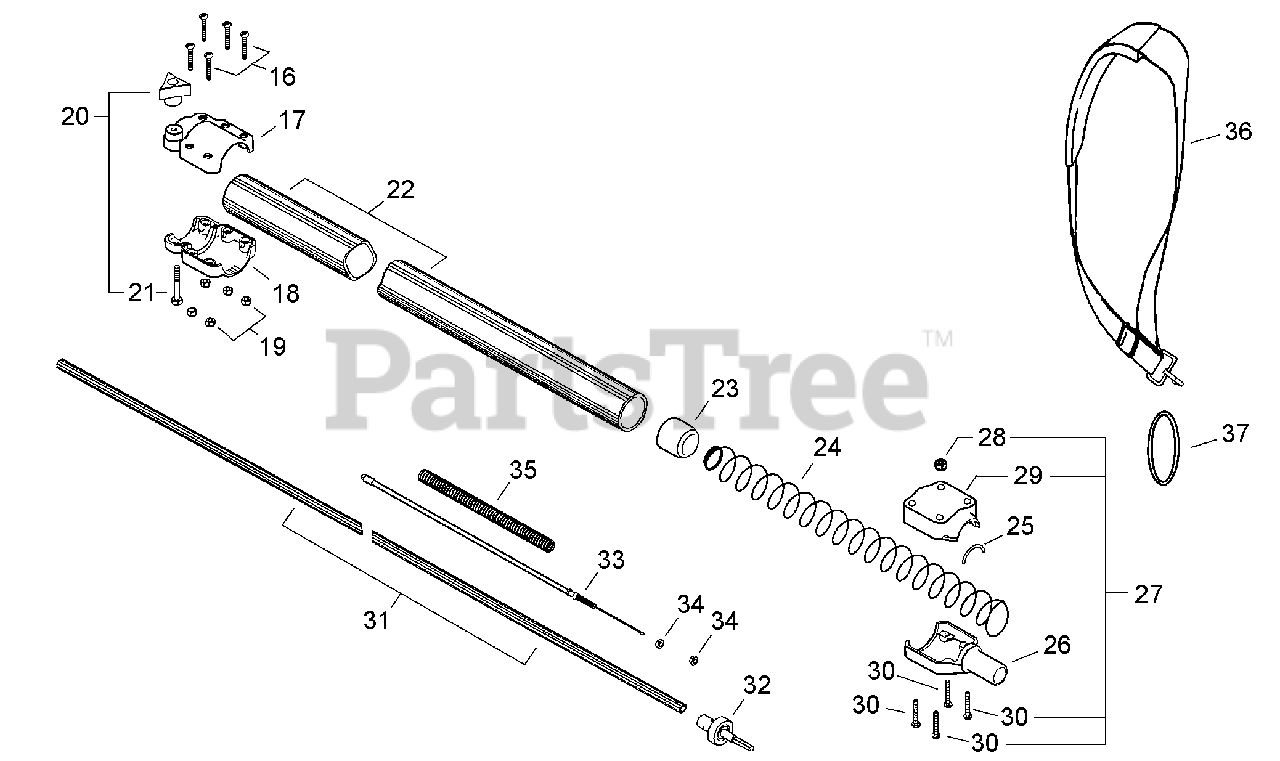

Main Pipe, Harness Parts Diagram

  • Title

16

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 20+

0

17

Echo 61028222460

COLLAR, UPPER

$16.99

$

In Stock, only 1 left!

0

18

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$27.99

$

In Stock, Qty 5

0

19

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

20

Echo 13040622360

THUMBSCREW

$5.99

$

In Stock, Qty 13

0

21

Echo V204000090

BOLT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 61022222360

PIPE, MAIN - ORANGE

$117.99

$

Usually ships in 2-4 days

0

23

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0

24

Echo 10494022560

SPRING

$7.49

$

In Stock, only 1 left!

0

25

Echo 10491022460

CUSHION

$1.99

$

In Stock, only 2 left!

0

26

Echo C510000120

ADAPTER, LOWER SHAFT TUBE

$25.99

$

In Stock, only 1 left!

0

27

Echo P021003540

MAIN PIPE CAP ASSY

$11.99

$

In Stock, only 1 left!

0

28

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

29

Echo C525000000

CAP, MAIN PIPE

$10.99

$

In Stock, Qty 5

0

30

Echo 90005300500

SCREW

$0.99

$

In Stock, only 4 left!

0

31

Echo 61001122061

DRIVESHAFT - LOWER

$46.99

$

Usually ships in 2-4 days

0

32

Echo 61001222361

CONNECTOR, SHAFT

$35.99

$

In Stock, Qty 14

0

33

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 8

0

34

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 10

0

35

Echo 17801622360

TUBE, PROTECTIVE - CORRUGATED

$1.49

$

Usually ships in 2-4 days

0

36

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 12

0

37

Echo 30101652730

RING

$1.49

$

Usually ships in 2-4 days

0
