PPU 140KO (88930) - Snapper Walk-Behind Mower, 14hp Caster Wheel Assembly Parts Diagram

Walk-Behind Mower, 14hp

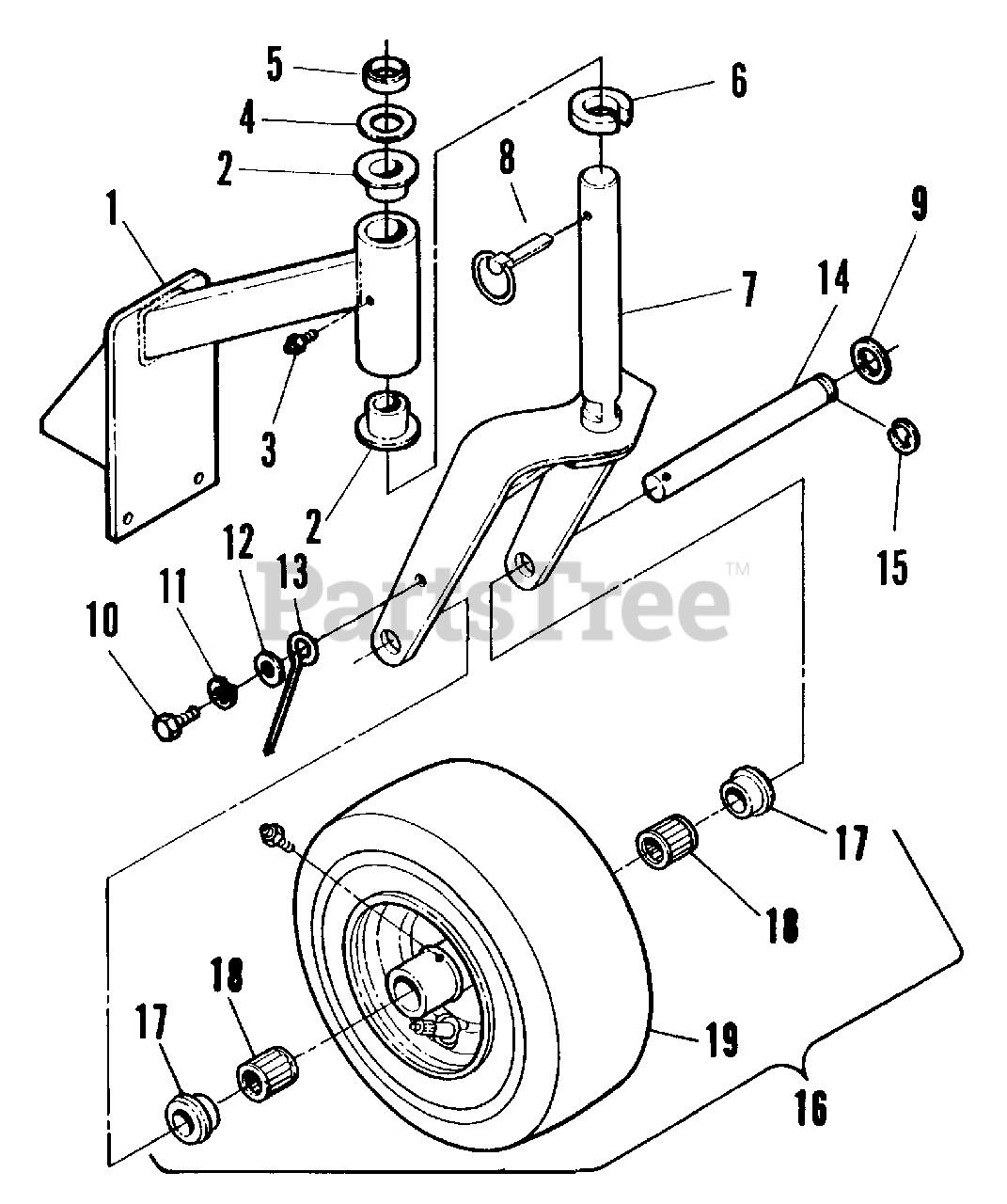

Caster Wheel Assembly Parts Diagram

  • Title

Snapper 7052086

ASSEMBLY, Caster (36" Deck Only)
(Superseded to 7052086YP)

Note: (Includes Items 1, 2 & 3)

$250.99

$

Usually ships in 2-12 days

0

Snapper 52083

ASSEMBLY, Caster (48", 52" & 61" Decks)

Note: (Includes Items 1, 2 & 3)

$

$

Currently unavailable

1

Snapper 7040678

SUPPORT, Caster (36" Deck Only)
(Superseded to 7040678YP)

Note: (Includes Items 2 & 3)

$153.99

$

Usually ships in 2-12 days

0

1

Snapper 7049798

SUPPORT, Caster (48", 52" & 61" Decks)

Note: (Includes Items 2 & 3)

$

$

Currently unavailable

2

Snapper 7023556

BUSHING, Flange
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

3

Snapper 7076998

ZERK, 1/8" NPT Straight
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

4

Snapper 7023747

BUSHING, Machinery, 1"
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

5

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

6

Snapper 7019152

SPACER, Caster
(Superseded to 7019152YP)

$7.49

$

In Stock, Qty 12

0

7

Snapper 7049805

YOKE, Caster

$

$

Not available

8

Snapper 7017711

PIN, Lynch 7/16
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

9

Snapper 7091050

BUSHING, Machinery, 3/4"

$

$

Currently unavailable

10

Snapper 7090603

SCREW, Hex Cap

$2.99

$

In Stock, only 1 left!

0

11

Snapper 7090118

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

12

Snapper 7090517

FLATWASHER, 3/8"
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

13

Snapper 7019289

MOUNT, Caster Axle

$

$

Currently unavailable

14

Snapper 7016460

AXLE, Caster

$

$

Not available

15

Snapper 7012705

E-RING

$

$

Not available

16

Snapper 7052085

WHEEL & TIRE ASSEMBLY
(Superseded to 7052085YP)

Note: (Includes Items 17, 18 & 19)

$113.99

$

Usually ships in 2-12 days

0

17

Snapper 7017786

BEARING, Flange, 3/4"
(Superseded to 7017786YP)

$42.99

$

Usually ships in 2-12 days

0

18

Snapper 7017785

ROLLER BEARING, 3/4" x 1"
(Superseded to 7017785YP)

$16.99

$

In Stock, only 2 left!

0

19

Snapper 7035618

TIRE, 4-Ply Smooth Tread
(Superseded to 7035618SM)

Note: Was 17784

$75.99

$

In Stock, only 3 left!

0
