PR 7Y21CH A - Poulan Pro Walk-Behind Mower (2004-06) Frame Parts Diagram

Walk-Behind Mower

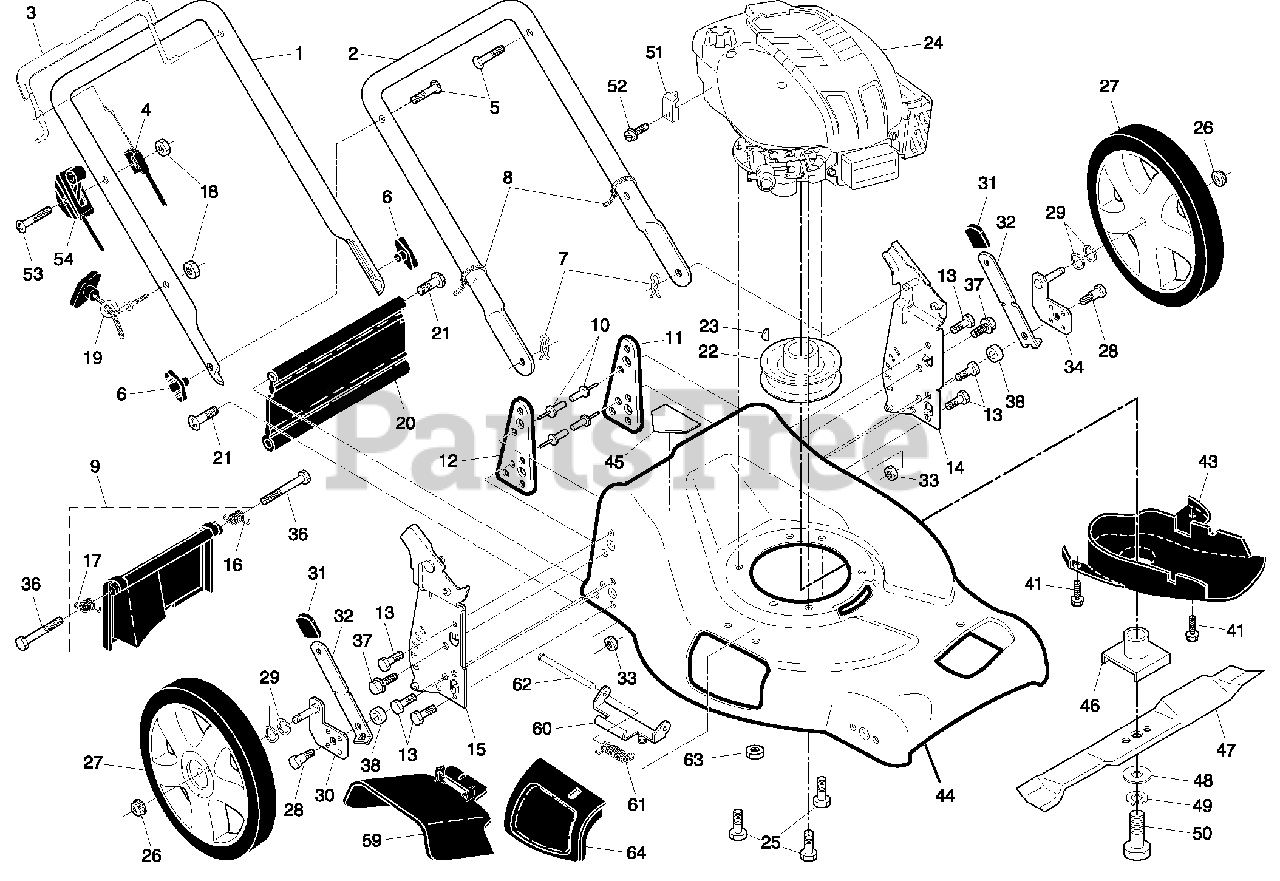

Frame Parts Diagram

  • Title

1

Electrolux/AYP 184587

Control Cable Assembly
(Superseded to 532184588)

$53.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 167387

Bearing, Wheel Adjuster
(Superseded to 532167387)

$7.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 158755

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

5

Electrolux/AYP 175436

V-Belt
(Superseded to 532175436)

$24.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 150495

Spring Retainer
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 191730

Nut, Hex, Flanged 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 6

0

8

Electrolux/AYP 77400

Hubcap
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

9

Murray 145212

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 180766

Wheel & Tire Assembly
(Superseded to 532180775)

$34.99

$

In Stock, Qty 18

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 137054

Pinion
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 180504

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 67725

Washer 1/2
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 170143

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

28

Electrolux/AYP 180329

Drive Cover
(Superseded to 583100101)

$

$

Not available

31

Electrolux/AYP 132010

Nut, Hex, Flanged
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 189407

Drive Pulley
(Superseded to 532194126)

$

$

Not available

35

Electrolux/AYP 172291

Kit, Wheel Adjuster, LH
(Superseded to 532172291)

Note: (Includes Knob and Bearing)

$36.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 180184

Gear Case Assembly (See Breakdown)
(Superseded to 532180184)

$

$

Not available

38

Electrolux/AYP 73800400

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 172290

Kit, Wheel Adjuster, RH
(Superseded to 532172290)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Electrolux/AYP 188985

Grassbag Assembly
(Superseded to 532410667)

$87.99

$

In Stock, only 4 left!

0

55

Electrolux/AYP 175739

Driveshaft Cover
(Superseded to 532175739)

$

$

Not available

57

Electrolux/AYP 188815

Frame, Grassbag
(Superseded to 532194643)

$

$

Not available
