ProCut 16 (H1618B) - Ferris ProCut 16 Front Mount Mower, 16hp Briggs & Stratton (SN: H2166 & Above) Engine & PTO Group Parts Diagram

ProCut 16 Front Mount Mower, 16hp Briggs & Stratton

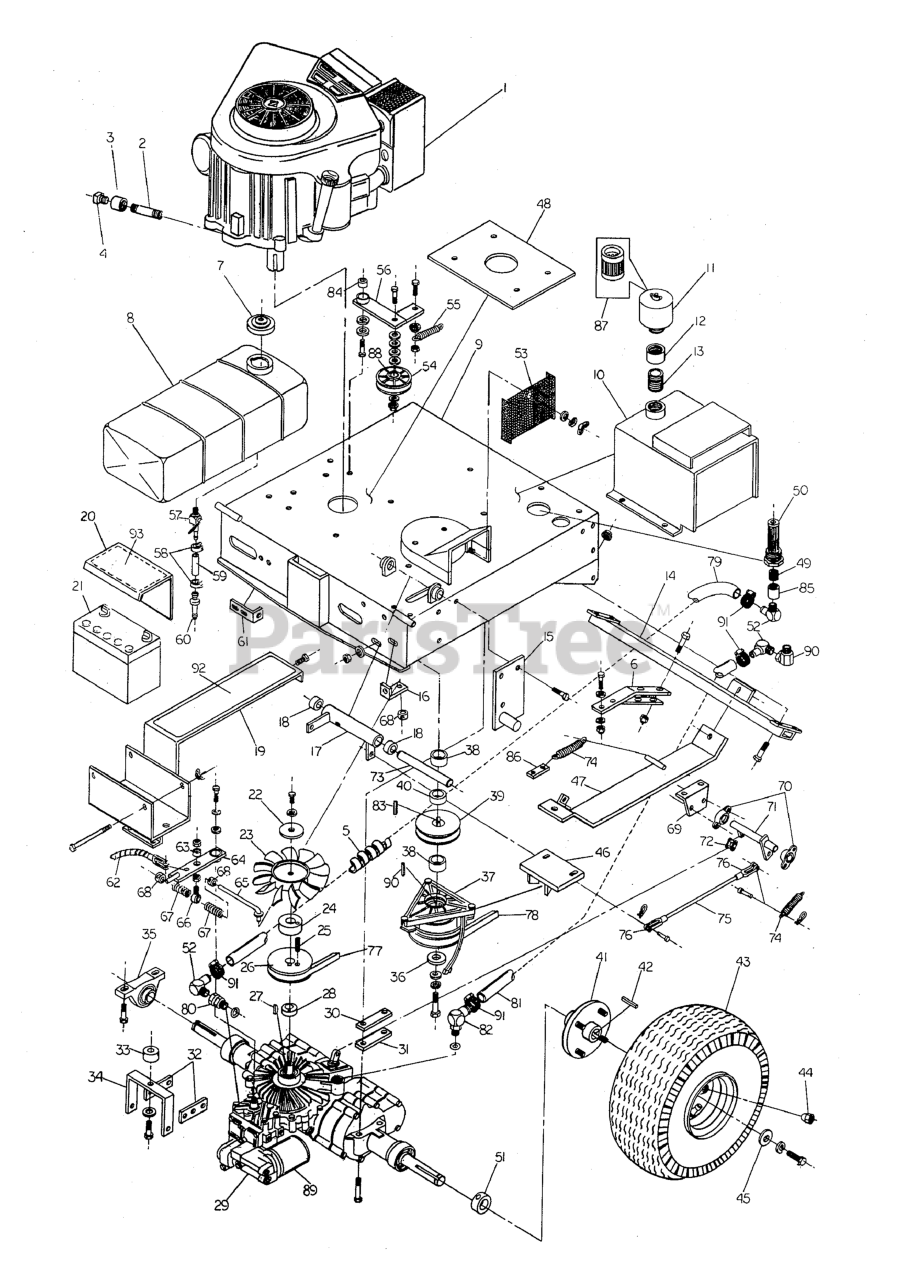

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, 16HP Briggs & Stratton (Model 303777)

$

$

Not available

2

Ferris 21122

Pipe Nipple

$

$

Currently unavailable

3

Ferris 20862

Coupler

$

$

Currently unavailable

4

Ferris 5025049

Pipe Plug

$

$

Currently unavailable

5

Ferris 5050837X1

Plastic Hose Coil

$

$

Currently unavailable

6

Ferris 5042287

Torque Arm

$

$

Currently unavailable

7

Ferris 5020797

Gas Cap
(Superseded to 5020797FS)

$60.99

$

In Stock, only 1 left!

0

8

Ferris 5020796

Fuel Tank, 4 Gallon

$

$

Currently unavailable

8

Ferris 5041606B

Gas Tank Strap

$19.99

$

Usually ships in 2-12 days

0

9

Ferris 30451

Engine Deck

$1258.99

$

Usually ships in 2-12 days

0

10

Ferris 5030383

Hydro Tank
(Superseded to 5030774B)

$284.99

$

Usually ships in 2-12 days

0

11

Ferris 5021080

Air Filter Assembly
(Superseded to 5021871)

$37.99

$

Usually ships in 2-12 days

0

12

Ferris 5021087

1" Coupler

$

$

Currently unavailable

13

Ferris 5021123

Close Nipple

$

$

Currently unavailable

14

Ferris 5042160B

Engine Deck Cross Member

$

$

Currently unavailable

15

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

$47.99

$

Usually ships in 2-12 days

0

15

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

$51.99

$

Usually ships in 2-12 days

0

16

Ferris 5042328B

Spring Anchor

$20.99

$

Usually ships in 2-12 days

0

17

Ferris 42162

Parking Brake Bell Crank

$

$

Currently unavailable

18

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 42163

Gas Tank Mount

$

$

Currently unavailable

20

Ferris 5041773

Battery Cover

$55.99

$

Usually ships in 2-12 days

0

21

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

$

$

Not available

22

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

23

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

24

Ferris 5042128

Fan Pulley Spacer

$68.99

$

Usually ships in 2-12 days

0

25

Roller Pin

$

$

Not available

26

Ferris 5042130

PULLEY (3/4" Bore)

$85.99

$

Usually ships in 2-12 days

0

27

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5042120

Hydro Input Pulley Spacer

$6.49

$

Usually ships in 2-12 days

0

29

Ferris 5021068

850 Transaxle
(Superseded to 5021425KITSM)

$5153.99

$

Usually ships in 2-12 days

0

30

Ferris 5042175

1/4" Spacer (Red)

$

$

Currently unavailable

31

Ferris 5042176

3/16" Spacer (Black)

$

$

Currently unavailable

32

Ferris 5042177B

BRACKET, Transmission Support

$21.99

$

Usually ships in 2-12 days

0

33

Ferris 5041878

SPACER, .39 x 1.75 x .88

$

$

Currently unavailable

34

Ferris 42178

Transmission Torque Bracket

$

$

Currently unavailable

35

Ferris 5021095

BEARING, PILLOW BLOCK, 1
(Superseded to 5021095SM)

$75.99

$

Usually ships in 2-12 days

0

36

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

37

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

38

Ferris 5042304

SPACER, 1.13 X 2.00 X .37

$12.99

$

Usually ships in 2-12 days

0

39

Ferris 5042129

PULLEY, Crankshaft

$94.99

$

Usually ships in 2-12 days

0

40

Ferris 5042303

SPACER, 1.13 X 1.50 X .50

$

$

Currently unavailable

41

Ferris 5030480

DRIVE HUB DETAIL

$107.99

$

Usually ships in 2-12 days

0

42

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

43

Ferris 5021045

TIRE & WHEEL ASSEMBLY, 18 X 8.5 X 8

$251.99

$

Usually ships in 2-12 days

0

44

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

45

Ferris 5042131

Retaining Spacer
(Superseded to 5042131FS)

$6.99

$

Usually ships in 2-12 days

0

46

Ferris 42421

Electric Clutch Anchor

$

$

Currently unavailable

47

Ferris 5042165

Skid Plate

$

$

Currently unavailable

48

Ferris 42451

Engine Plate
(Superseded to 7054464BMYP)

$222.99

$

In Stock, only 2 left!

0

49

Ferris 5021163

NIPPLE, 1/2" NPT Close

$

$

Not available

50

Ferris 5021082

STRAINER

$68.99

$

Usually ships in 2-12 days

0

51

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

52

Ferris 5021160

FITTING, 90 Degrees 1/2" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

53

Ferris 5042341

Hydro Intake Screen

$

$

Currently unavailable

54

Ferris 5021079

Idler Pulley
(Superseded to 5021079SM)

$30.99

$

In Stock, only 2 left!

0

55

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, only 2 left!

0

56

Ferris 5042169B

IDLER ARM ASSEMBLY, Complete

$71.99

$

Usually ships in 2-12 days

0

57

Ferris 5020983

Fuel Shut-Off Valve

$36.99

$

Usually ships in 2-12 days

0

58

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

59

Fuel Line

$

$

Not available

60

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

In Stock, only 2 left!

0

61

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

62

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

63

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

64

Ferris 5042319B

TRANSMISSION CONTROL ARM

$109.99

$

Usually ships in 2-12 days

0

65

Ferris 5042329

ROD, NEUTRAL SPRING WELDMENT
(Superseded to 5042329SM)

$

$

Not available

66

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

67

Ferris 5021102

SPRING, Compression
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

68

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

69

Ferris 5042173

Bearing Mount Parking Brake

$27.99

$

Usually ships in 2-12 days

0

70

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

71

Ferris 42174

Parking Brake Jackshaft

$

$

Currently unavailable

72

Ferris 5020544

CONNECTOR, #50 Chain Link

$

$

Currently unavailable

73

Ferris 5050501X36

3/4" Shaft

$

$

Currently unavailable

74

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

75

Ferris 5042156

Linkage Rod

$

$

Currently unavailable

76

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

77

Ferris 5021105

BELT, A-Section
(Superseded to 5021105SM)

$26.99

$

In Stock, only 1 left!

0

78

Ferris 5021162

Belt 48" Deck

$71.99

$

Usually ships in 2-12 days

0

79

Ferris 5050836X1

Inlet Hose

$

$

Currently unavailable

80

Ferris 5021166

FITTING, 7/8" O-Ring Straight Swivel
(Superseded to 5021166SM)

$13.99

$

Usually ships in 2-12 days

0

81

Ferris 5050836X2

Return Hose

$

$

Currently unavailable

82

Ferris 5021161

FITTING, 90 Degrees 7/8" O-Ring

$43.99

$

Usually ships in 2-12 days

0

83

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

84

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

85

Ferris 5020985

COUPLER, 1/2" NPT

$

$

Not available

86

Ferris 5042195

Dump Valve Lever

$

$

Currently unavailable

87

Ferris 5021080X1

Air Filter Element
(Superseded to 5021871SM)

$37.99

$

Usually ships in 2-12 days

0

88

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

89

Ferris 5021068X1

FILTER, Transmission Oil

$47.99

$

Usually ships in 2-12 days

0

90

Ferris 5021132

FITTING, 1/2 NPT Swivel, 90 Deg.
(Superseded to 5021132FS)

$21.99

$

Usually ships in 2-12 days

0

91

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 2 left!

0

92

Ferris 5042029

Gas Tank Safety Walk

$24.99

$

Usually ships in 2-12 days

0

93

Ferris 5041775

SAFETY WALK

$

$

Currently unavailable
