ProCut 20 (5900096) - Ferris ProCut 20 Front Mount Mower, 20hp Briggs & Stratton (SN: 7671 & Above) Electrical Schematic - Charging Circuit - Briggs & Stratton (S/N: 11582 & above) Parts Diagram

ProCut 20 Front Mount Mower, 20hp Briggs & Stratton

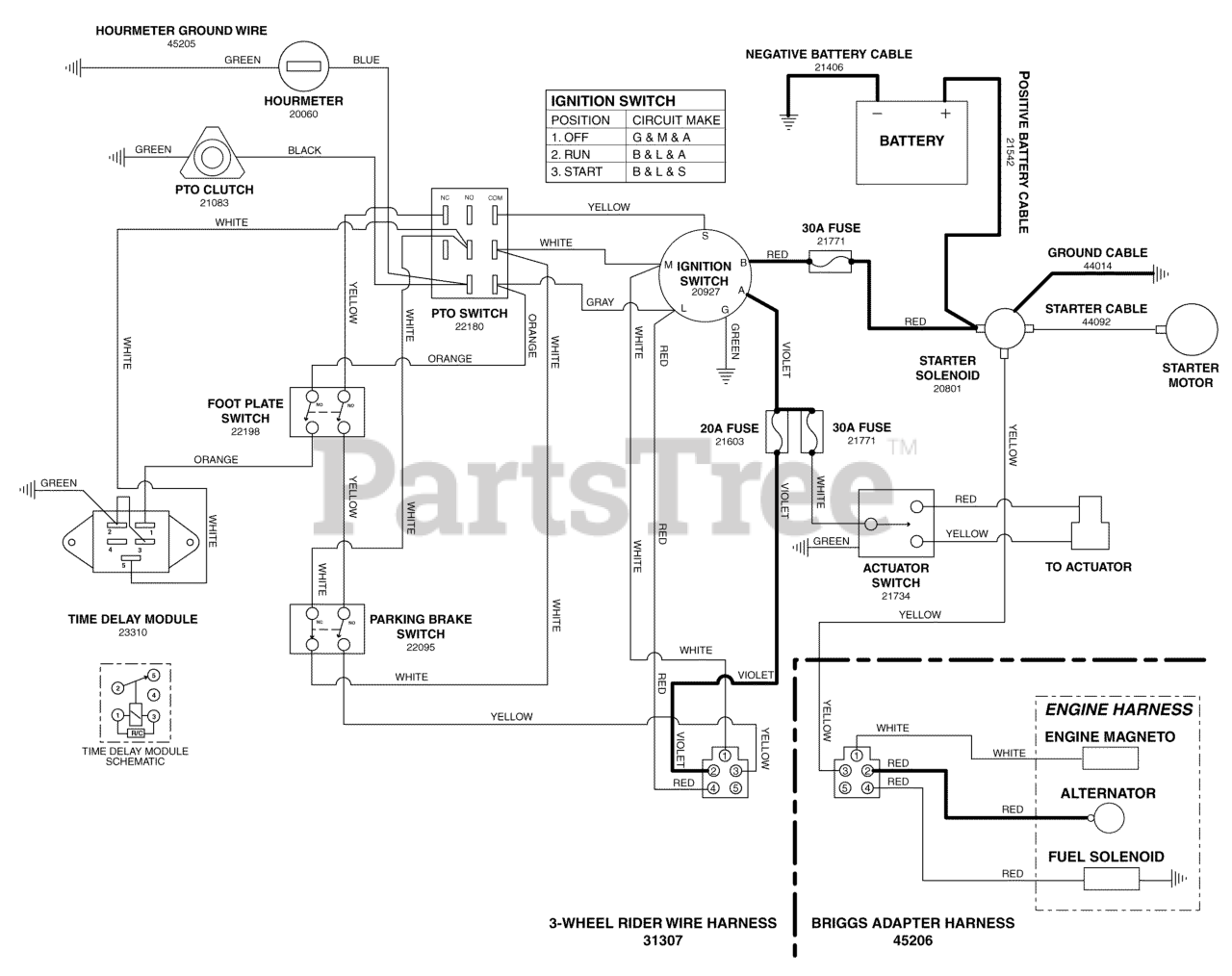

Electrical Schematic - Charging Circuit - Briggs & Stratton (S/N: 11582 & above) Parts Diagram
