ProCut 20 (5900096) - Ferris ProCut 20 Front Mount Mower, 20hp Briggs & Stratton (SN: 7671 & Above) Engine & PTO Group - Briggs Parts Diagram

ProCut 20 Front Mount Mower, 20hp Briggs & Stratton

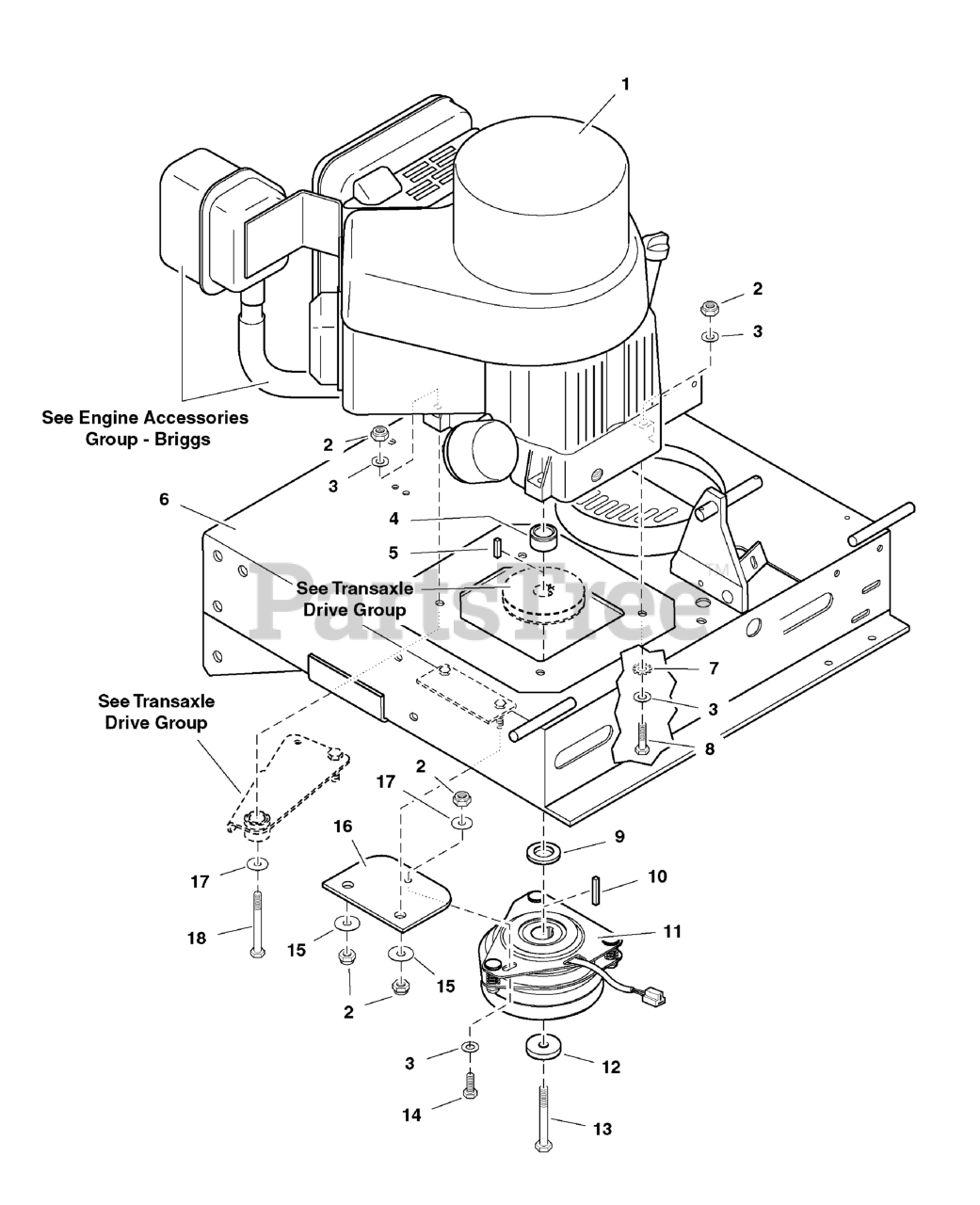

Engine & PTO Group - Briggs Parts Diagram

  • Title

1

ENGINE, 20HP Briggs & Stratton (Model 351777)

$

$

Not available

2

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5043581

CRANKSHAFT SPACER

$23.99

$

Usually ships in 2-12 days

0

5

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5031114B

ENGINE DECK

$

$

Currently unavailable

7

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5043625

SPACER, 1.00 X 1.75 X .38

$21.99

$

Usually ships in 2-12 days

0

10

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

12

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

15

Ferris 5044617

WASHER, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

16

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

17

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025011X24

BOLT, 5/16-18 x 3
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0
