ProCut 20 (5900096) - Ferris ProCut 20 Front Mount Mower, 20hp Briggs & Stratton (SN: 7671 & Above) Tire & Wheel Group Parts Diagram

ProCut 20 Front Mount Mower, 20hp Briggs & Stratton

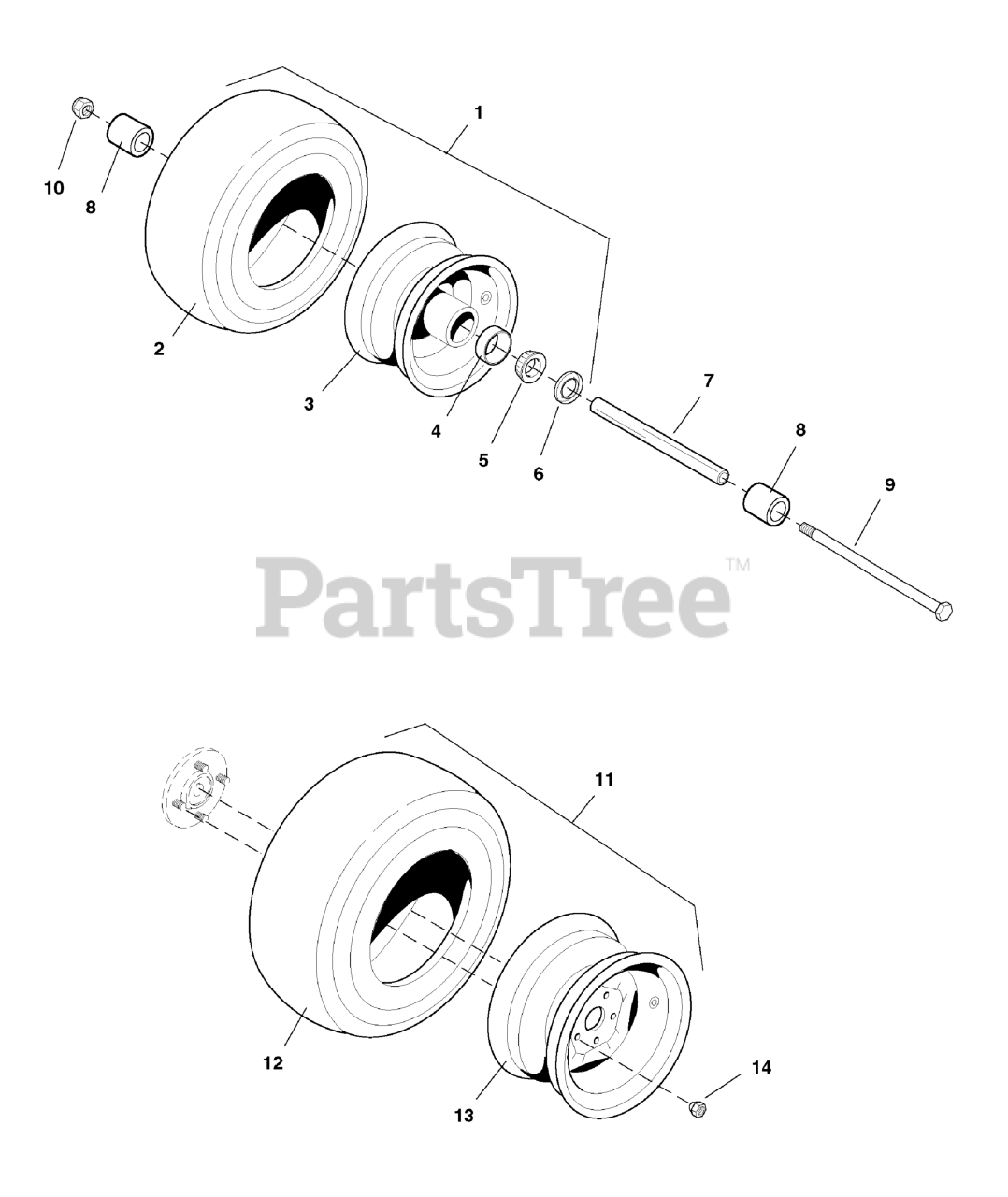

Tire & Wheel Group Parts Diagram

  • Title

1

Ferris 5021150S

WHEEL & TIRE ASSEMBLY, 18 x 7.5 x 8, Silver, Complete
(Superseded to 5021150SSM)

Note: (Includes Ref No. 2 - 6)

$385.99

$

In Stock, only 1 left!

0

2

Ferris 5021215

TIRE, Rear, 18 x 7.5 x 8

$246.99

$

Usually ships in 2-12 days

0

3

Ferris 5021216S

WHEEL ASSEMBLY, 8 x 3.75, Silver, Complete

Note: (Includes Ref No. 4 - 6)

$

$

Not available

4

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

5

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, only 4 left!

0

6

Ferris 5020885

GREASE SEAL
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

7

Ferris 5042314

STEERING TIRE AXLE
(Superseded to 5042314SM)

$39.99

$

Usually ships in 2-12 days

0

8

Ferris 5042315

SPACER, 1.01 X 1.25 X 2.06
(Superseded to 5042315SM)

$21.99

$

Usually ships in 2-12 days

0

9

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5025103

NUT, 5/8-11 Hex Side Lock
(Superseded to 5025103SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5021094S

WHEEL & TIRE ASSEMBLY, 20 x 10 x 8, Complete

Note: (Includes Ref No. 12 & 13)

$248.99

$

Usually ships in 2-12 days

0

12

Ferris 5021204

TIRE, 20 x 10 x 8

$174.99

$

Usually ships in 2-12 days

0

13

Ferris 5021205S

WHEEL ASSEMBLY, 8 x 7

$94.99

$

Usually ships in 2-12 days

0

14

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0
