ProCut 20 (5900099) - Ferris ProCut 20 Front Mount Mower, 23hp Kohler (SN: 7671 & Above) Engine & PTO Group - Kohler Parts Diagram

ProCut 20 Front Mount Mower, 23hp Kohler

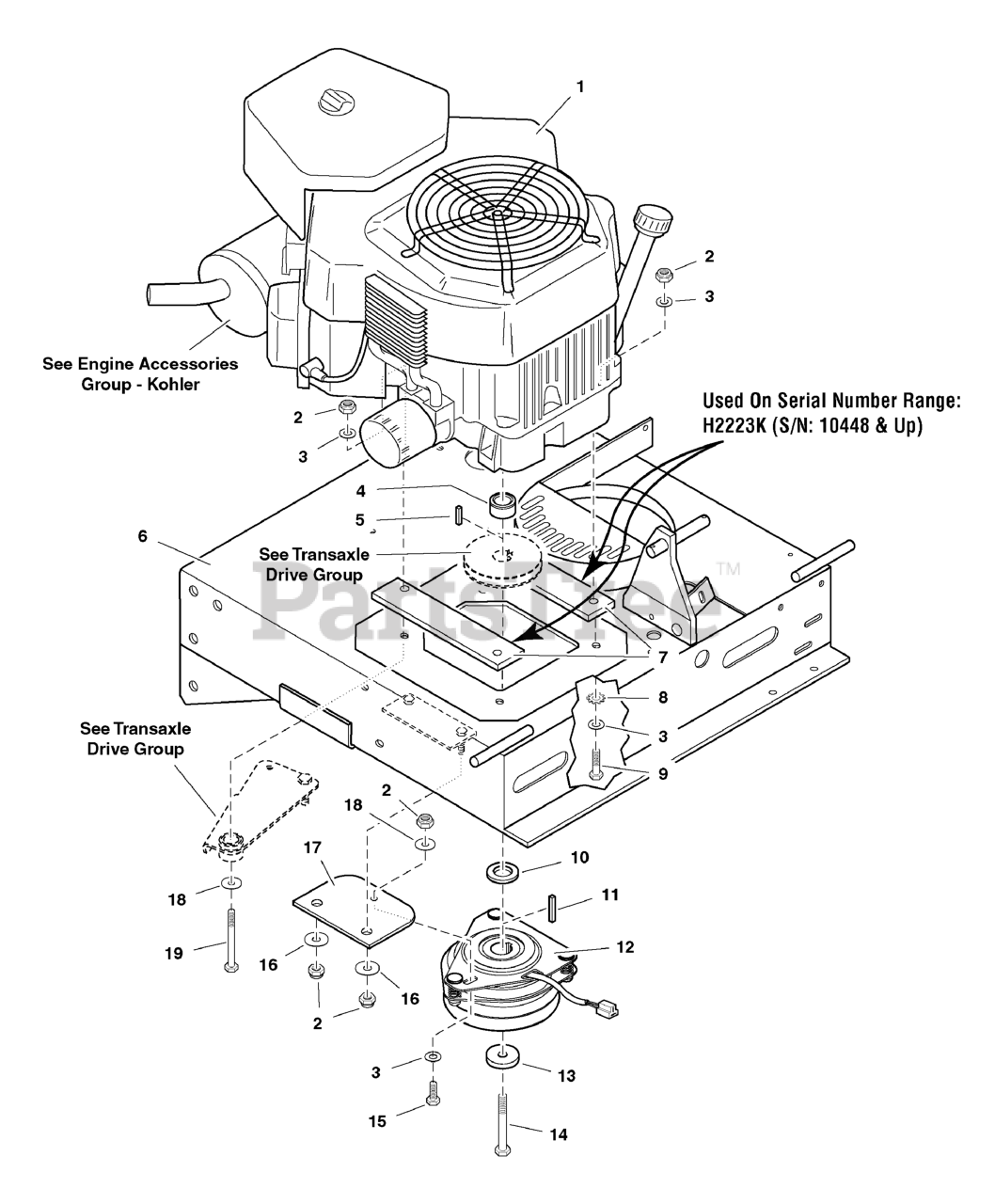

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

ENGINE, 20HP Kohler (Model CV20S)

$

$

Not available

1

ENGINE, 22HP Kohler (Model CV22S)

$

$

Not available

1

ENGINE, 23HP Kohler (Model CV23S)

Note: (H2223K, S/N: 7671 - 10447)

$

$

Not available

1

ENGINE, 23HP Kohler (Model CV23S)

Note: (H2223K, S/N: 10448 & above)

$

$

Not available

2

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5048136

SPACER, 1.13 x 1.75 x 1.25

Note: (H2223K S/N: 10448 & above)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5042840

SPACER, 1.13 X 1.75 X .88

Note: (H2223K, S/N: 7671 - 10447)

$

$

Not available

5

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5031114B

ENGINE DECK

$

$

Currently unavailable

7

Ferris 5045352B

SPACER, Engine Block

Note: (H2223K, S/N: 10448 & above)

$

$

Currently unavailable

8

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X18

BOLT, 5/16-18 x 2-1/4
(Superseded to 5025011X18SM)

Note: (H2223K, S/N: 10448 & above)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

Note: (H2223K, S/N: 7671 - 10447)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5047033

SPACER, 1.13 x 1.75 x 1.03
(Superseded to 5047033SM)

Note: (Used on H2223K, S/N: 11472 & above)

$13.99

$

Usually ships in 2-12 days

0

10

Ferris 5048135

SPACER, 1.13 x 1.75 x .62
(Superseded to 5048135FS)

Note: (S/N: 10448 thru 11471)

$17.99

$

Usually ships in 2-12 days

0

10

Ferris 5042304

SPACER, 1.13 X 2.00 X .37

Note: (H2223K, S/N: 7671 - 10447)

$12.99

$

Usually ships in 2-12 days

0

11

Ferris 5050407X18

KEY, 1/4 SQ. x 2-1/4
(Superseded to 5050407X18SM)

Note: (Used on H2223K, S/N: 11472 & above)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

Note: (S/N: 11471 & below)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5023232

ELECTRIC CLUTCH
(Superseded to 5023232SM)

Note: (Used on H2223K, S/N: 11472 & above)

$744.99

$

Usually ships in 2-12 days

0

12

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

Note: (H2223K, S/N: 11471 & below)

$687.99

$

Usually ships in 2-12 days

0

13

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

14

Ferris 5045289

CRANKSHAFT BOLT, 7/16 x 2-1/2
(Superseded to 5102864)

Note: (H2223K, S/N: 10448 & above)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

Note: (H2223K, S/N: 7671 - 10447)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

16

Ferris 5044617

WASHER, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X26

BOLT, 5/16-18 x 3-1/4
(Superseded to 5025011X26FS)

Note: (H2223K, S/N: 10448 & above)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X24

BOLT, 5/16-18 x 3
(Superseded to 5025011X24SM)

Note: (H2223K, S/N: 7671 - 10447)

$3.99

$

In Stock, only 1 left!

0
