ProCut 20 (H2020O) - Ferris ProCut 20 Front Mount Mower, 20hp Onan (SN: H1360 & Above) 61" Cutter Deck Assembly Parts Diagram

ProCut 20 Front Mount Mower, 20hp Onan

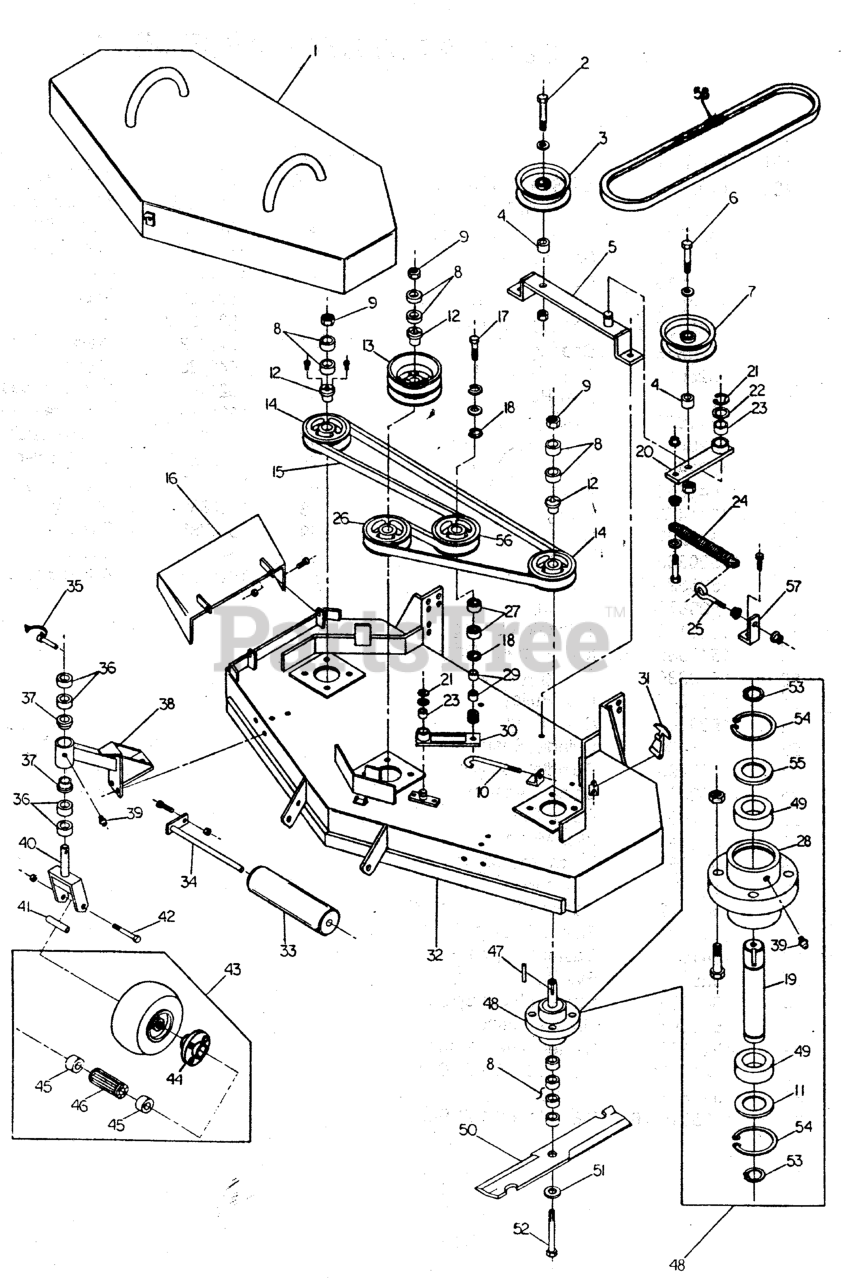

61" Cutter Deck Assembly Parts Diagram

  • Title

1

Ferris 5041613

61" DECK GUARD

$

$

Currently unavailable

2

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

3

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5041754

SPACER, .50 x 1.00 X .69

$

$

Not available

5

Ferris 5042141

Idler Mount

$133.99

$

Usually ships in 2-12 days

0

6

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

8

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

9

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, only 1 left!

0

10

Ferris 5041671

J-BOLT

$9.49

$

Usually ships in 2-12 days

0

11

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

12

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 1 left!

0

13

Ferris 5021091

Double Pulley

Note: (Cast Iron)

$168.99

$

Usually ships in 2-12 days

0

13

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

Note: (Single, Cast Iron)

$111.99

$

Usually ships in 2-12 days

0

13

Ferris 5021512

PULLEY, Split Steel

$

$

Currently unavailable

14

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

14

Ferris 5021492

PULLEY, Split Steel

$75.99

$

Usually ships in 2-12 days

0

15

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

15

Ferris 5021511

Deck Drive Belt
(Superseded to 5021854)

$110.99

$

Usually ships in 2-12 days

0

16

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

17

Ferris 25017-18

BOLT, 1/2-20 x 2-1/4

$

$

Currently unavailable

18

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

20

Ferris 5042145B

IDLER ARM, Complete

$70.99

$

In Stock, only 2 left!

0

21

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

24

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

25

EYEBOLT

$

$

Not available

26

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

26

Ferris 5021492

PULLEY, Split Steel

$75.99

$

Usually ships in 2-12 days

0

27

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

28

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

29

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

30

Ferris 5041622

IDLER ARM

$

$

Not available

31

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

In Stock, only 1 left!

0

32

Ferris 30381

61" MOWER HOUSING (4 Bolt)

$

$

Currently unavailable

33

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 11

0

34

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 1 left!

0

35

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

36

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

37

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

38

Ferris 41661

Caster Support

$

$

Currently unavailable

39

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

41

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

42

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

43

Ferris 5021147

Caster Assembly
(Superseded to 5021147FS)

$210.99

$

Usually ships in 2-12 days

0

43

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

43

Ferris 21467

TIRE ASSM, Solid Rubber, 9 X 3.5
(Superseded to 21467GS)

$19.99

$

Usually ships in 2-12 days

0

44

Ferris 21184-4

Hub

$

$

Currently unavailable

45

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

46

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

47

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

48

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

49

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

50

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 16

0

51

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, only 3 left!

0

52

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

53

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

54

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

55

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

56

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

56

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

57

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

58

Ferris 5021106

BELT, B-Section

$96.99

$

Usually ships in 2-12 days

0
