ProCut 20 (H2020O) - Ferris ProCut 20 Front Mount Mower, 20hp Onan (SN: H1360 & Above) Control Panel Assembly Parts Diagram

ProCut 20 Front Mount Mower, 20hp Onan

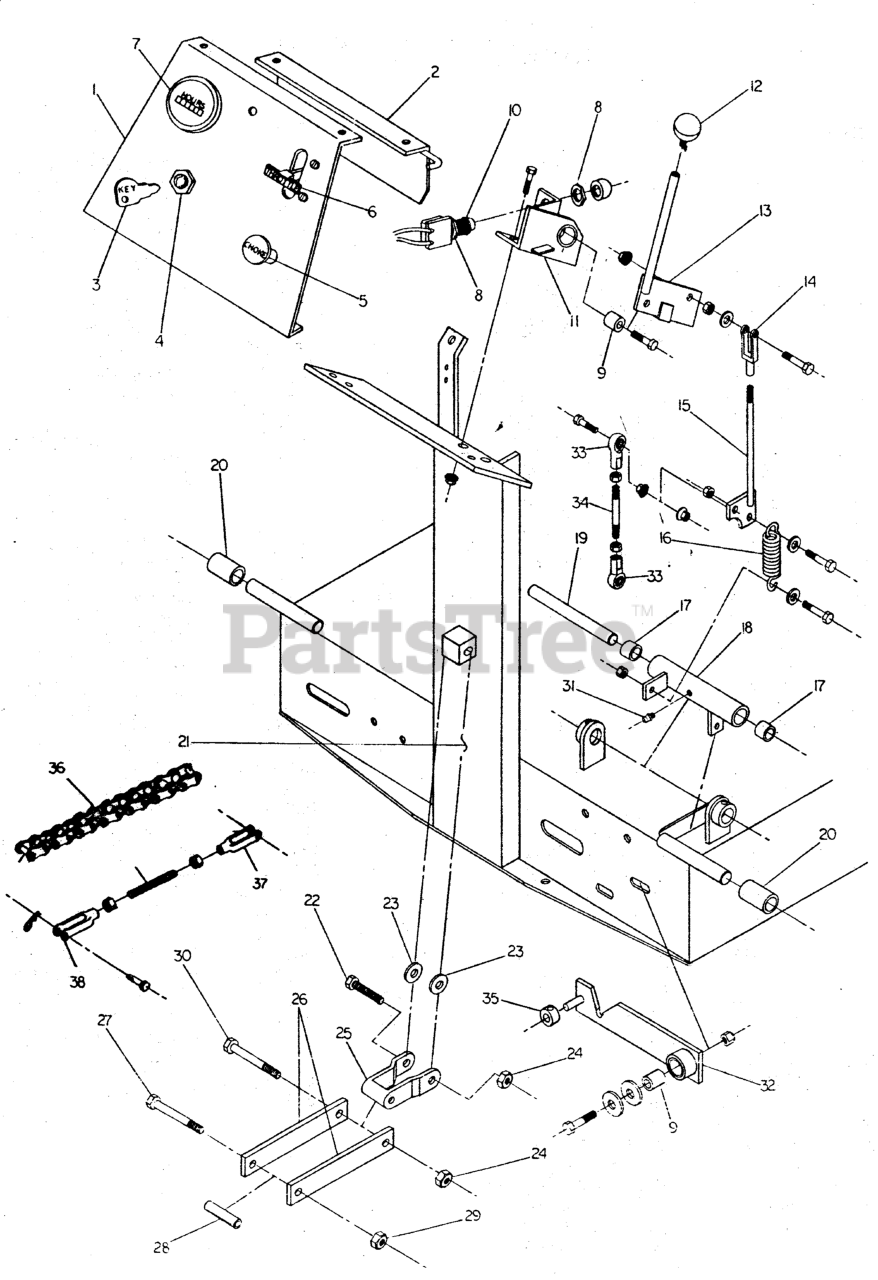

Control Panel Assembly Parts Diagram

  • Title

1

Ferris 41766

Control Panel

Note: (With Hour Meter, Shown)

$

$

Currently unavailable

1

Ferris 42469

Control Panel
(Superseded to 7042469YP)

Note: (Without Hour Meter, Not Shown)

$276.99

$

Usually ships in 2-12 days

0

2

Ferris 5042183

Back Plate

$

$

Currently unavailable

3

Ferris 5020878

Ignition Key
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 12

0

4

Ferris 5020836

SWITCH, Ignition

Note: (Kohler)

$54.99

$

Usually ships in 2-12 days

0

4

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Briggs)

$33.99

$

Usually ships in 2-12 days

0

5

Ferris 5021675

CABLE, CHOKE CONTROL, 45

$63.99

$

In Stock, only 1 left!

0

6

Ferris 5021151

CABLE, Throttle, 31"

Note: (Kohler)

$55.99

$

Usually ships in 2-12 days

0

6

Ferris 5020811

CABLE, Throttle, 38"
(Superseded to 5020811SM)

Note: (Briggs)

$49.99

$

Usually ships in 2-12 days

0

7

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

8

Ferris 5020834

Brass Nut

$

$

Currently unavailable

9

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 5042186

Parking Brake Switch Assembly

$66.99

$

Usually ships in 2-12 days

0

11

Ferris 5042323

Parking Brake Mount

$

$

Currently unavailable

12

Ferris 5010551

Black Knob

$

$

Currently unavailable

13

Ferris 5042325

Parking Brake Handle

$

$

Currently unavailable

14

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

15

Ferris 5042327

Brake Rod

$

$

Currently unavailable

16

Ferris 5021107

SPRING, Extension

$22.99

$

Usually ships in 2-12 days

0

17

Ferris 5020875

BUSHING
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

18

Ferris 42162

Parking Brake Bell Crank

Note: (S/N: 3389 & below)

$

$

Currently unavailable

18

Ferris 43342

Parking Brake Bell Crank

Note: (S/N: 3390 & above)

$

$

Currently unavailable

19

Ferris 5050501X36

3/4" Shaft

$

$

Currently unavailable

20

Ferris 50834-1

5/8 Hose

$

$

Currently unavailable

21

Ferris 5030403

Engine Deck

$

$

Currently unavailable

22

Ferris 5025011X16

BOLT, 5/16-18 x 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5041767

Coupler Link

$

$

Currently unavailable

26

Ferris 5042049B

Electric Lift Linkage

$

$

Currently unavailable

27

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

28

Ferris 5041730

Actuator Spacer

$

$

Currently unavailable

29

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: (Obtain Locally)

$3.49

$

In Stock, Qty 10

0

30

Ferris 5025011X18

BOLT, 5/16-18 x 2-1/4
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

$56.99

$

Usually ships in 2-12 days

0

33

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

34

Ferris 5042222

Linkage Rod

$28.99

$

Usually ships in 2-12 days

0

35

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

36

Ferris 5021195

Plated #60 Connector

Note: (Manual Lift)

$

$

Currently unavailable

37

Ferris 25118-24

STUD, 5/16-24 x 3"

Note: (Manual Lift)

$

$

Currently unavailable

38

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

Note: (Manual Lift)

$9.49

$

Usually ships in 2-12 days

0
