ProCut 30 (5901034) - Ferris ProCut 30 Front Mount Mower, 22hp Kohler (SN: 0855 - 1022) Engine & PTO Group - Kohler Parts Diagram

ProCut 30 Front Mount Mower, 22hp Kohler

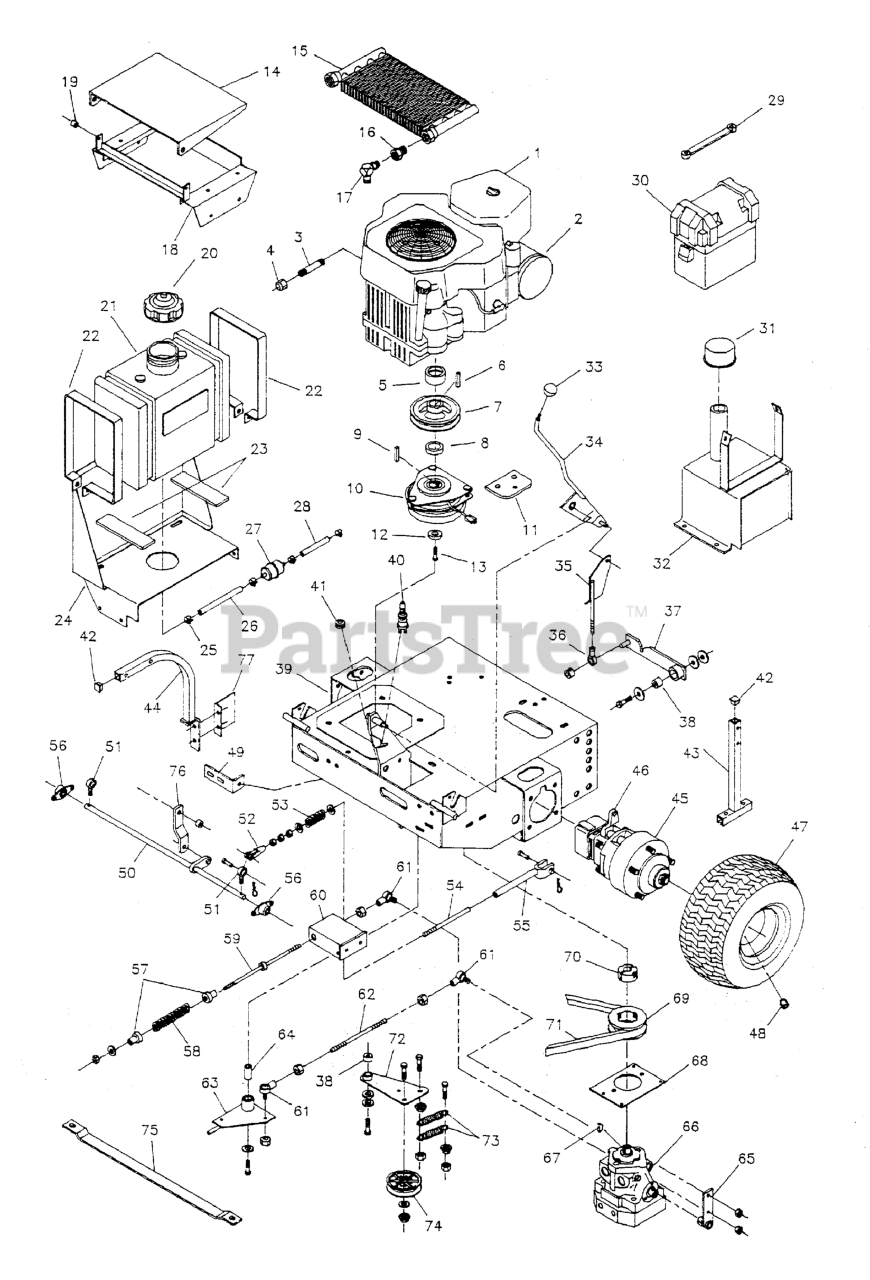

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

ENGINE, 22HP Kohler (Model CV22S)

$

$

Not available

-

ENGINE, 25HP Kohler (Model CV25S)

$

$

Not available

2

Ferris 5022161

MUFFLER, Kohler
(Superseded to 5022161SM)

Note: (S/N: 973 & above)

$509.99

$

Usually ships in 2-12 days

0

3

Ferris 5021707

NIPPLE, 3/8 NPT X 4-1/2

$

$

Currently unavailable

4

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

5

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

In Stock, only 1 left!

0

6

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5044061

PULLEY, Pump Drive
(Superseded to 5044061FS)

$92.99

$

Usually ships in 2-12 days

0

8

Ferris 5042945

SPACER, 1.13 x 2.00 x .19

$

$

Currently unavailable

9

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, Qty 9

0

10

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

$687.99

$

Usually ships in 2-12 days

0

11

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

12

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5042951B

OIL COOLER HOOD

$

$

Currently unavailable

15

Ferris 5021368

OIL COOLER

$

$

Currently unavailable

16

Ferris 5021388

FITTING, Reducer
(Superseded to 5021388FS)

$11.99

$

Usually ships in 2-12 days

0

17

Ferris 5021370

FITTING, NPT - Hose, 90 Deg.
(Superseded to 5021370FS)

$23.99

$

Usually ships in 2-12 days

0

18

Ferris 5044075B

OIL COOLER MOUNT

$

$

Currently unavailable

19

Ferris 5044735

SPACER, .27 x .75 x .94

$

$

Currently unavailable

20

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 8

0

21

Ferris 5410709

TANK, FUEL, PLASTIC, 6 GALLON W/ FUEL LINE

$272.99

$

Usually ships in 2-12 days

0

22

Ferris 5044693B

FUEL TANK STRAP
(Superseded to 5044693BFS)

$34.99

$

Usually ships in 2-12 days

0

23

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

24

Ferris 5044692B

FUEL TANK MOUNT
(Superseded to 5044692BFS)

$207.99

$

Usually ships in 2-12 days

0

25

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5050831X35

1/4" Fuel Line, 35" Long
(Superseded to 5050831X35SM)

$18.99

$

Usually ships in 2-12 days

0

27

FUEL FILTER

Note: (Kohler Supplied)

$

$

Not available

28

FUEL LINE

Note: (Kohler Supplied)

$

$

Not available

29

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

30

Ferris 5021666

BOX, Battery
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

31

Ferris 5021871

BREATHER
(Superseded to 5021871SM)

$37.99

$

Usually ships in 2-12 days

0

32

Ferris 5030774B

HYDRO TANK WELDMENT

$284.99

$

Usually ships in 2-12 days

0

33

Ferris 5021733

KNOB
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

34

Ferris 5030919B

PARKING BRAKE LEVER
(Superseded to 5030919BFS)

$136.99

$

Usually ships in 2-12 days

0

35

Ferris 5043972B

BRAKE LOCK LINK
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

36

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

Usually ships in 2-12 days

0

37

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

$56.99

$

Usually ships in 2-12 days

0

-

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 4 left!

0

38

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

39

Ferris 5030786

ENGINE DECK

$

$

Currently unavailable

40

Ferris 5021522

SWITCH, Plunger, NO
(Superseded to 5021522YP)

$32.99

$

In Stock, only 2 left!

0

41

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

42

Ferris 5021686

CAP

$

$

Currently unavailable

43

Ferris 5044065B

OIL COOLER MOUNT - RH
(Superseded to 5044065BFS)

$73.99

$

Usually ships in 2-12 days

0

44

Ferris 5044148B

OIL COOLER MOUNT - LH
(Superseded to 5044148BFS)

$73.99

$

Usually ships in 2-12 days

0

45

Ferris 5021621

HYDRAULIC WHEEL MOTOR

$

$

Currently unavailable

46

Ferris 5021685

BRAKE LEVER

$

$

Currently unavailable

47

Ferris 5021353

WHEEL & TIRE ASSEMBLY, 23 x 10.5-12, White, Complete

$398.99

$

Usually ships in 2-12 days

0

48

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

49

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

50

Ferris 5030911B

SHAFT, Brake

$

$

Currently unavailable

51

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

52

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

53

Ferris 5021773

SPRING, Compression
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

54

Ferris 5044422

BRAKE SPRING ROD

$

$

Currently unavailable

55

Ferris 5044425B

BRAKE TUBE
(Superseded to 5044425BFS)

$43.99

$

Usually ships in 2-12 days

0

56

Ferris 5020014

5/8" Triangle Bearing

$

$

Not available

57

Ferris 5042911

GUIDE, Spring Return
(Superseded to 5042911FS)

$69.99

$

Usually ships in 2-12 days

0

58

Ferris 5021354

SPRING, Compression
(Superseded to 5021354FS)

$22.99

$

Usually ships in 2-12 days

0

59

Ferris 5042934

SPRING RETURN ROD

$

$

Currently unavailable

60

Ferris 5044055B

BOX, Spring Mount

$

$

Currently unavailable

61

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

62

Ferris 5044083

CONTROL ROD

$

$

Currently unavailable

63

Ferris 5044068B

SPEED CONTROL PIVOT, Complete

$

$

Currently unavailable

-

Ferris 5020043

BUSHING, Brass

$

$

Currently unavailable

64

Ferris 5042926

SPACER, .33 X .75 X 1.56
(Superseded to 5042926FS)

$11.99

$

Usually ships in 2-12 days

0

65

Ferris 5044049B

LEVER, Pump Control

$

$

Currently unavailable

66

Ferris 5021333

HYDRAULIC PUMP
(Superseded to 5021333FS)

$3616.99

$

Usually ships in 2-12 days

0

67

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

68

Ferris 5044024B

PLATE, Pump Mount

$

$

Currently unavailable

69

Ferris 5021681

PULLEY, Tapered Hub
(Superseded to 5021681FS)

$154.99

$

Usually ships in 2-12 days

0

70

Ferris 5021367

BUSHING, Tapered Hub
(Superseded to 5021367FS)

$50.99

$

Usually ships in 2-12 days

0

71

Ferris 5021684

BELT
(Superseded to 5021684FS)

$37.99

$

In Stock, only 2 left!

0

72

Ferris 5044032B

ARM, Idler
(Superseded to 5044032BFS)

$85.99

$

Usually ships in 2-12 days

0

-

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 4 left!

0

73

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, only 2 left!

0

74

Ferris 5044060

PULLEY, Idler
(Superseded to 5044060FS)

$46.99

$

Usually ships in 2-12 days

0

75

Ferris 5044059B

BAR, Tie
(Superseded to 5044059BFS)

$16.99

$

Usually ships in 2-12 days

0

76

Ferris 5044043B

BRAKE LINK
(Superseded to 5044043BFS)

$48.99

$

Usually ships in 2-12 days

0

77

Ferris 5044409B

DEFLECTOR, Exhaust

Note: (S/N: 844 - 972)

$21.99

$

Usually ships in 2-12 days

0
