ProCut 30 (5901036) - Ferris ProCut 30 Front Mount Mower, 27hp Kohler Motion Control Group - Engine Deck Parts Diagram

ProCut 30 Front Mount Mower, 27hp Kohler

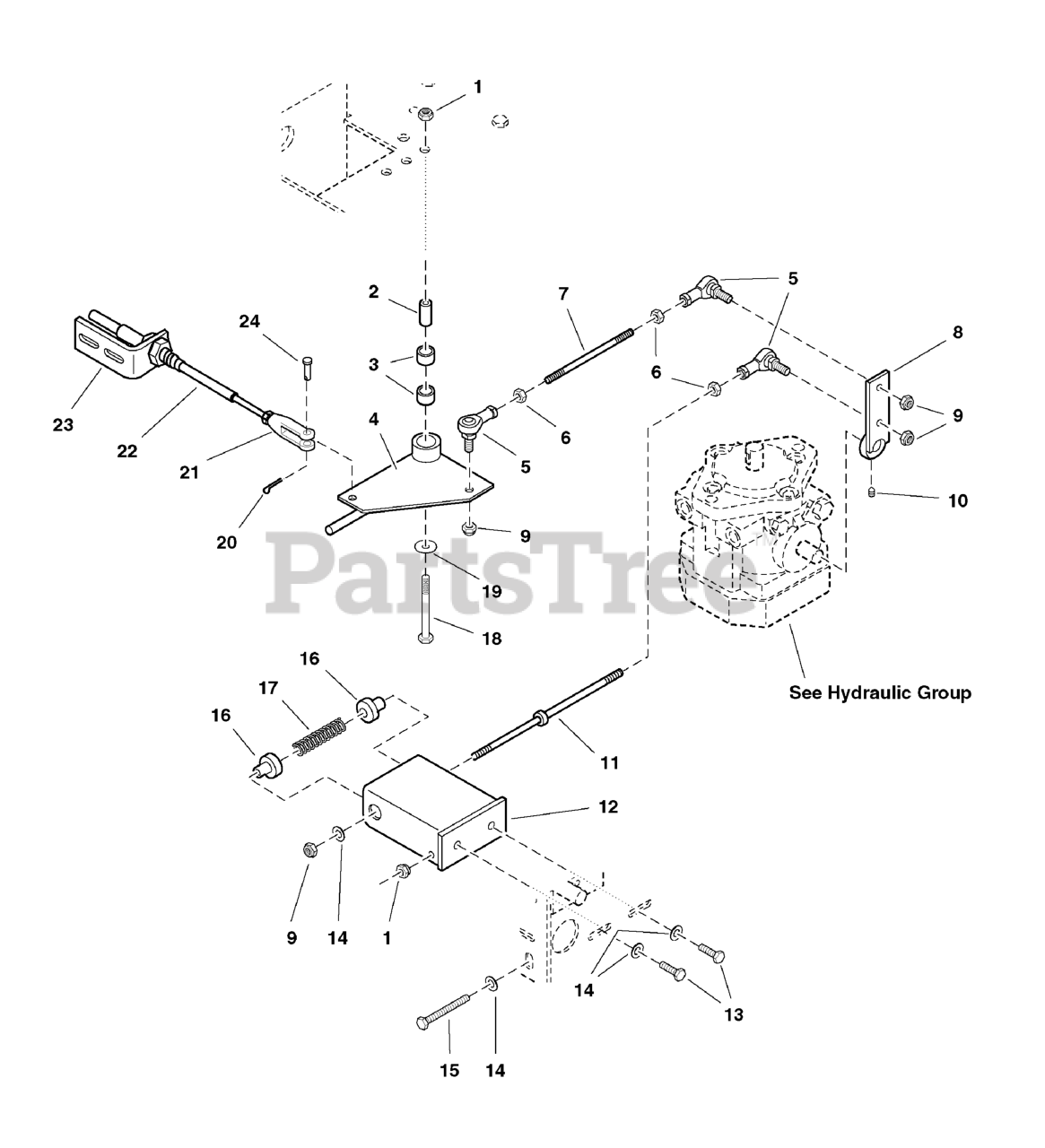

Motion Control Group - Engine Deck Parts Diagram

  • Title

1

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5042926

SPACER, .33 X .75 X 1.56
(Superseded to 5042926FS)

$11.99

$

Usually ships in 2-12 days

0

3

Ferris 5020043

BUSHING, Brass

$

$

Currently unavailable

4

Ferris 5044068B

SPEED CONTROL PIVOT, Complete

Note: (Includes Ref No. 3)

$

$

Currently unavailable

5

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

6

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5044083

CONTROL ROD

$

$

Currently unavailable

8

Ferris 5044049B

LEVER, Pump Control

$

$

Currently unavailable

9

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

10

Ferris 5025272X4

SET SCREW, 5/16-18 x 1/2, Cone

$

$

Currently unavailable

11

Ferris 5042934

SPRING RETURN ROD

$

$

Currently unavailable

12

Ferris 5044055B

BOX, Spring Mount

$

$

Currently unavailable

13

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025055X28

BOLT, 5/16-18 x 3-1/2 TFL

$

$

Not available

16

Ferris 5042911

GUIDE, Spring Return
(Superseded to 5042911FS)

$69.99

$

Usually ships in 2-12 days

0

17

Ferris 5021354

SPRING, Compression
(Superseded to 5021354FS)

$22.99

$

Usually ships in 2-12 days

0

18

Ferris 5025011X18

BOLT, 5/16-18 x 2-1/4
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025204X4

COTTER PIN, 1/16" x 1/2"

$

$

Currently unavailable

21

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

22

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

23

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

24

Ferris 5025212X8

CLEVIS PIN, 1/4 x 1
(Superseded to 5025212X8FS)

$2.49

$

Usually ships in 2-12 days

0
