ProCut 30 (5901036) - Ferris ProCut 30 Front Mount Mower, 27hp Kohler Parking Brake Group Parts Diagram

ProCut 30 Front Mount Mower, 27hp Kohler

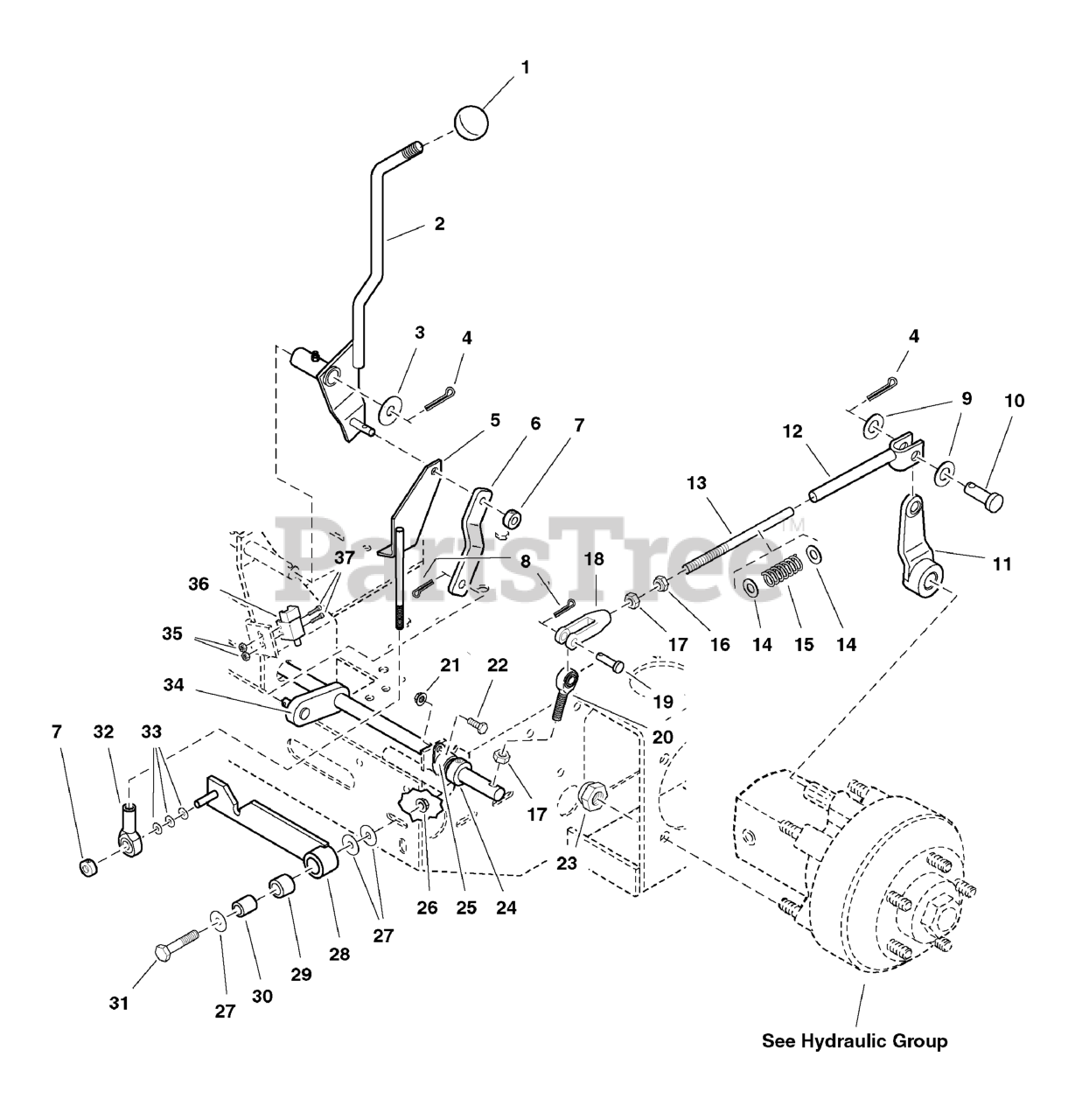

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5021733

KNOB
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

2

Ferris 5030919B

PARKING BRAKE LEVER
(Superseded to 5030919BFS)

$136.99

$

Usually ships in 2-12 days

0

3

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, only 3 left!

0

4

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5043972B

BRAKE LOCK LINK
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

6

Ferris 5044043B

BRAKE LINK
(Superseded to 5044043BFS)

$48.99

$

Usually ships in 2-12 days

0

7

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

8

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025232X10

CLEVIS PIN, 1/2" x 1-1/4"
(Superseded to 5025232X10FS)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 5021685

BRAKE LEVER

$

$

Currently unavailable

12

Ferris 5044425B

BRAKE TUBE
(Superseded to 5044425BFS)

$43.99

$

Usually ships in 2-12 days

0

13

Ferris 5044422

BRAKE SPRING ROD

$

$

Currently unavailable

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5021773

SPRING, Compression
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

16

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5025214X9

CLEVIS PIN, 3/8 x 1-1/8
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

21

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

23

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

24

Ferris 5010477

COLLAR, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

25

Ferris 5020014

5/8" Triangle Bearing

$

$

Not available

26

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

Note: (Includes Ref No. 29)

$56.99

$

Usually ships in 2-12 days

0

29

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

30

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

31

Ferris 5025011X16

BOLT, 5/16-18 x 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

33

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

34

Ferris 5030911B

BRAKE SHAFT

$

$

Currently unavailable

35

Ferris 5025029

NUT, #10-24 Hex
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

36

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 6

0

37

Ferris 5025179X6

SCREW, #10-24 x 3/4
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0
