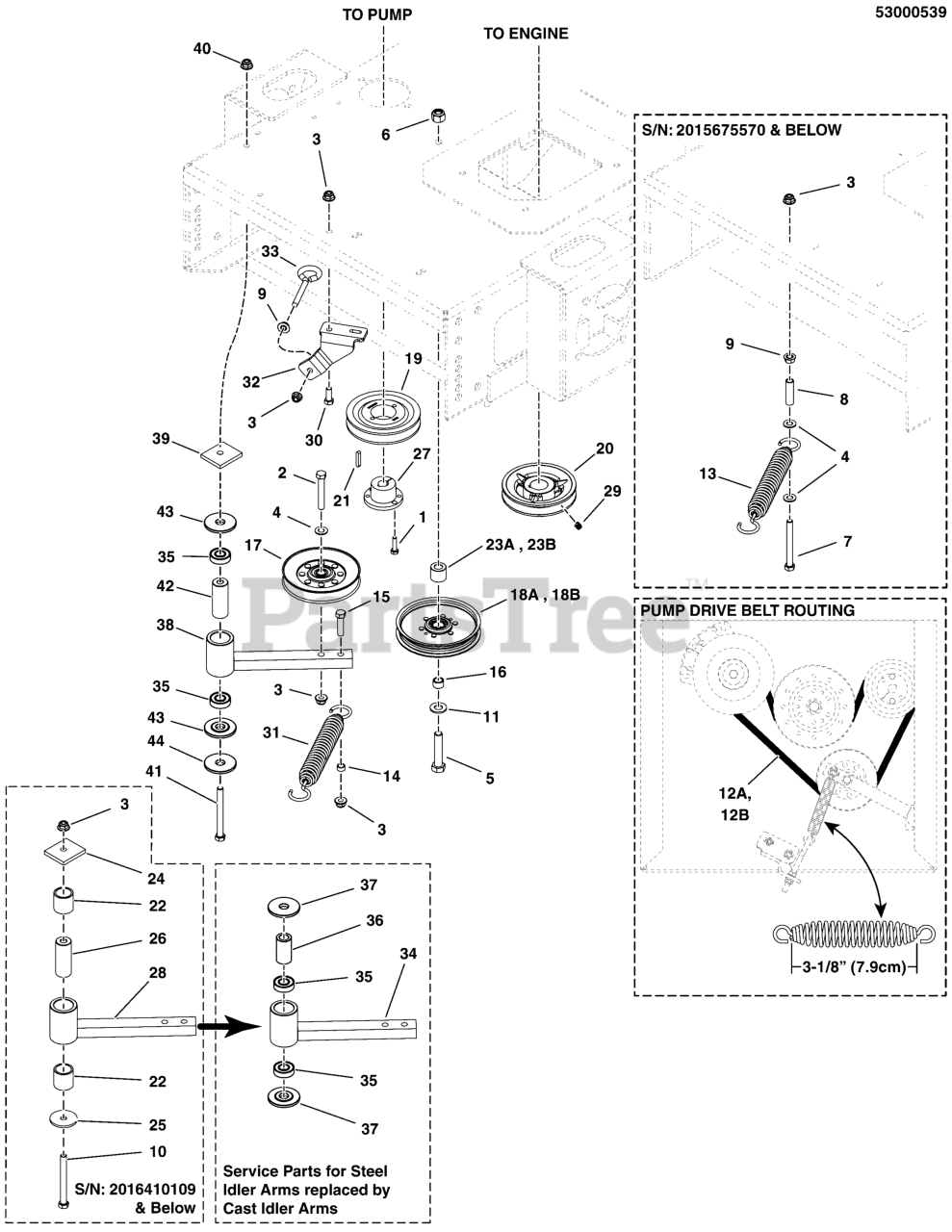

ProCut S (5900701) - Ferris Procut S Front Mount Mower, 27hp Kohler Pump Drive Group Parts Diagram

Procut S Front Mount Mower, 27hp Kohler

Pump Drive Group Parts Diagram

  • Title

1

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

6

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

8

Ferris 5050860X1P75

HOSE, PUSH LOCK 3/8 X 1 3/4

$2.49

$

Usually ships in 2-12 days

0

9

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

10

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

12a

Ferris 5103495

BELT, B-SEC, 58.2" EL, ARAMID
(Superseded to 5103495FS)

Note: (S/N: 2015675571 & Above)

$74.99

$

Usually ships in 2-12 days

0

12b

Ferris 5100808

BELT, BP-SEC, 56.00EL, ARAMID, WRPD

Note: (S/N: 2015675570 & Below)

$78.99

$

In Stock, only 2 left!

0

13

Ferris 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

14

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5020870

INSERT, BEARING
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

17

Ferris 5100837

PULLEY, IDLER V NOTCH, 5 AB1303
(Superseded to 5100837FS)

$39.99

$

In Stock, only 2 left!

0

18a

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

18b

Ferris 5023264

PULLEY, FLAT IDLER, 5.0X.75

Note: (S/N: 2015675570 & Below)

$49.99

$

Usually ships in 2-12 days

0

19

Ferris 5100815

PULLEY , 4.75 OD, SINGLE GROOVE BH-48
(Superseded to 5100815FS)

$69.99

$

Usually ships in 2-12 days

0

20

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

21

Ferris 5023254

KEY, 5MM SQ. W/RADIUS
(Superseded to 5023254SM)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

23a

Ferris 5047142

SPACER, .52 X 1.25 X .70, CZ
(Superseded to 5047142SM)

Note: (S/N: 2015675571 & Above)

$8.99

$

In Stock, only 1 left!

0

23b

Ferris 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

Note: (S/N: 2015675570 & Below)

$8.99

$

Usually ships in 2-12 days

0

24

Ferris 5045090

SPACER, IDLER PIVOT
(Superseded to 5045090SM)

$9.99

$

Usually ships in 2-12 days

0

25

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 1 left!

0

26

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

27

Ferris 5022383

BUSHING, 17MM, HQ
(Superseded to 5022383YP)

$27.99

$

Usually ships in 2-12 days

0

28

Ferris 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$75.99

$

Usually ships in 2-12 days

0

29

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

31

Ferris 5102668

SPRING-EXT, .930 ODX4.020LGX.120WR
(Superseded to 5102668FS)

$40.99

$

Usually ships in 2-12 days

0

32

Ferris 5409400B

BRACKET, HYDRO SPRING ANCHOR
(Superseded to 5409400BFS)

$22.99

$

Usually ships in 2-12 days

0

33

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

34

Ferris 5406895

ASSM, IDLER ARM, PUMP DRIVE, 3/8, CAST (SV)

Note: (Includes items # 35 - 37)(5101178A)

$171.99

$

Usually ships in 2-12 days

0

35

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, only 4 left!

0

36

Ferris 5102580

SPACER, .39 X .88 X 1.53, CZ
(Superseded to 5102580YP)

$11.99

$

Usually ships in 2-12 days

0

37

Ferris 5102579

SPACER, IDLER ARM, T-STYLE, CZ
(Superseded to 5102579YP)

$20.99

$

Usually ships in 2-12 days

0

38

Ferris 5411066

ASSM, IDLER ARM, PUMP DRIVE, 1/2, CAST (SV)

Note: (S/N: 2016410110 & Above)(5101178A)

$130.99

$

Usually ships in 2-12 days

0

39

Ferris 5103284

SPACER, .52ID X 2 X 1.75RCT X .25, CZ
(Superseded to 5103284FS)

Note: (S/N: 2016410110 & Above)

$5.49

$

Usually ships in 2-12 days

0

40

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2016410110 & Above)

$3.49

$

In Stock, Qty 9

0

41

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2016410110 & Above)

$6.49

$

Usually ships in 2-12 days

0

42

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, only 2 left!

0

43

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, Qty 5

0

44

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

Note: (S/N: 2016410110 & Above)

$3.99

$

In Stock, only 1 left!

0
