ProCut Z (5901086) - Ferris ProCut Z Series Zero-Turn Mower, 25hp Kohler Pump Drive Group Parts Diagram

ProCut Z Series Zero-Turn Mower, 25hp Kohler

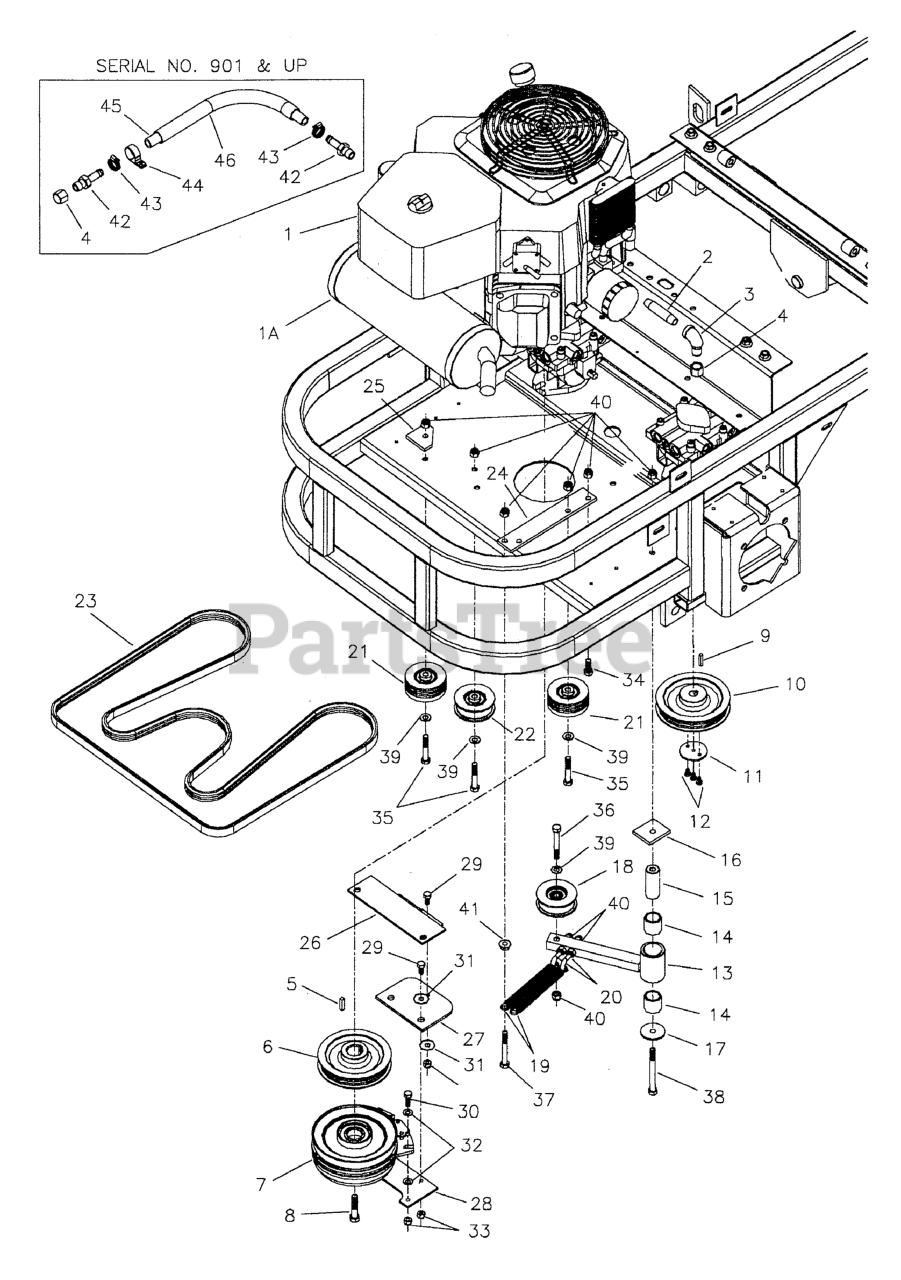

Pump Drive Group Parts Diagram

  • Title

1

ENGINE, Kohler

$

$

Not available

1a

Ferris 5022161

MUFFLER, Kohler
(Superseded to 5022161SM)

$509.99

$

Usually ships in 2-12 days

0

2

Ferris 5021290

NIPPLE, 3/8" NPT x 3"

$

$

Currently unavailable

3

Ferris 5022096

STREET L, 3/8" NPT

$

$

Currently unavailable

4

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

5

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5022154

PULLEY, Crankshaft

$188.99

$

Usually ships in 2-12 days

0

7

Ferris 5022040

CLUTCH, Electric

$

$

Currently unavailable

8

Ferris 5044853

CRANKSHAFT BOLT, 7/16 x 2
(Superseded to 5102862)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5023254

KEY, 5MM SQ. x 25MM w/ Round Ends
(Superseded to 5023254SM)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5022155

PULLEY, Pump Drive
(Superseded to 5022155SM)

$130.99

$

Usually ships in 2-12 days

0

11

Ferris 5045143

WASHER, Pulley Retaining

$

$

Currently unavailable

12

Ferris 5025248

BOLT, M6 x 10MM

$

$

Currently unavailable

13

Ferris 5045132B

IDLER ARM ASSEMBLY, Complete
(Superseded to 5045132BFS)

Note: (Includes bushings)

$103.99

$

Usually ships in 2-12 days

0

14

Ferris 5022157

BUSHING, Brass
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

15

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

16

Ferris 5045090

SPACER, Idler Pivot
(Superseded to 5045090SM)

$9.99

$

Usually ships in 2-12 days

0

17

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5060040

HYDRO IDLER PULLEY ASSEMBLY
(Superseded to 5060040SM)

$180.99

$

Usually ships in 2-12 days

0

-

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

-

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

-

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

-

Ferris 5021879

INSERT, Bearing, Shoulder
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

-

Ferris 5045140

PULLEY, Backside Idler
(Superseded to 5045140FS)

$99.99

$

Usually ships in 2-12 days

0

19

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

20

Ferris 5025290

SCREW HOOK
(Superseded to 5025290SM)

$5.99

$

Usually ships in 2-12 days

0

21

Ferris 5060020

IDLER PULLEY ASSEMBLY

$119.99

$

Usually ships in 2-12 days

0

-

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

-

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

-

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

-

Ferris 5021879

INSERT, Bearing, Shoulder
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

-

Ferris 5045073

PULLEY, Idler

$

$

Not available

22

Ferris 5060021

BACKSIDE IDLER PULLEY ASSEMBLY
(Superseded to 5060021SM)

$121.99

$

Usually ships in 2-12 days

0

-

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

-

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

-

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

-

Ferris 5021879

INSERT, Bearing, Shoulder
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

-

Ferris 5045140

PULLEY, Backside Idler
(Superseded to 5045140FS)

$99.99

$

Usually ships in 2-12 days

0

23

Ferris 5022062

BELT, Pump Drive
(Superseded to 5022062SM)

$152.99

$

In Stock, only 1 left!

0

24

Ferris 5045136B

ANCHOR, Spring Idler

$

$

Currently unavailable

25

Ferris 5045144

SUPPORT, Pulley

$

$

Not available

26

Ferris 5045087B

MOUNT, Clutch Anchor

$10.99

$

Usually ships in 2-12 days

0

27

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

28

Ferris 5045086B

ANCHOR, Clutch

$9.49

$

Usually ships in 2-12 days

0

29

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

30

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

35

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

36

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

37

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

38

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

39

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 6

0

41

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

42

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

43

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

44

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

45

Ferris 5050857X16

HOSE, 16" Long
(Superseded to 5050857X16SM)

$12.99

$

Usually ships in 2-12 days

0

46

Ferris 5050862X14

WIRE LOOM, 14"

$

$

Not available
