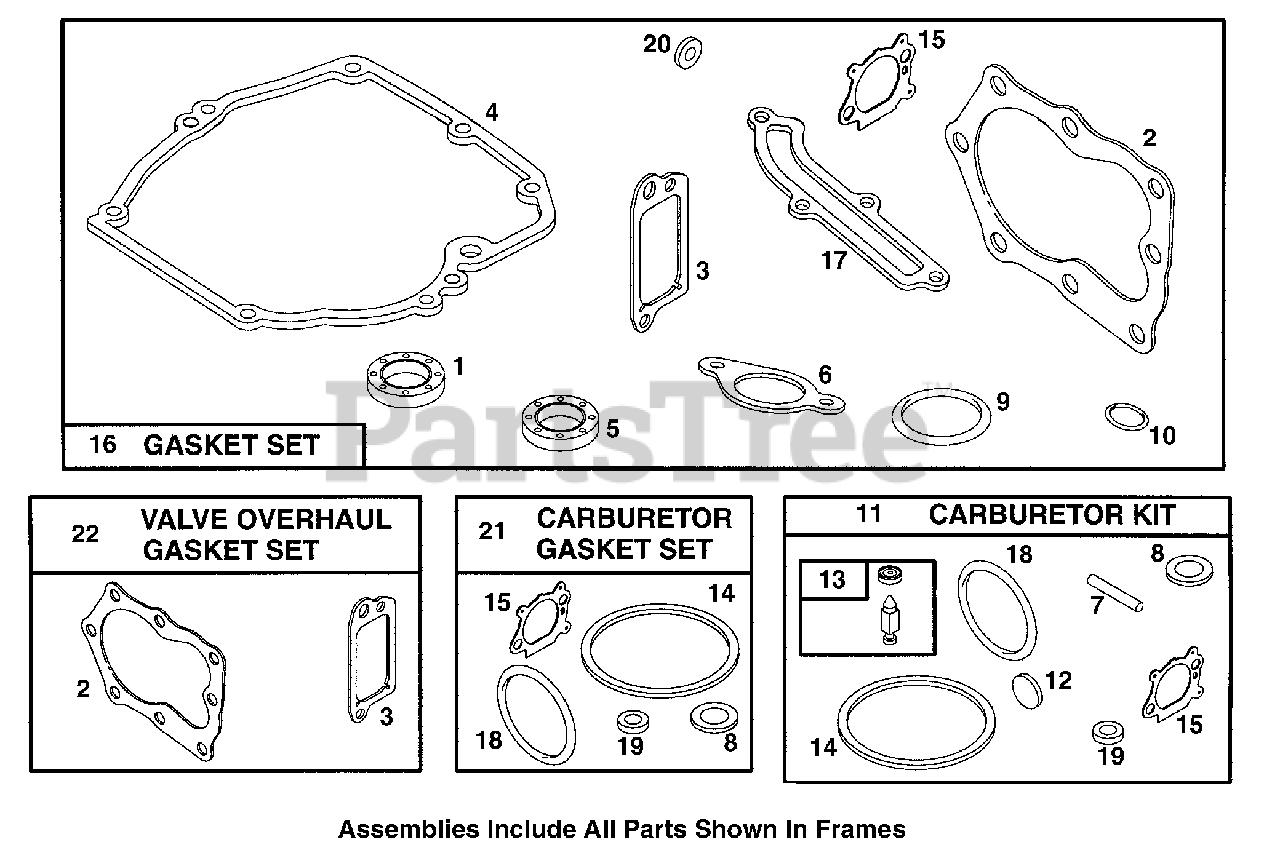

PS 520 (11A-108C101) - Cub Cadet Walk-Behind Mower Engine (1999) Gaskets Parts Diagram

Walk-Behind Mower Engine

Gaskets Parts Diagram

  • Title

1

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

2

Cub Cadet BS-272916

Cylinder Head Gasket
(Superseded to BS-692249)

$8.49

$

In Stock, only 4 left!

0

3

Cub Cadet BS-272418

Breather Gasket

$

$

Currently unavailable

4

Cub Cadet BS-272198

Crankcase Gasket
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-399781

Oil Seal
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 16

0

6

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet BS-231371

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

8

Bowl Washer

Note: (Sold Only in Kit)

$

$

Not available

9

Cub Cadet BS-280393

O-Ring Seal
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet BS-280966

O-Ring Seal
(Superseded to BS-692296)

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet BS-498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

12

Welch Plug

Note: (Sold Only in Kit)

$

$

Not available

13

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

14

Bowl Gasket

Note: (Sold Only in Kit)

$

$

Not available

15

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-497316

Gasket Set
(Superseded to BS-590508)

$37.99

$

In Stock, Qty 12

0

17

Cub Cadet BS-272238

Breather Passage Gasket
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-270344

Intake Manifold Seal
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet BS-280566

Dust Seal

$

$

Not available

20

Cub Cadet BS-493823

Spacer

Note: (Includes Two)

$6.49

$

In Stock, only 2 left!

0

21

Cub Cadet BS-498261

Carburetor Gasket Set
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-498528

Valve Overhaul Gasket Set

$26.99

$

Usually ships in 2-12 days

0
