PS i2000 - PowerStroke Digital Inverter Generator General Assembly Parts Diagram

Digital Inverter Generator

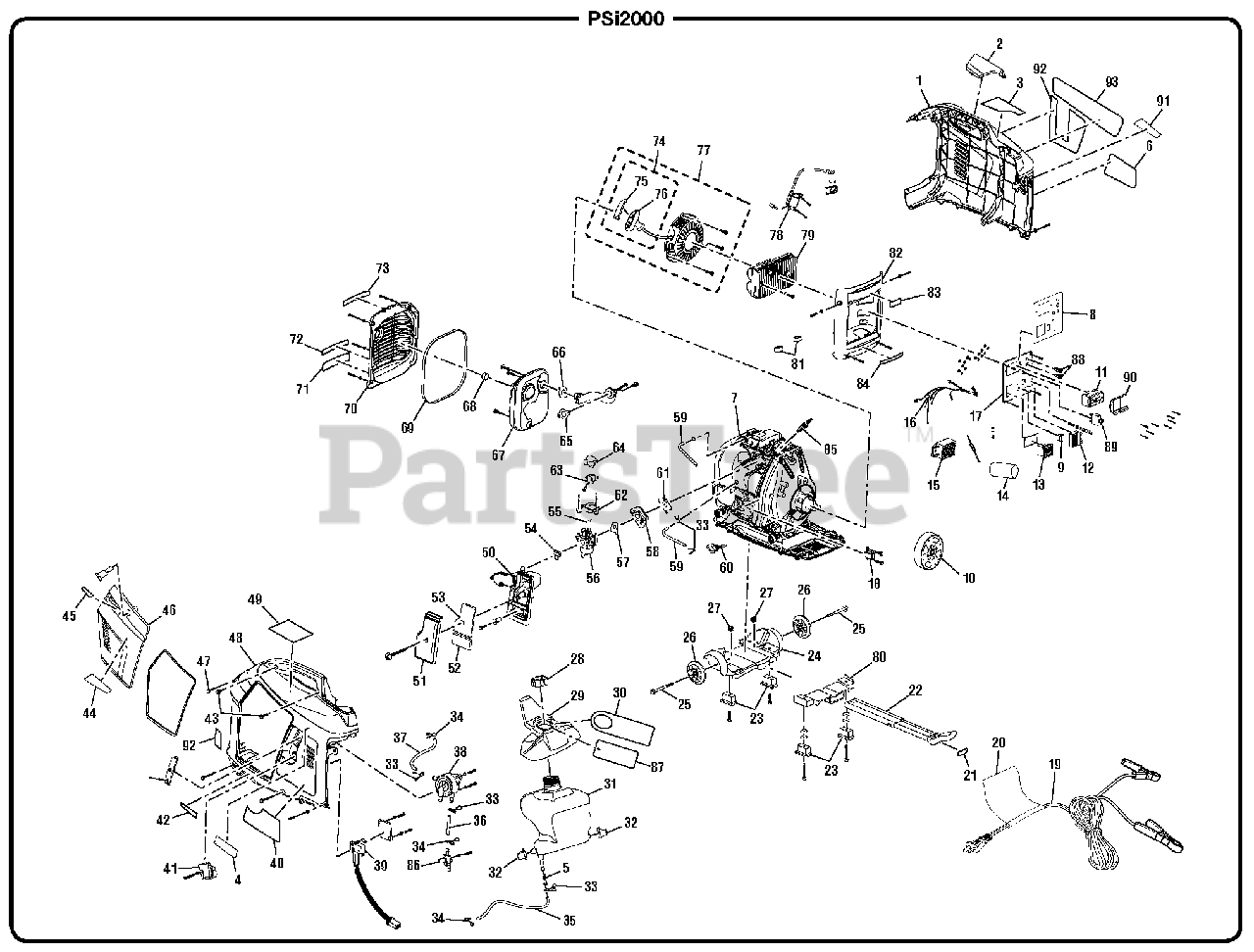

General Assembly Parts Diagram

  • Title

1

Homelite 524003005

Right Housing

$

$

Currently unavailable

2

Homelite 638792005

Spark Plug Access Cover

$

$

Not available

3

Homelite 940707095

Danger / E85 Label

$

$

Not available

4

Homelite 940974091

Fire Danger Label

$

$

Not available

5

Homelite 308733004

Fuel Filter

$

$

Not available

6

Homelite 940789010

Features Label

$

$

Not available

7

Homelite 309591063

Engine

$

$

Not available

8

Homelite 940040028

Control Panel Label

$

$

Not available

9

Homelite 760504009

Auto Idle Switch

$1.99

$

In Stock, Qty 5

0

10

Homelite 310772013

Stator Assembly

$

$

Not available

11

Homelite 290400008

AC Receptacle (120 Volt)

$

$

Not available

12

Homelite 850201001

Ignition Module

$

$

Not available

13

Homelite 290400012

DC Receptacle

$

$

Not available

14

Homelite 570779001

Heat Shrink Tube

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 290443003

Bridge Rectifier

$

$

Not available

16

Homelite 290514005

Wiring Harness (Internal)

$

$

Not available

17

Homelite 638496030

Control Panel

$

$

Not available

18

Homelite 760504012

Pick-Up Coil

$9.99

$

Usually ships in 3-7 days

0

19

Homelite 290425003

Battery Charging Cable

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 940654075

Cord Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 940758019

Handle Release Label

$

$

Not available

22

Homelite 308790003

Handle Assembly

$41.99

$

Usually ships in 3-7 days

0

23

Homelite 570355005

Rubber Foot

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 310224027

Rear Handle and Wheel Bracket

$

$

Not available

25

Homelite 620599021

Wheel Mounting Bolt

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 310223005

Wheel

$

$

Not available

27

Homelite 661514001

Hex Nut (Wheel Mounting)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 310720031

Fuel Cap Assembly
(Superseded to 12-01-0037)

$21.99

$

Usually ships in 3-7 days

0

29

Homelite 518549002

Fuel Overspill Guard

$6.99

$

Usually ships in 3-7 days

0

30

Homelite 940735004

Hangtag (Warning)

$

$

Currently unavailable

31

Homelite 310711083

Fuel Tank

$

$

Not available

32

Homelite 570355007

Fuel Tank Support

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678815010

Clamp (D9 x 1.2 mm)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 678815011

Clamp (D7 x 0.8 mm)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 570358050

Fuel Line (D4 x D8 x 260 mm)

$3.49

$

In Stock, only 2 left!

0

36

Homelite 570358051

Fuel Line (D4 x D8 x 130 mm)

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 570358049

Fuel Line (D4 x D8 x 170 mm)

$3.49

$

Usually ships in 3-7 days

0

38

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

39

Homelite 760504008

Engine Shut Off Switch

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 940617107

Quick Start Label

$

$

Not available

41

Homelite 524002001

Switch Handle

$

$

Not available

42

Homelite 940708021

Lubricant Label

$

$

Not available

43

Homelite 660972024

Bolt (M6 x 30 mm)

$

$

Not available

44

Homelite 940748014

Logo Label (Left)

$

$

Not available

45

Homelite 940647086

Choke Label

$

$

Not available

46

Homelite 524016004

Maintenance Cover

$

$

Currently unavailable

47

Homelite 660972023

Bolt (M6 x 100 mm)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 524001005

Left Housing

$

$

Currently unavailable

49

Homelite 940515021

CPSC Label

$

$

Not available

50

Homelite 524007001

Air Filter Back

$

$

Not available

51

Homelite 524008001

Air Filter Cover

$

$

Not available

52

Homelite 901709001

Air Filter (Lower)

$1.99

$

In Stock, Qty 9

0

53

Homelite 901709002

Air Filter (Upper)

$2.99

$

In Stock, only 2 left!

0

54

Homelite 570740029

Intake Gasket

$

$

Not available

55

Homelite 679449001

Governor Damping Spring

$

$

Not available

56

Homelite 308054057

Carburetor Assembly

$

$

Not available

57

Homelite 570740028

Carburetor Gasket

$1.99

$

In Stock, only 2 left!

0

58

Homelite 524006001

Heat Dam Insulator

$1.99

$

In Stock, only 2 left!

0

59

Homelite 570358052

Pulse Line (D7 x D11 x 160 mm)

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 310302003

Dipstick

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 570740027

Insulator Gasket

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 524021001

Governor Bottom Cover

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 230404001

Governor

$

$

Not available

64

Homelite 524023001

Governor Top Cover

$1.49

$

Usually ships in 3-7 days

0

65

Homelite 570740030

Manifold Gasket

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 570740031

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 308990042

Muffler

$33.99

$

Usually ships in 3-7 days

0

68

Homelite 638147005

Spark Arrestor

$4.49

$

Usually ships in 3-7 days

0

69

Homelite 638238003

Muffler Cover Seal

$5.99

$

In Stock, only 1 left!

0

70

Homelite 524012001

Muffler Cover
(Superseded to 524092001)

$17.99

$

Usually ships in 3-7 days

0

71

Homelite 940678263

Data Label

$

$

Currently unavailable

72

Homelite 940947007

Combustion Label

$

$

Not available

73

Homelite 940680046

Hot Surface Label

$0.99

$

Usually ships in 3-7 days

0

74

Homelite 310552001

Rope Handle Assembly (Inc. Key Nos. 75-76)

$1.49

$

Usually ships in 3-7 days

0

75

Homelite 524011001

Handle Cover (Rope)

$1.99

$

In Stock, only 3 left!

0

76

Homelite 524015001

Rope Handle

$1.49

$

Usually ships in 3-7 days

0

77

Homelite 310755007

Recoil Starter Assembly (Inc. Key Nos. 75-76)

$

$

Not available

78

Homelite 850202001

Ignition Coil

$30.99

$

Usually ships in 3-7 days

0

79

Homelite 290991004

Inverter Module

$355.99

$

Usually ships in 3-7 days

0

80

Homelite 310224026

Foot Brace (Front Handle)

$

$

Not available

81

Homelite 570355008

Inverter Module Support

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 524018001

Control Panel Holder

$3.49

$

Usually ships in 3-7 days

0

83

Homelite 940748015

Logo Label (Small)

$

$

Not available

84

Homelite 940513025

Ground Warning Label

$

$

Not available

85

Homelite 870174004

Spark Plug

$7.49

$

In Stock, Qty 10

0

86

Homelite 519711005

Fuel Shut Off Valve

$

$

Not available

87

Homelite 940971072

Hangtag (Instructions)

$

$

Not available

88

Homelite 870932002

Parallel Plug

$2.99

$

Usually ships in 3-7 days

0

89

Homelite 780350001

Circuit Breaker (20 Amp)

$

$

Not available

90

Homelite 570412003

Receptacle Cover

$4.99

$

Usually ships in 3-7 days

0

91

Homelite 940748013

Logo Label (Right)

$

$

Not available

92

Homelite 940779082

Performance Label

$

$

Not available

93

Homelite 940708020

Check Oil Label

$

$

Not available

Homelite 990000014

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 990000015

Replacement Parts List

Note: Not Shown

$

$

Currently unavailable

Homelite 990000016

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable
