PW 1500 (UT-01815) - Homelite Pressure Washer Pump Assembly Parts Diagram

Pressure Washer

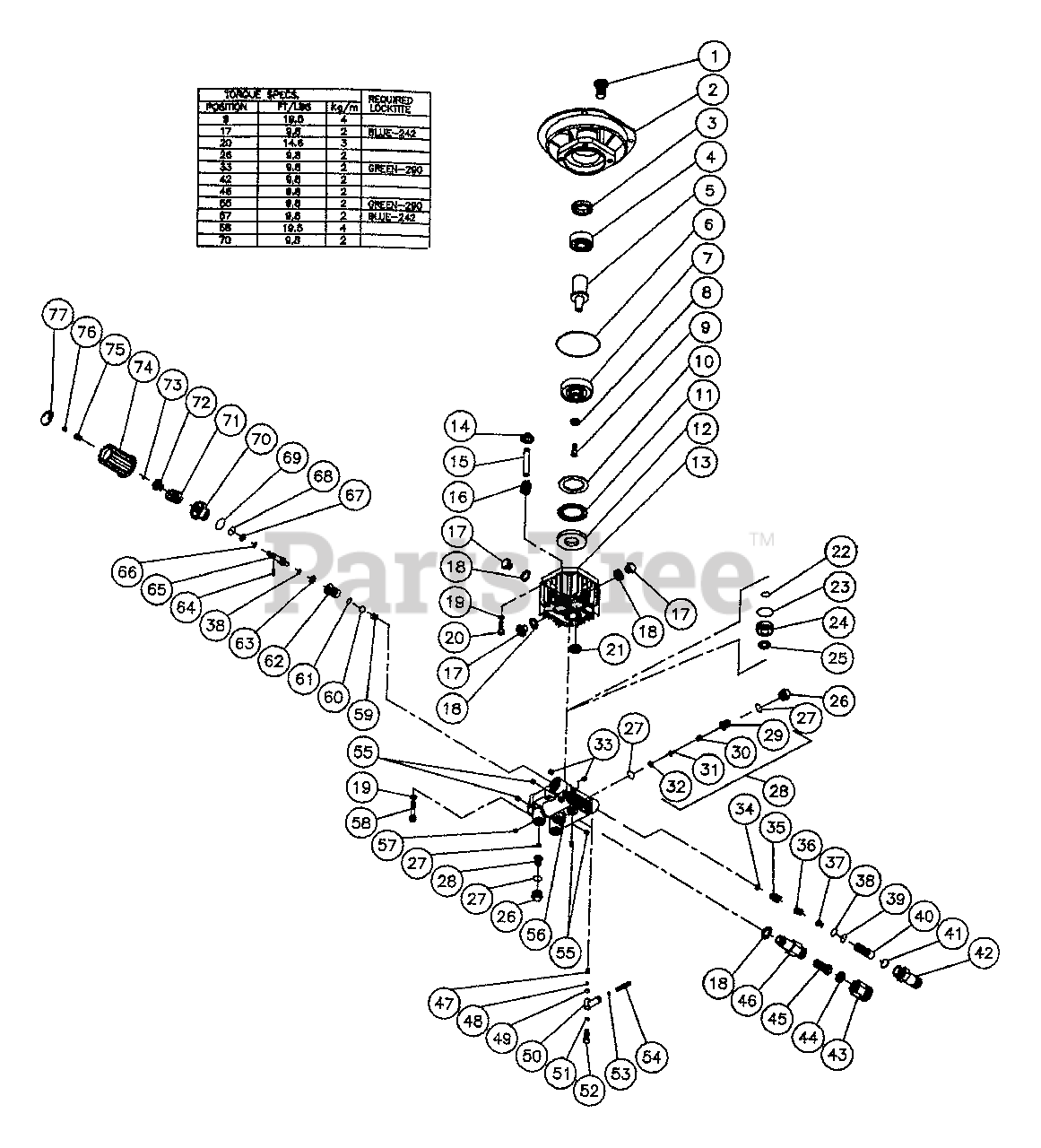

Pump Assembly Parts Diagram

  • Title

1

Homelite 0762801

Vent

$

$

Currently unavailable

2

Homelite 0762802

Range

$

$

Currently unavailable

3

Homelite 0762803

Oil Seal

$

$

Currently unavailable

4

Homelite 0762804

Bearing

$

$

Currently unavailable

5

Homelite 0762805

Shaft

$

$

Currently unavailable

6

Homelite 0762806

O-ring

$

$

Currently unavailable

7

Homelite 0762807

Wobble Plate

$

$

Currently unavailable

8

Homelite 0762808

Washer

$

$

Currently unavailable

9

Homelite 0762809

Bolt

$

$

Currently unavailable

10

Homelite 0762810

Bearing Disc

$

$

Currently unavailable

11

Homelite 0762811

Bearing

$

$

Currently unavailable

12

Homelite 0762812

Bearing Disc

$

$

Currently unavailable

13

Homelite 0762813

Pump Housing

$

$

Currently unavailable

14

Homelite 0762814

Piston Spring Retainer

$

$

Currently unavailable

15

Homelite 0762815

Piston

$

$

Currently unavailable

16

Homelite 0762816

Piston Spring

$

$

Currently unavailable

17

Homelite 0762817

Oil Drain Plug

$

$

Currently unavailable

18

Homelite 0762818

Gasket

$

$

Currently unavailable

19

Homelite 0762819

Lockwasher

$

$

Currently unavailable

20

Homelite 0762820

Bolt

$4.49

$

Usually ships in 3-7 days

0

21

~N/A Sep.

Oil Seal (See 07575-06)

$

$

Not available

22

~N/A Sep.

O-ring (See 07575-04)

$

$

Not available

23

~N/A Sep.

O-ring (See 07575-04)

$

$

Not available

24

Homelite 0762821

Packing Retainer

$

$

Currently unavailable

25

~N/A Sep.

Pressure Seal (See 07575-04)

$

$

Not available

26

Homelite 0762822

Valve Plug

$

$

Currently unavailable

27

Homelite 0762823

O-ring

$

$

Currently unavailable

28

~N/A Sep.

Valve Complete (See 07628-64)

$

$

Not available

29

~N/A Sep.

Valve Cage (See 07628-64)

$

$

Not available

30

~N/A Sep.

Valve Spring (See 07628-64)

$

$

Not available

31

~N/A Sep.

Valve Plate (See 07628-64)

$

$

Not available

32

~N/A Sep.

Valve Seat (See 07628-64)

$

$

Not available

33

Homelite 0762824

Screw

$4.49

$

Usually ships in 3-7 days

0

34

Homelite 0762825

O-ring

$

$

Currently unavailable

35

Homelite 0762826

No Return Valve

$

$

Currently unavailable

36

Homelite 0762827

Spring

$

$

Currently unavailable

37

Homelite 0762828

Injector Nozzle

$

$

Currently unavailable

38

Homelite 0762829

O-ring

$

$

Not available

39

Homelite 0757514

O-ring

$

$

Currently unavailable

40

Homelite 0762831

Injector Bushing

$

$

Currently unavailable

41

Homelite 0762832

O-ring

$

$

Currently unavailable

42

Homelite 0762833

Outlet Connector

$

$

Currently unavailable

43

Homelite 0762834

Garden Hose Connection

$

$

Currently unavailable

44

Homelite 0762835

Gasket

$

$

Not available

45

Homelite 0762836

Filter Inlet

$

$

Currently unavailable

46

Homelite 0762837

Inlet Connector

$

$

Currently unavailable

47

~N/A Sep.

Spring (See 07628-67)

$

$

Not available

48

~N/A Sep.

Ball (See 07628-67)

$

$

Not available

49

~N/A Sep.

O-ring (See 07628-67)

$

$

Not available

50

Homelite 0762838

Plastic Fitting

$4.49

$

Usually ships in 3-7 days

0

51

~N/A Sep.

O-ring (See 07628-67)

$

$

Not available

52

Homelite 0762839

Banjo Fitting

$

$

Currently unavailable

53

Homelite 0762840

O-ring

$

$

Currently unavailable

54

Homelite 0762841

Hose Barb

$

$

Currently unavailable

55

Homelite 0762842

Screw

$

$

Currently unavailable

56

Homelite 0762843

Pump Manifold

$

$

Currently unavailable

57

Homelite 0762844

Screw

$

$

Currently unavailable

58

Homelite 0762845

Screw

$

$

Currently unavailable

59

Homelite 0762846

Spring

$

$

Currently unavailable

60

Homelite 0762847

Ball

$4.49

$

Usually ships in 3-7 days

0

61

Homelite 0762848

O-ring

$

$

Currently unavailable

62

Homelite 0762849

Valve Seat

$

$

Currently unavailable

63

Homelite 0762850

Back-up Ring

$

$

Currently unavailable

64

Homelite 0762851

Roll Pin

$

$

Currently unavailable

65

~N/A Sep.

Piston By-pass Valve (See 07575-45)

$

$

Not available

66

Homelite 0762852

O-ring

$

$

Currently unavailable

67

Homelite 0762853

Back-up Ring

$

$

Currently unavailable

68

Homelite 0762854

O-ring

$3.99

$

Usually ships in 3-7 days

0

69

Homelite 0762855

O-ring

$

$

Currently unavailable

70

Homelite 0762856

Body By-pass Valve

$

$

Currently unavailable

71

Homelite 0762857

Pressure Regulator Spring-1500 PSI

$

$

Currently unavailable

72

Homelite 0762858

Pressure Regulator Screw

$

$

Currently unavailable

73

Homelite 0762859

Snap Ring

$

$

Currently unavailable

74

Homelite 0762860

Pressure Regulation Knob

$

$

Currently unavailable

75

Homelite 0762861

Screw

$

$

Currently unavailable

76

Homelite 0762862

Screw

$

$

Currently unavailable

77

Homelite 0762863

Cap

$

$

Currently unavailable

Homelite 0757506

Oil Seal Kit

Note: (3 each 21)

$

$

Currently unavailable

Homelite 0757504

Packing Kit

Note: (3 each 22, 23, 25)

$

$

Currently unavailable

Homelite 0762864

Valve Kit

Note: (6 each 27 & 28)

$

$

Not available

Homelite 0762865

Unloader Check Valve Kit

Note: (1 each 34-40)

$

$

Currently unavailable

Homelite 0762866

Unloader Stem Kit

Note: (1 each 34-36, 38, 59-77)

$

$

Currently unavailable

Homelite 0762867

Injector Repair Kit

Note: (1 each 47-49, 51)

$

$

Not available

Homelite 0762868

Manifold Assembly

Note: (1 each 1-42, 46-57, 59-77)

$

$

Currently unavailable
