PW 23000 (01807-0) - Snapper 2,300 PSI Pressure Washer PRESSURE WASHER PUMP Parts Diagram

2,300 PSI Pressure Washer

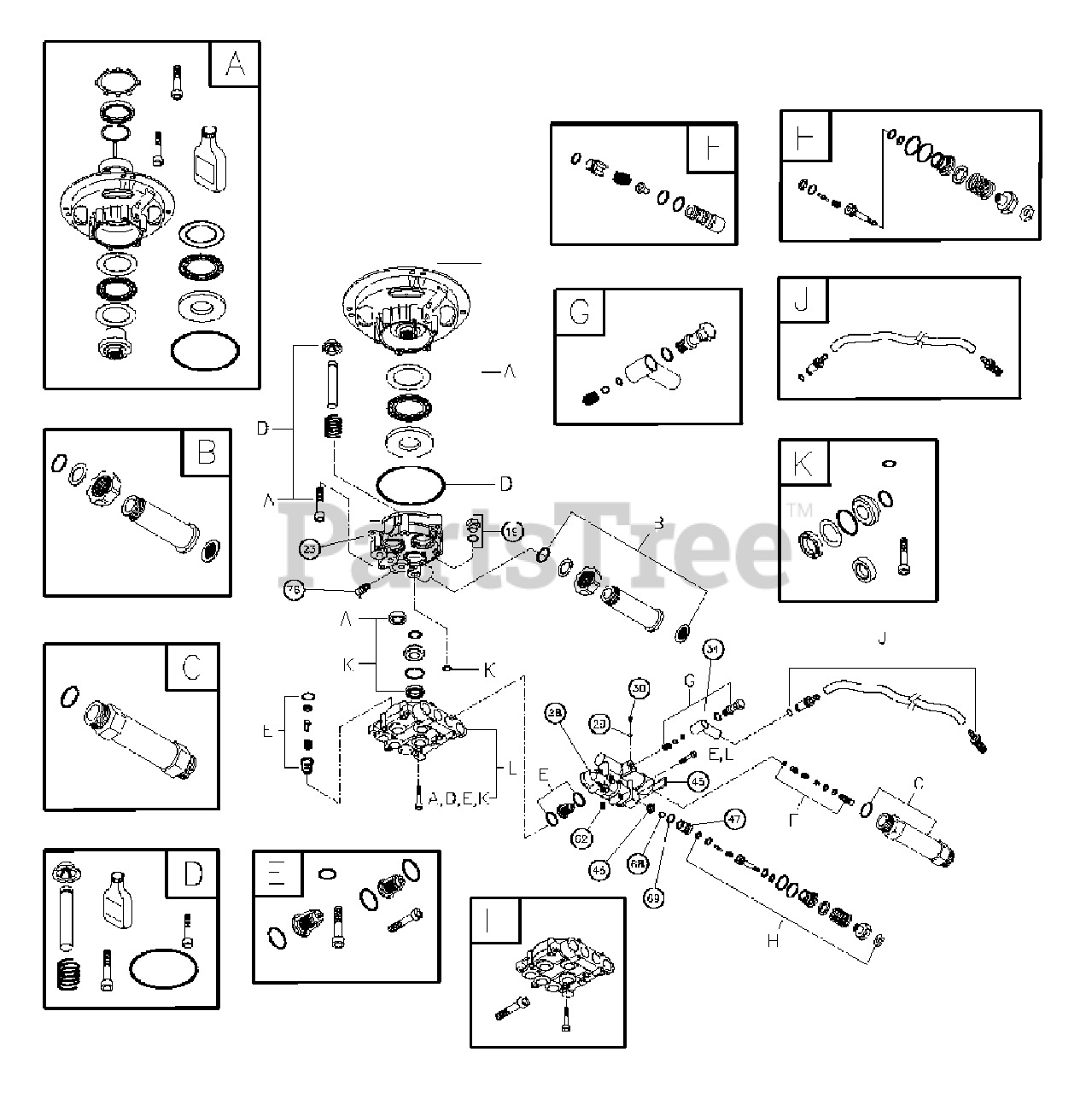

PRESSURE WASHER PUMP Parts Diagram

  • Title

19

Snapper 190571GS

CAP, Oil

$

$

Not available

23

Snapper 190626GS

CARTER

$56.99

$

Usually ships in 2-12 days

0

28

Snapper 190627GS

MANIFOLD

$100.99

$

Usually ships in 2-12 days

0

29

Snapper 190575GS

O-RING
(Superseded to 193971GS)

$7.99

$

In Stock, only 1 left!

0

30

Snapper 190576GS

SCREW
(Superseded to 193971GS)

$7.99

$

In Stock, only 1 left!

0

34

Snapper 190577GS

CONNECTION, Chemical Inlet

$6.99

$

Usually ships in 2-12 days

0

45

Snapper 190578GS

PIN

$

$

Not available

46

Snapper 190579GS

VALVE, Seat Plate, Brass
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

47

Snapper 190580GS

VALVE, Seat, Stainless
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

62

Snapper 190581GS

CAP

$7.99

$

Usually ships in 2-12 days

0

68

Snapper 190582GS

BALL, Stainless Steel
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Snapper 190584GS

O-RING
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Snapper 21783GS

THERMO RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 11

0

77

Snapper 190586GS

OIL BOTTLE (Not shown)

$11.99

$

Usually ships in 2-12 days

0

A

Snapper 190709GS

KIT, WOBBLE PLATE BEARING

Note: NOTE: Item letters A - L are service kits and include all parts shown within the box.

$173.99

$

Usually ships in 2-12 days

0

B

Snapper 190632GS

KIT, WATER INLET, ALUM

$

$

Not available

C

Snapper 190634GS

KIT, OUTLET, ALUM
(Superseded to 201497GS)

$28.99

$

In Stock, Qty 16

0

D

Snapper 190710GS

KIT, PISTON

$109.99

$

Usually ships in 2-12 days

0

E

Snapper 190591GS

KIT, CHECK VALVES

$40.99

$

In Stock, only 1 left!

0

F

Snapper 190592GS

KIT, INLET CHECK

$20.99

$

Usually ships in 2-12 days

0

G

Snapper 190593GS

KIT, CHEMICAL INJECTION

$

$

Not available

H

Snapper 190594GS

KIT, UNLOADER STEM

$81.99

$

Usually ships in 2-12 days

0

J

Snapper 189971GS

KIT, CHEMICIAL HOSE

$

$

Not available

K

Snapper 190595GS

KIT, SEAL SET

$96.99

$

In Stock, only 1 left!

0

L

Snapper 190596GS

KIT, HEAD BRASS

$163.99

$

Usually ships in 2-12 days

0
