PW 35000 (01662-0) - Snapper 3,500 PSI Pressure Washer Main Unit Parts Diagram

3,500 PSI Pressure Washer

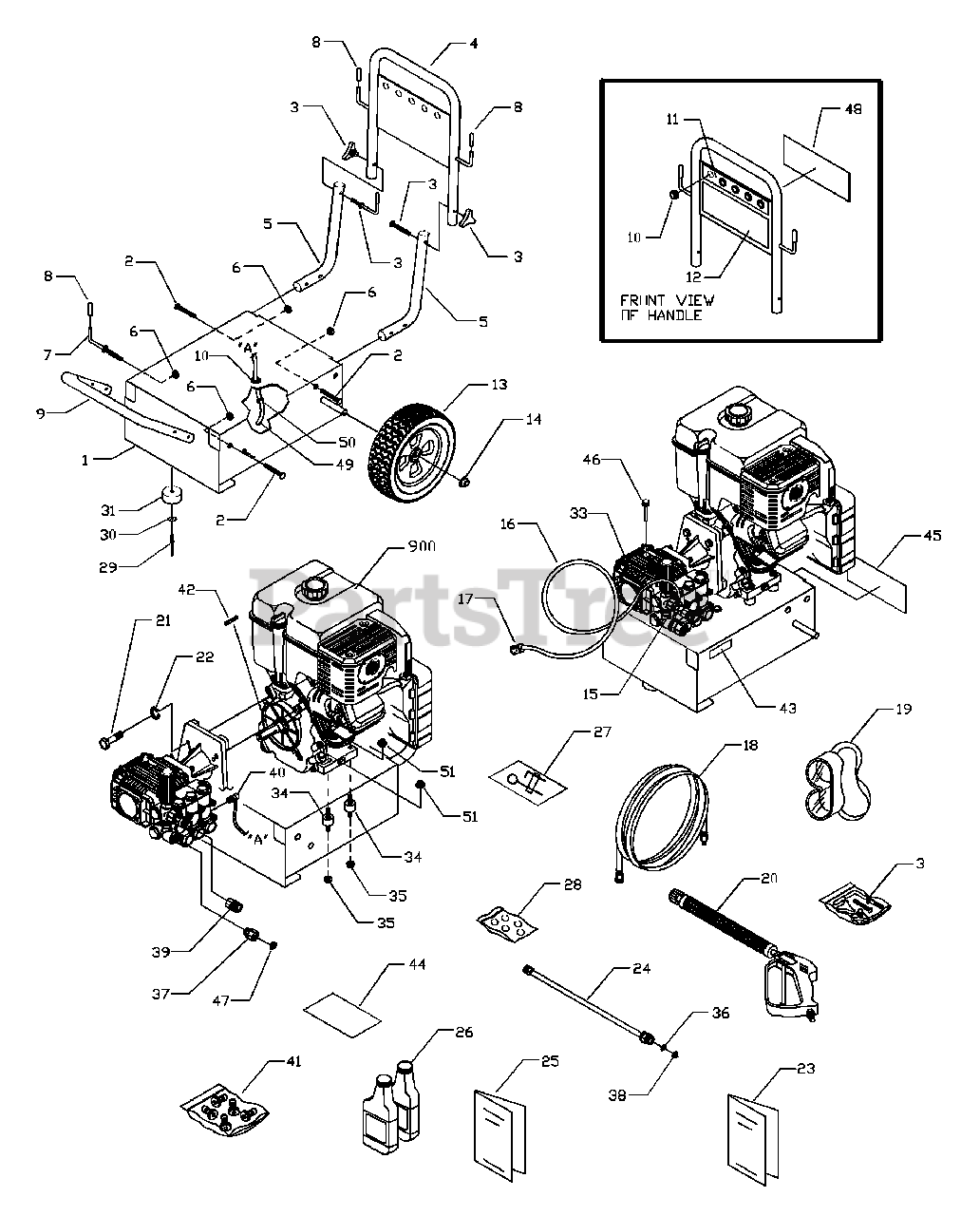

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton L189641GS

BASE

$181.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187978GS

KIT, Handle Hardware

$7.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton C190293GS

HANDLE
(Superseded to B190293GS)

$104.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton CB1981GS

SUPPORT, Handle

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583GS

NUT, Hex Flange

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150GS

HOOK, 5/16" Square Neck Gun

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Black Vinyl

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton CB1982GS

BUMPER

$

$

Not available

10

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187974GS

DECAL, 5 QD Nozzles

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 190615GS

DECAL, Unit

$1.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 190100GS

ASSEMBLY, Wheel

$35.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040DGS

HOSE, Chemical Inject
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

19

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436BGS

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 23645GS

CAPSCREW, Socket Head

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237GS

LOCKWASHER

$2.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 190667GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3858GS

ASSY., Wand Ext. with QD

$

$

Not available

25

Briggs & Stratton MS6321

MANUAL, B&S, Vanguard

$

$

Currently unavailable

26

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 188287GS

KIT, Nozzle Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, only 4 left!

0

28

Briggs & Stratton B5830GS

KIT, O-Ring Maintenance

$

$

Not available

29

Briggs & Stratton 188194GS

BLIND RIVET

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 71693GS

FLAT WASHER

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 27007GS

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

33

Briggs & Stratton 185805GS

PUMP, Assembly
(Superseded to 195110GS)

Note: (See "Pump" and "Unloader" illustrations and parts lists.)

$

$

Not available

34

Briggs & Stratton 21217GS

MOUNT, Vibration

$7.49

$

In Stock, only 1 left!

0

35

Briggs & Stratton 67989GS

NUT, M8, Flange

$3.49

$

In Stock, Qty 20+

0

36

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 95320GS

INLET, Garden Hose

$42.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97837GS

O-RING, High Pressure Hose

$3.49

$

In Stock, Qty 9

0

39

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B1554GS

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton B4847GS

KIT, Nozzles QD

$32.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

43

Briggs & Stratton 187952GS

DECAL, Cool Down System

$8.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 190277FGS

CARD, Owners Registration

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190616GS

DECAL, PW, Snapper

$1.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 11287628PGS

DIPSTICK, Pump

$28.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2384GS

FILTER, Inlet

$4.49

$

In Stock, only 1 left!

0

48

Briggs & Stratton B4160GS

DECAL, Warning/Start

$15.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B3107GS

HOSE, Thermal Relief

$12.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton B1880GS

NUT, M8, w/Washer

$3.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
