PW 35000 (01662-0) - Snapper 3,500 PSI Pressure Washer Unloader Parts Diagram

3,500 PSI Pressure Washer

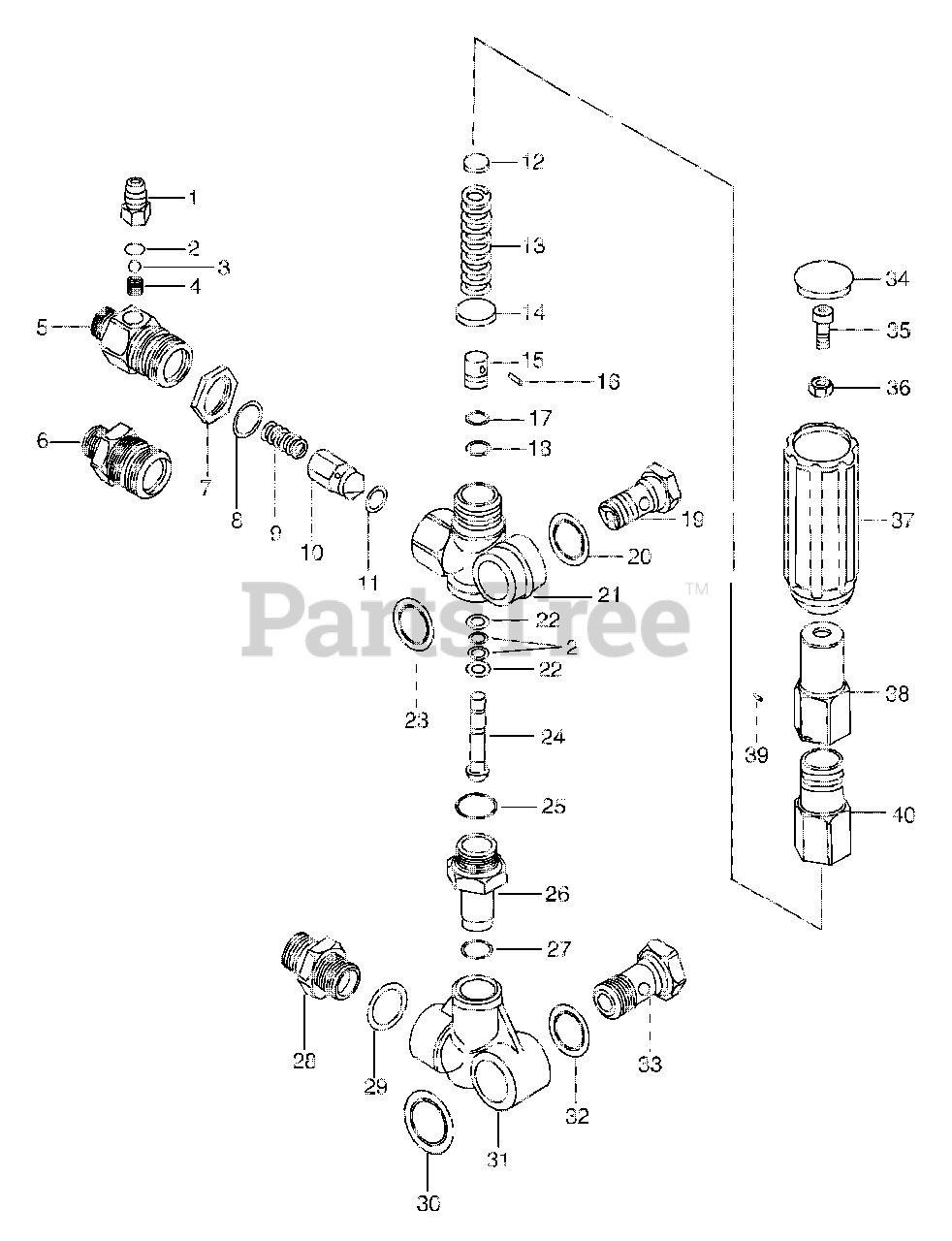

Unloader Parts Diagram

  • Title

Briggs & Stratton 153B2126GS

Complete Unloader

$250.99

$

In Stock, only 1 left!

0

1

Briggs & Stratton 210B2327GS

Hose Tail
(Superseded to 190642GS)

$21.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 231B2327GS

O-Ring
(Superseded to 192914GS)

$24.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 211B2327GS

Stainless Ball

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 212B2327GS

Spring

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 213B2126GS

Injector Body

$110.99

$

Usually ships in 2-12 days

0

6

UNKNOWN

$

$

Not available

7

Briggs & Stratton 215B2327GS

Injector Nut

$38.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 137B2327GS

O-Ring

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 216B2327GS

Spring

$9.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 217B2327GS

Plunger

$59.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 218B2327GS

O-Ring

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 220B2327GS

Spacer Plate

$66.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 221B2327GS

Spring

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 222B2327GS

Spring, Spacer Plate

$14.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 219B2327GS

Upper Piston

$71.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 223B2327GS

Pin

$8.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 224B2327GS

Ring

$5.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 225B2327GS

O-Ring

$2.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 226B2327GS

Inlet Bolt

$54.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 227B2327GS

Washer

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 228B2327GS

Valve Housing

$219.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 229B2327GS

Ring

$8.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 230B2327GS

Washer

$22.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 232B2327GS

Lower Piston

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 234B2327GS

O-Ring

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 233B2327GS

Piston Guide

$83.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 235B2327GS

O-Ring

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 241B2327GS

Suction Fitting

$39.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 240B2327GS

O-Ring

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 239B2327GS

Washer

$22.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 238B2327GS

Bypass Fitting

$153.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 237B2327GS

Washer

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 236B2327GS

Inlet Bolt

$60.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 248B2327GS

Plug

$12.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 155B2327GS

Screw

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 246B2327GS

Nut

$0.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 245B2327GS

Knob

$7.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 243B2327GS

Housing

$104.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 244B2327GS

Pin

$13.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 242B2327GS

Spring Guide

$113.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95320GS

Garden Hose Connector

$42.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 95458GS

Quick Connect Connector
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0
