PW 460 (967678001) - Husqvarna Pressure Washer (2017-10) PUMP Parts Diagram

Pressure Washer

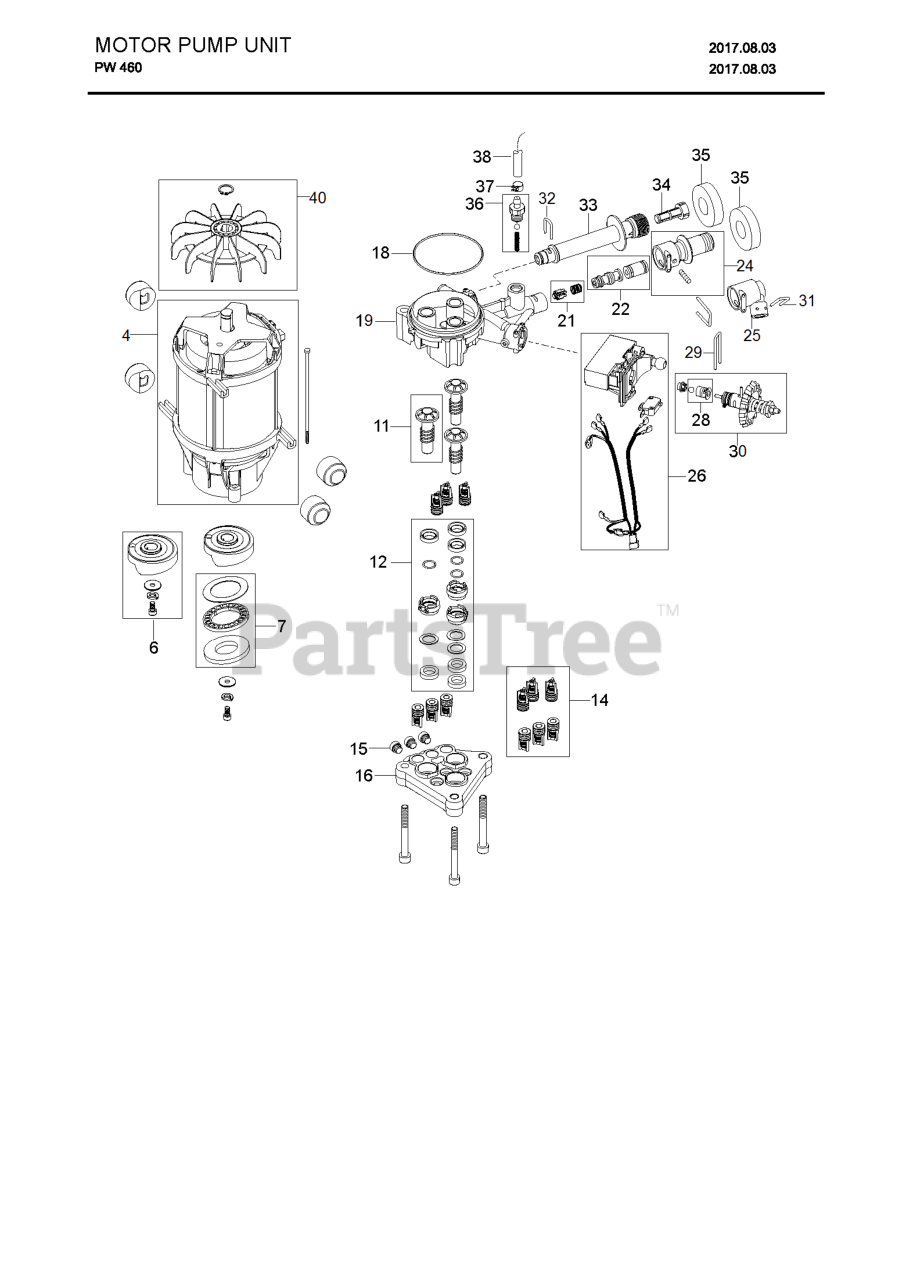

PUMP Parts Diagram

  • Title

15

Husqvarna 592617681

NEEDS DESCRIPTION

Note: PLUG WITH O-RING

$

$

Currently unavailable

26

Husqvarna 592617660

NEEDS DESCRIPTION

Note: MICRO SWITCH BOX SYSTEM SP

$

$

Currently unavailable

33

Husqvarna 592617716

NEEDS DESCRIPTION

Note: WATER INLET SP

$

$

Currently unavailable

11

Husqvarna 592617680

NEEDS DESCRIPTION

Note: PISTON.CERAMIC REP.KIT

$

$

Currently unavailable

32

Husqvarna 596024601

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 596678901

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 592617620

NEEDS DESCRIPTION

Note: CYLINDERHEAD

$

$

Currently unavailable

7

Husqvarna 592617604

NEEDS DESCRIPTION

Note: BEARING REPAIR KIT

$

$

Currently unavailable

21

Husqvarna 592617664

NEEDS DESCRIPTION

Note: NON RETURN VALVE SP

$

$

Currently unavailable

14

Husqvarna 592617712

NEEDS DESCRIPTION

Note: VALVE SYSTEM REPARE KIT

$

$

Currently unavailable

37

Husqvarna 592617641

NEEDS DESCRIPTION

Note: HOSE CLIP R12

$

$

Currently unavailable

6

Husqvarna 592617717

NEEDS DESCRIPTION

Note: WOBBLE DISC 8.4 DEGREE SP (AU)

$

$

Currently unavailable

24

Husqvarna 596026601

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 596025301

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 592617650

NEEDS DESCRIPTION

Note: INJECTOR 1.64MM SP

$

$

Currently unavailable

30

Husqvarna 592617711

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 596024701

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 592617651

NEEDS DESCRIPTION

Note: INLET FILTER MESH SP

$

$

Currently unavailable

36

Husqvarna 592617646

NEEDS DESCRIPTION

Note: HOSE TAIL

$

$

Currently unavailable

18

Husqvarna 592617666

NEEDS DESCRIPTION

Note: O-RING 80X2 NITRIL 70 SHORE

$

$

Currently unavailable

12

Husqvarna 592617690

NEEDS DESCRIPTION

Note: REP SEALING SYS CERAMIC SP

$

$

Currently unavailable

38

Husqvarna 592617639

NEEDS DESCRIPTION

Note: HOSE diam. 6X3

$

$

Currently unavailable

25

Husqvarna 596026701

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 592617625

NEEDS DESCRIPTION

Note: EASY START SP

$

$

Currently unavailable

19

Husqvarna 596679101

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 596289101

NEEDS DESCRIPTION

$

$

Currently unavailable

6

Husqvarna 593130901

NEEDS DESCRIPTION

Note: WOBBLE DISC 10 DEGREE SP (EU)

$

$

Currently unavailable

35

Husqvarna 592617627

NEEDS DESCRIPTION

Note: FOAM SEAL FOR OUTLET & INLET

$

$

Currently unavailable
