PZ 29 D (966554801-01) - Husqvarna Zero-Turn Mower (2015-02) SEAT Parts Diagram

Zero-Turn Mower

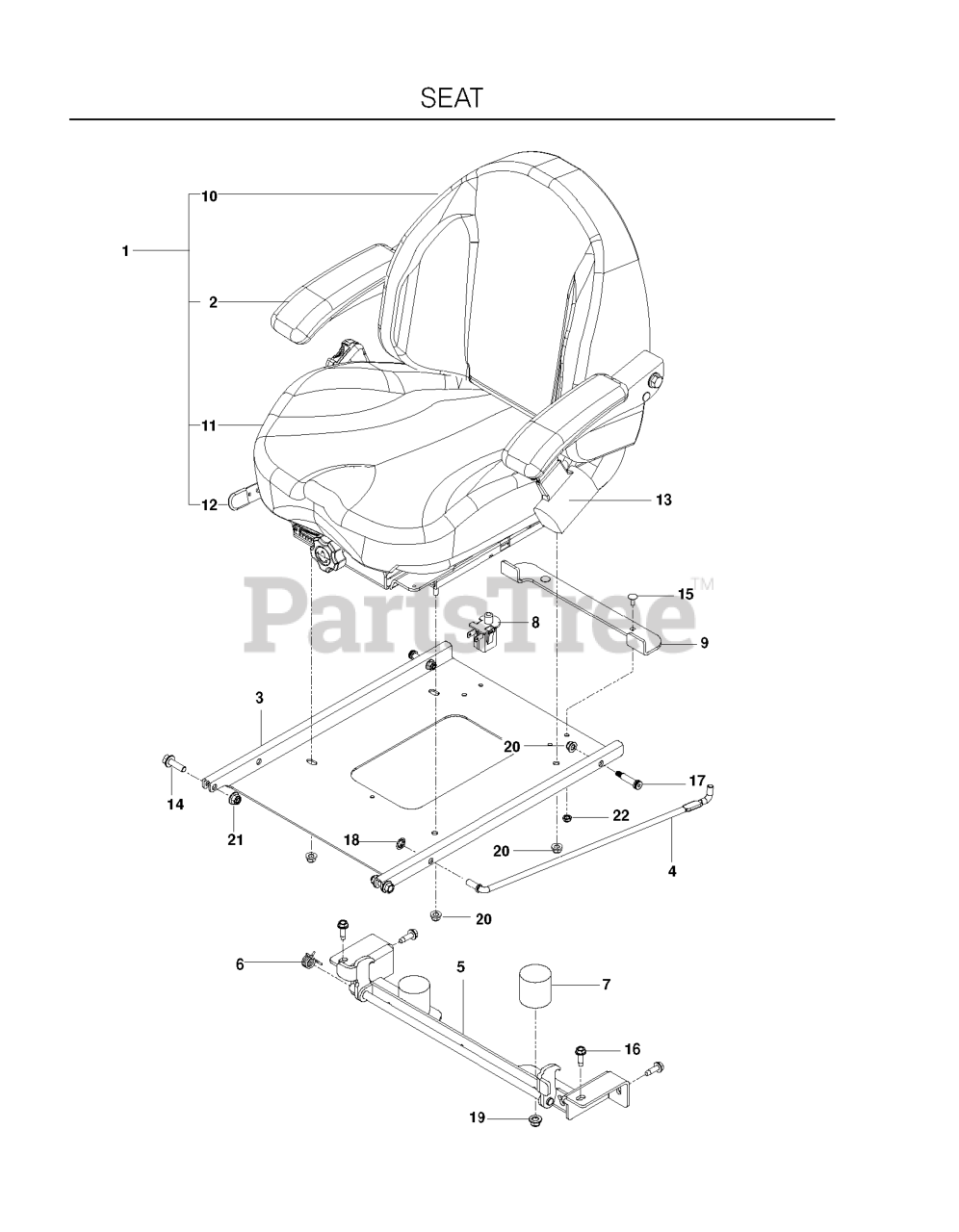

SEAT Parts Diagram

  • Title

19

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

6

Husqvarna 520283101

SPRING, TORSION

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574284601

Seat Assy

$1040.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575321702

STOP, SEAT, BLK

$18.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574284602

COVER, BACK

$182.99

$

Usually ships in 3-10 days

0

21

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

3

Husqvarna 510039302

PAN, SEAT, BLACK

$145.99

$

In Stock, only 1 left!

0

4

Husqvarna 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 574284604

TRACK KIT

$159.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 574284605

ARMREST, LT

Note: LT

$133.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

7

Husqvarna 510283801

BUMPER, RUBBER

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574284603

COVER KIT, CUSHION

$226.99

$

Usually ships in 3-10 days

0

17

Husqvarna 515990601

BOLT, SHOULDER 3/8 X 1.25

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574182202

LATCH.SEAT.BLACK

$267.99

$

Usually ships in 3-10 days

0

14

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0
