PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2011-02) ENGINE PLATE Parts Diagram

Zero-Turn Mower

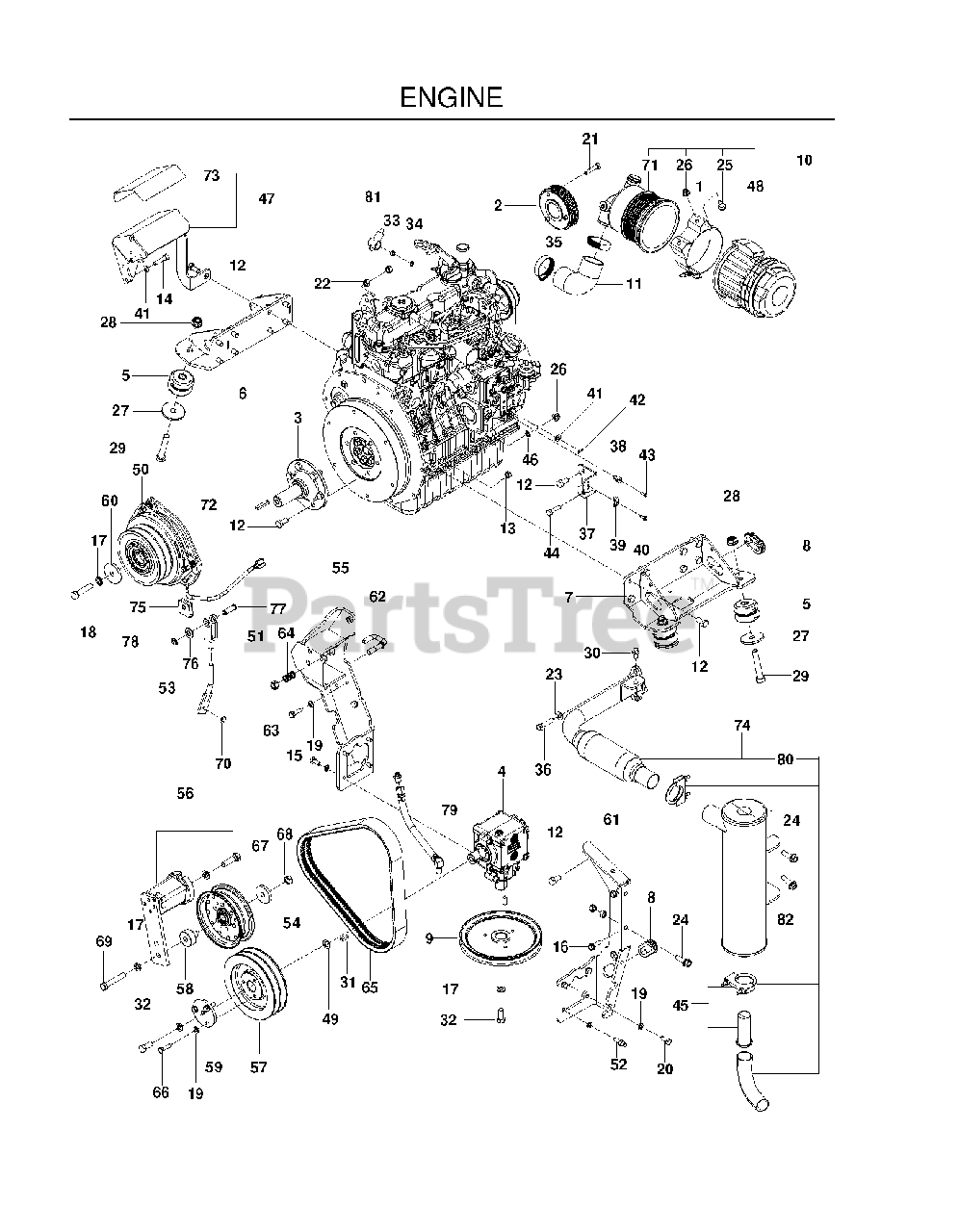

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 539108474

Mounting Bracket

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 515989601

Crank Pulley

$61.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574890701

SHAFT, PILOT

$

$

Not available

4

Husqvarna 575509401

GEAR BOX, 90 DEGREE

$849.99

$

Usually ships in 3-10 days

0

5

Husqvarna 515990102

ISOLATOR, ENGINE

$

$

Not available

6

Husqvarna 515989002

MOUNT, MOTOR, LT - BLK

Note: LT

$103.99

$

Usually ships in 3-10 days

0

7

Husqvarna 515988802

MOUNT, MOTOR, RT - BLK

Note: RT

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539103684

Grommet

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 515997601

PULLEY, DRIVE, DECK

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539106376

AIR FILTER ASSY - NON-TURBO

$364.99

$

Usually ships in 3-10 days

0

11

Husqvarna 515990401

HOSE, AIR INTAKE

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 522453101

HCS M10-1.25 X 20 GR 8.8 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539977692

HTB M8-1.125 X 25MM

$0.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539115578

M8X1.25X25 HHB GR8.8

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539115648

5/16-18X1 TAP SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

18

Husqvarna 539111990

HCS 7/16-20 X 2 G8 ZN

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 521998801

HCS MB 1.25 X 35 GR 8.8 ZD

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

23

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

25

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 539111844

WASHER, HEAVY

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

30

Husqvarna 539122388

SCREW M8X1.25X16 HHB GR 8.8

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102067

KEY 1/4 SQ X 3/4

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 539124775

SCREW 7/16-20 X 1 HHB GR5

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539117980

NUT M6 X 1.0 HEX

$2.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 539106384

Clamp

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 522545201

Throttle Bracket

$14.99

$

Usually ships in 3-10 days

0

38

Husqvarna 522545301

SWIVEL, THROTTLE

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 522752701

Cable Clamp

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990555

COTTER PIN 3/32 X 1/2

$1.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

45

Husqvarna 575244505

KIT.SPARK.ARRESTER

$

$

Not available

46

Husqvarna 539109556

WASHER 5/16 EXT STAR

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 575420403

Shield, Heat

$80.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539108473

PRECLEANER ASM

$

$

Not available

49

Husqvarna 539115610

WASHER .515 X .874 X .031

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 574804001

CLUTCH, OGURA, DIESEL

$848.99

$

Usually ships in 3-10 days

0

51

Husqvarna 574803901

YOKE, CLEVIS

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 574804501

PIN, PIVOT

$

$

Not available

53

Husqvarna 574803801

LINKAGE, ANTI-ROTATION

$

$

Not available

54

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

55

Husqvarna 574751402

MOUNT, GEAR BOX, BLK

$460.99

$

Usually ships in 3-10 days

0

56

Husqvarna 574804301

TENSIONER, LOVEJOY, SE27

$

$

Not available

57

Husqvarna 574753301

PULLEY, GEAR BOX

$

$

Not available

58

Husqvarna 574394201

MOUNT, IDLER

$

$

Not available

59

Husqvarna 574890401

PLATE, PULLEY

$

$

Not available

60

Husqvarna 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

61

Husqvarna 574888203

MOUNT, GEAR BOX, BLK

$157.99

$

Usually ships in 3-10 days

0

62

Husqvarna 574890601

PIN, DETENT

$31.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

64

Husqvarna 574890501

SPRING, COMPRESSION

$

$

Not available

65

Husqvarna 574804101

BELT, CLUTCH

$136.99

$

In Stock, only 1 left!

0

66

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

67

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

68

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

In Stock, Qty 9

0

69

Husqvarna 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 539990870

E RING 3/8"

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 539108470

BODY - 90 DEG

$303.99

$

Usually ships in 3-10 days

0

72

Husqvarna 539109161

KEY 1/4 SQ X 1-1/2

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 574480601

SHIELD, HEAT BARRIER

$21.99

$

Usually ships in 3-10 days

0

74

Husqvarna 575244501

MUFFLER.DIESEL.KUBOTA

$

$

Not available

75

Husqvarna 575699401

SPACER, RUBBER

$

$

Not available

76

Husqvarna 539110656

WASH 1/2 X 1 SPRG STL & NEOP

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 510090101

PIN, 7/16 CLEVIS

$

$

Not available

78

Husqvarna 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0

79

Husqvarna 575804901

HOSE, VENT

$17.99

$

Usually ships in 3-10 days

0

80

Husqvarna 575244503

PIPE, MANIFOLD, DIESEL

$

$

Not available

81

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

82

Husqvarna 575244502

MUFFLER, DIESEL

$264.99

$

Usually ships in 3-10 days

0

Husqvarna 574439302

HARNESS, ENGINE

Note: NOT SHOWN

$

$

Not available

Husqvarna 539127037

GROUND CABLE

Note: NOT SHOWN

$

$

Not available

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
