PZ 29 D CE (966616701) - Husqvarna Zero-Turn Mower (2011-02) STEERING Parts Diagram

Zero-Turn Mower

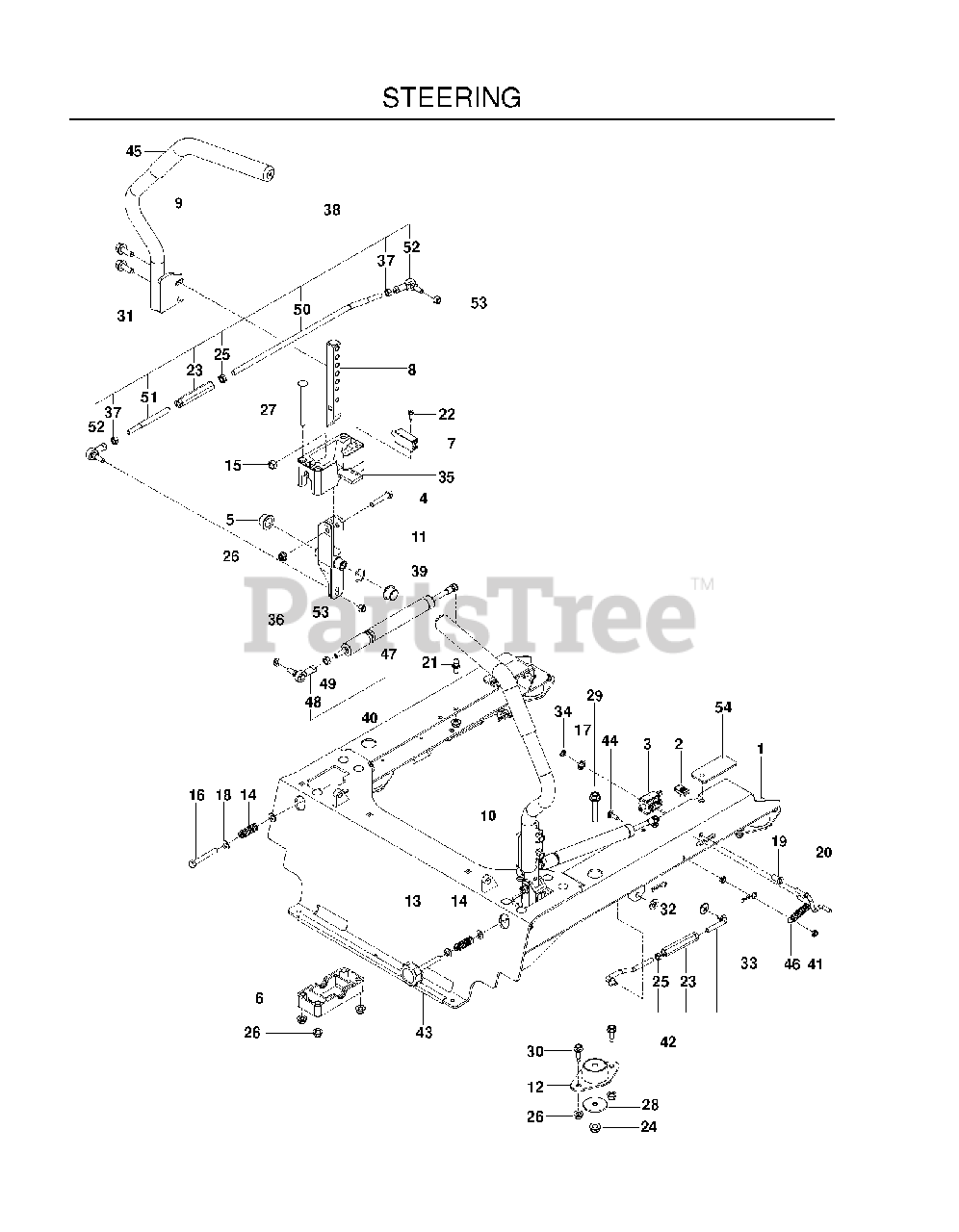

STEERING Parts Diagram

  • Title

1

Husqvarna 574189602

FRAME, SEAT MOUNT, ORG

$358.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

3

Husqvarna 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 17

0

4

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

5

Husqvarna 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 5

0

6

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574262701

LEVER, W/GRIP, RT

Note: RT

$109.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574262702

LEVER, W/GRIP, LT

Note: LT

$103.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510113203

LEVER, CONTROL

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510082101

MOUNT, ISO

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131799

KNOB

$

$

Not available

14

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990196

NUT 5/16C HEX

$1.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

17

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 539131665

RHSNB 5/16-18 X 3-3/4 GR 5 ZD

$

$

Not available

28

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

31

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

32

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102234

NUT PUSH

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

36

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 575324602

LINKAGE, CONTROL, DIESEL

$

$

Not available

39

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, Qty 10

0

40

Husqvarna 522842501

ASSEMBLY, DAMPENER

$102.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 525447901

ASSEMBLY, SEAT STRUT

$27.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539112294

FLEX TRIM, BLACK - LENGTH 1 FT
(Superseded to 589362602)

$3.99

$

In Stock, only 4 left!

0

44

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, Qty 12

0

46

Husqvarna 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 522612701

DAMPENER

$

$

Not available

48

Husqvarna 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 522559201

LINKAGE, CONTROL, FT

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 575324601

LINKAGE, CONTROL

$

$

Not available

52

Husqvarna 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 576688902

SPACER, BLK

$8.99

$

Usually ships in 3-10 days

0
