PZ 54 (967004002) - Husqvarna 54" Zero-Turn Mower (2013-01) ENGINE PLATE Parts Diagram

54" Zero-Turn Mower

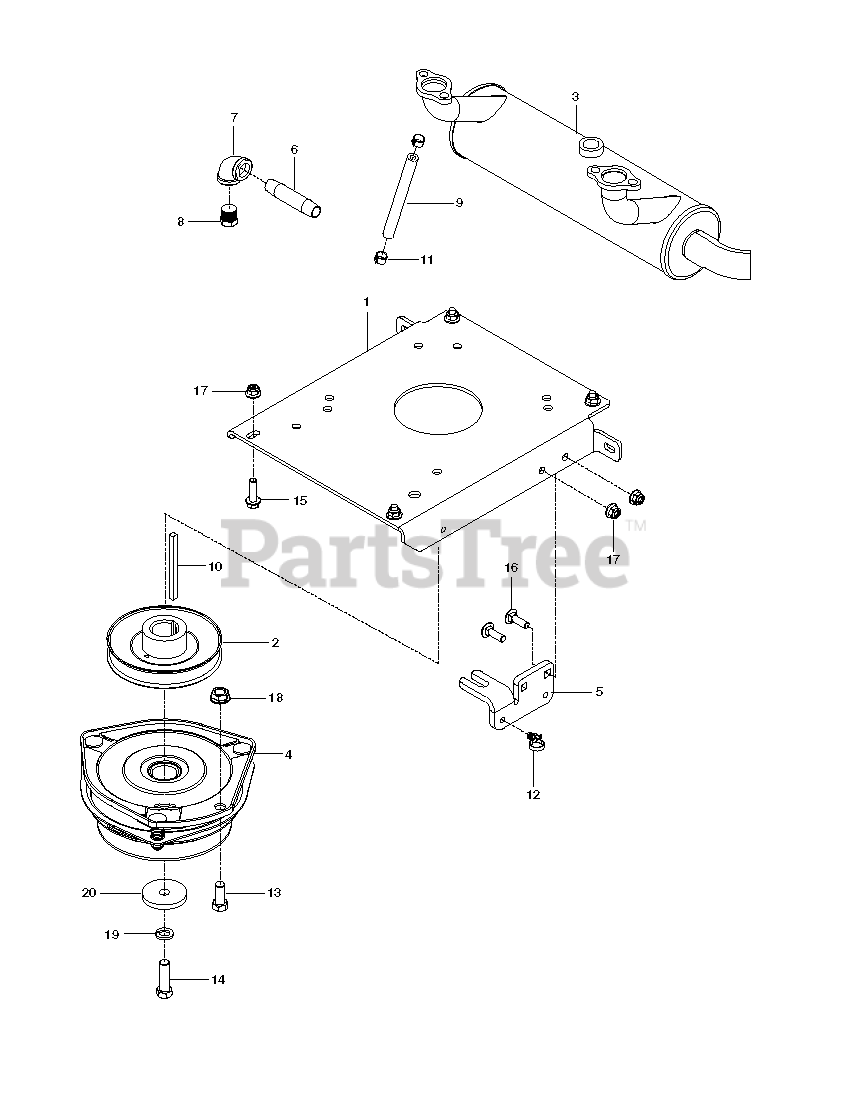

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 510004602

PLATE.ENGINE.BLACK

$133.99

$

In Stock, only 1 left!

0

2

Husqvarna 510019801

PULLEY, ENGINE

$53.99

$

In Stock, only 2 left!

0

3

Husqvarna 583901001

MUFFLER.KOH.EFI.W/O2.SENSOR

$432.99

$

Usually ships in 3-10 days

0

4

Husqvarna 525749501

CLUTCH, GT3.5

$682.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

6

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

10

Husqvarna 525749901

KEY, 1/4 SQ X 3.5

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

12

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR

$

$

Not available

15

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

19

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

20

Husqvarna 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

Husqvarna 522795601

HARNESS, KOHLER PIGTAIL

Note: NOT SHOWN

$24.99

$

Usually ships in 3-10 days

0
